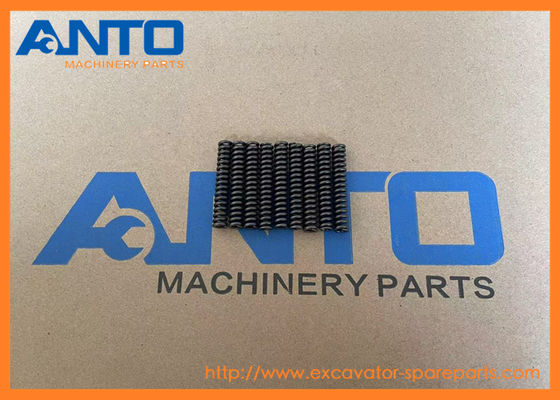

| カテゴリー: | ハインダイ 掘削機 スイングモーター | 部品名: | 春 |
|---|---|---|---|
| 部品数: | XKAY-00531 XKAY00531 | モデル: | R170W7 R170W7A R200W7 R200W7A |
| リードタイム: | すぐに出荷する | 保証: | 6/12ヶ月 |
| ハイライト: | スイングモーターの取り付け,スイングモーター HYUNDAI R170W7,XKAY-00531 ショベルスイングモーター |
||
| スペアパーツ名 | スプリング |
| 機器モデル | R170W7 R170W7A R200W7 R200W7A |
| パーツカテゴリ | HYUNDAI油圧ショベルスイングモーター |
| スペアパーツの状態 | 新品、OEM品質 |
| 注文のMOQ（PCS、SET） | 1 PCS |
| パーツの在庫状況 | 在庫あり |
| 納期 | 1～3日 |
機械的動作の制御：
エンジンのバルブの開閉を制御し、エンジンの作動サイクルの要件に従ってバルブが時間通りに開閉されるようにすることで、吸気、圧縮、動力、排気のプロセスがスムーズに進むようにすることができます。また、クラッチシステムのクラッチの係合と解放を制御して、動力のスムーズな伝達と遮断を実現するためにも使用できます。
7シリーズホイール油圧ショベル R170W7 R170W7A R200W7 R200W7A
7シリーズクローラー油圧ショベル R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R450LC7 R450LC7A R500LC7 R500LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD510LC-7
| XKAY-00026 SPRING |
| R110-7、R110-7A、R140LC-7、R140LC-7A、R140LC9V、R160LC7、R160LC7A、R180LC7、R180LC7A、R210LC7、R210LC7A、R210LC7H、R210NLC7、R210NLC7A、R215LC7、R250LC7、R250LC7A、R290LC7、R290LC7A、R290LC7H、R300LC7... |
| 71N6-21610 SPRING |
| HX180L、HX235L、R110-7、R110-7A、R1200-9、R125LCR-9A、R140LC-7、R140LC-7A、R140LC9、R140LC9A、R140LC9S、R140LC9V、R140W7、R140W7A、R140W9、R140W9A、R140W9S、R145CR9、R145CR9A、R160LC7、R160LC7A、R160L... |
| 31E9-1020 SPRING-RETURN |
| 42HDLL、HX330L、HX380L、HX430L、HX480L、HX520L、R130LC、R130LC3、R170W3、R180LC3、R200NLC3、R25Z-9A、R25Z-9AK、R25Z-9AKCA、R25Z-9AKNH、R27Z-9、R290LC、R290LC3、R290LC3H、R290LC3LL、R290LC7、R290LC7A、... |
| 71K8-03200 SPRING-GAS |
| HW140、HW210、HX140L、HX160L、HX220L、HX220NL、HX260L、HX300L、HX330L、HX380L、HX430L、HX480L、HX520L |
| ZGBH-00349 SPRING-TENSION |
| HW140、HW210、HX140L、HX160L、HX220L、HX220NL、HX260L、HX300L、HX330L、HX380L、HX430L、HX480L、HX520L |
| ZGBH-00360 SPRING-HANGER |
| HW140、HW210、HX140L、HX160L、HX220L、HX220NL、HX260L、HX300L、HX330L、HX380L、HX430L、HX480L、HX520L |
| ZGBH-00379 SPRING-AIR |
| HW140、HW210、HX140L、HX160L、HX220L、HX220NL、HX260L、HX300L、HX330L、HX380L、HX430L、HX480L、HX520L |
| ZUAC-00849 SPRING-VALVE |
| HX140L、HX160L |
| ZUAC-00851 SPRING-VALVE |
| HX140L、HX160L |
| XKAQ-01009 SPRING PIN |
| HX160L |
| 39Q7-41540 SPRING |
| HX235L、HX260L、R235LCR9A、R250LC9、R250LC9A、R260LC9S |
| 31N8-18500 SPRING-REGEN |
| R210LC9BC |
| XKAH-00127 SPRING-BRAKE |
| HX380L、R160LC7、R160LC7A、R170W7、R170W7A、R180LC7、R180LC7A、R250LC7、R250LC7A、R250LC9、R250LC9A、R260LC9S、R290LC7、R290LC7A、R290LC7H、R290LC9、R290LC9MH、R300LC7、R300LC9A、R300LC9S、R300LC9SH、... |
| XKAH-00145 SPRING |
| R160LC7、R160LC7A、R170W7、R170W7A、R180LC7、R180LC7A、R250LC7、R250LC7A、R250LC9、R250LC9A、R260LC9S、R290LC7、R290LC7A、R290LC7H、R290LC9、R290LC9MH、R300LC7、R300LC9A、R300LC9S、R300LC9SH、R305LC7、... |
| XKAH-00158 SPRING |
| R160LC7、R160LC7A、R170W7、R170W7A、R180LC7、R180LC7A、R250LC7、R250LC7A、R250LC9、R250LC9A、R260LC9S、R290LC7、R290LC7A、R290LC7H、R290LC9、R300LC7、R305LC7 |
| Pos. | 部品番号 | 数量 | 部品名 | コメント |
| N*. | @ | [1] | SWING MOTOR ASSY | |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| 1 | XKAY-00520 | [1] | BODY | 31N6-10210-01 |
| 1 | XKAY-00637 | [1] | BODY | 31N6-10210-02 |
| 1 | XKAY-02096 | [1] | BODY | 31N6-10210-02 |
| K2. | XKAY-00521 | [1] | SEAL-OIL | |
| 3 | XKAY-00522 | [1] | BEARING-ROLLER | |
| 4 | XKAY-00523 | [1] | RING-SNAP | |
| 5 | XKAY-00524 | [1] | SHAFT | |
| 6 | XKAY-00525 | [1] | BUSHING | |
| 7 | XKAY-00526 | [1] | RING-STOP | |
| 8 | XKAY-00286 | [1] | PIN | 31N6-10210 |
| 8 | XKAY-00625 | [1] | PIN | 31N6-10210-01 |
| 9 | XKAY-00527 | [1] | PLATE-SHOE | |
| A. | XKAY-00528 | [1] | ROTARY KIT | 31N6-10210-01 |
| A. | XKAY-00635 | [1] | ROTARY KIT | 31N6-10210-02 |
| A-A. | XKAY-00529 | [1] | CYLINDER BLOCK KIT | 31N6-10210-01 |
| A-A. | XKAY-00634 | [1] | CYLINDER BLOCK KIT | 31N6-10210-02 |
| 10 | XKAY-00530 | [1] | CYLINDER BLOCK | 31N6-10210-01 |
| 10 | XKAY-00633 | [1] | BLOCK-CYLINDER | 31N6-10210-02 |
| 11 | XKAY-00531 | [9] | SPRING | |
| A-B. | XKAY-00532 | [1] | RETAINER KIT | |
| 12 | XKAY-00533 | [1] | GUIDE-BALL | |
| 13 | XKAY-00534 | [1] | PLATE-SET | |
| A-C. | XKAY-00535 | [1] | PISTON KIT | |
| N14. | XKAY-00536 | [9] | PISTON ASSY | |
| 15 | XKAY-00537 | [3] | PLATE-FRICTION | |
| 16 | XKAY-00538 | [3] | PLATE | |
| 17 | XKAY-00539 | [1] | PISTON-BRAKE | |
| 17 | XKAY-00631 | [1] | PISTON-BRAKE | 31N6-10210-01 |
| 17 | XKAY-00632 | [1] | PISTON-BRAKE | 31N6-10210-02 |
| K18. | XKAY-00468 | [1] | O-RING | |
| K19. | XKAY-00540 | [2] | O-RING | |
| 20 | XKAY-00541 | [20] | SPRING | |
| 21 | XKAY-00542 | [1] | COVER-REAR | 31N6-10210 |
| 21 | XKAY-00630 | [1] | COVER-REAR | 31N6-10210-01 |
| 22 | XKAY-00543 | [1] | BEARING-NEEDLE | |
| 23 | XKAY-00382 | [2] | PIN | |
| 24 | XKAY-00544 | [1] | PLATE-VALVE | |
| 27 | XKAY-00546 | [4] | BOLT-WRENCH | |
| 28 | XKAY-00309 | [2] | PLUG | |
| K29. | XKAY-00547 | [2] | RING-BACK UP | |
| K30. | XKAY-00310 | [2] | O-RING | |
| 31 | XKAY-00311 | [2] | SPRING | |
| 32 | XKAY-00312 | [2] | CHECK | |
| 33 | XKAY-00313 | [2] | RELIEF VALVE ASSY | |
| 34 | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS | |
| 35 | XKAY-00315 | [1] | TIME DELAY VALVE ASSY | |
| 36 | XKAY-00149 | [3] | BOLT-WRENCH | |
| 37 | XKAY-00316 | [1] | PLUG | |
| K38. | XKAY-00151 | [3] | O-RING | |
| 39 | XKAY-00140 | [1] | PLUG | |
| 41 | XKAY-00548 | [1] | PLUG | |
| N42. | XKAY-00549 | [1] | NAME PLATE | |
| 43 | XKAY-00277 | [2] | RIVET | |
| 44 | XKAY-01986 | [1] | GAUGE-LEVEL | |
| 45 | XKAY-00551 | [1] | FLANGE | |
| K46. | XKAY-00552 | [2] | O-RING | |
| 47 | XKAY-00322 | [2] | PLUG | |
| K48. | XKAY-00324 | [2] | O-RING | |
| K49. | XKAY-00247 | [2] | O-RING | |
| K50. | XKAY-00248 | [2] | RING-BACK UP | |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4111 |
| K. | XKAY-00553 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1. 保証期間：到着日から3ヶ月の保証。より高い価格レベルで6ヶ月の保証期間を提供できます。
2. 保証の種類：品質に問題のある部品の交換。
3. 以下の場合は保証が無効になります
* 顧客が注文に関する誤った情報を提供した場合
* 不可抗力
* 誤った設置と操作
* 不適切な在庫とメンテナンスによる錆
* ギアコンポーネント用の頑丈なカートンまたは木箱。ギアボックスアセンブリ用の木箱
* 配送方法：海上、地元の国際空港への航空便、DHL TNT FEDEXなどの速達便
