商品の詳細:
お支払配送条件:
|
| カテゴリ: | フロントアクスル | 機械モデル: | HD985-5 |
|---|---|---|---|
| 製品名: | ブッシング | 応用: | ダンプトラック |
| 部品番号: | 561-50-6A221 569-50-11220 | パッキング: | 標準輸出カートン |
| ハイライト: | Komatsu dump truck bushing,HD985-5 spare parts fitting,excavator bushing with warranty |
||
| Name | Bushing |
| Parts No | 561-50-6A221 569-50-11220 |
| Machine Model | HD985 |
| Category | Front Axle |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |

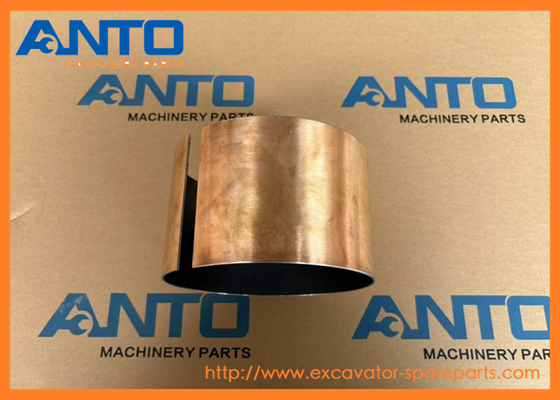

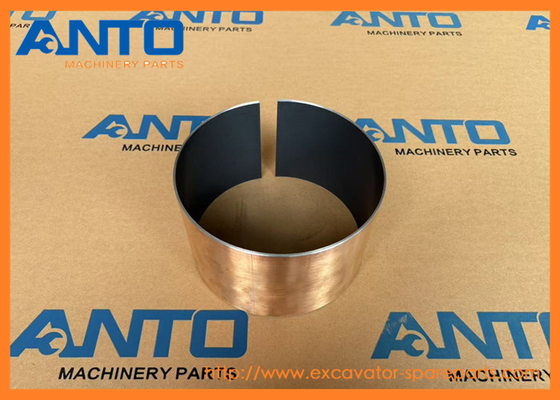

Bushings are vital components in Komatsu equipment. The 561-50-6A221 bushing is mainly used to offer support between moving parts, diminish friction, and lessen wear and tear, ensuring their smooth operation. Besides, it can also absorb shock and vibrations produced during equipment operation, thereby boosting the stability of the relevant assemblies and extending the components' service lives.
DUMP TRUCKS HD985 Komatsu
| 569-50-11340 BUSHING |
| 330M, HD460, HD465, HD785, HD985 |
| 419-43-17590 BUSHING |
| 532, GD755, GD825A, HD325, HD405, HD785, HD985, HM350, HM400, WA200, WA250, WA300, WA320, WA800, WA800L, WA900, WA900L, WD900 |
| 561-50-6A220 BUSHING |
| HD785, HD985 |
| 281-40-12390 BUSHING |
| 330M, HD1200, HD180, HD200, HD200D, HD205, HD255, HD320, HD325, HD405, HD460, HD465, HD605, HD680, HD780, HD785, HD985, WS16, WS23S |
| 561-40-61160 BUSHING |
| 330M, HD785, HD985 |
| 07137-05008 BUSHING |
| D65EX, D65PX, D65WX, HD785 |
| 07177-07030 BUSHING |
| 330M, 512, 515, 518, 520B, 530, 530B, 558, 560B, 568, BP500, BR300S, BR350JG, BR380JG, HB205, HB215, HD785, PC160, PC200, PC210, PC220, PC228, PC228US, PC240 |
| LI90554 BUSHING ASS'Y,PLUNGER |
| HD785, HD985 |
| LI10461 BUSHING |
| HD785, HD985 |
| 202-98-09110 BUSHING,REGULAR |
| PC100, PC120 |
| 568-22-11250 BUSHING |
| HD680, HD780, HD785 |
| 6210-49-5520 BUSHING |
| EGS1000, EGS1050, EGS1200, HD785, SA6D140, SA6D140E, SAA12V140Z, SAA6D140E, SDA6D140E, WA800, WA900 |
| 154-922-7420 BUSHING |
| D85EX |
| 415-70-11810 BUSHING |
| WA100, WA100M, WA100SS, WA100SSS, WA50, WA70, WA80, WR8 |
| 209-72-16860 BUSHING |
| PC650 |
| 20N-62-21240 BUSHING |
| PC10, PC40 |
| 21K-70-11370 BUSHING |
| PC150 |
| 707-76-70100 BUSHING |
| PW200, PW210 |
| 111-30-11430 BUSHING |
| D30S |
| 416-839-2000 BUSHING |
| WA100, WA100SS, WA100SSS |
| 6745-61-8110 BUSHING, REDUCING PIPE |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC360, PC390, PC390LL, SAA6D114E, WA430 |
| Pos. | Part No | Qty | Parts name | Comments |
| 561-50-6FT02 | [1] | SUSPENSION ASS'Y,FRONT Komatsu China | ||
| ["SN: 1097-UP"] analogs:["561506FT01", "561506FT00", "561506F501", "561506F500"] |$12. | ||||
| 561-50-6FT01 | [1] | SUSPENSION ASS'Y,FRONT Komatsu China | ||
| ["SN: 1082-1096"] analogs:["561506FT02", "561506FT00", "561506F501", "561506F500"] |$13. | ||||
| 561-50-6FT00 | [1] | SUSPENSION ASS'Y,FRONT Komatsu China | ||
| ["SN: 1071-1081"] analogs:["561506FT01", "561506FT02", "561506F501", "561506F500"] |$14. | ||||
| 561-50-6F501 | [1] | SUSPENSION ASS'Y,FRONT Komatsu China | ||
| ["SN: 1053-1070"] analogs:["561506FT01", "561506FT02", "561506FT00", "561506F500"] |$15. | ||||
| 1. | 561-88-66501 | [1] | CYLINDER Komatsu China | |
| ["SN: 1053-UP"] | ||||
| 2. | 561-50-6A330 | [1] | ROD Komatsu China | |
| ["SN: 1053-UP"] | ||||
| 3. | 561-50-61412 | [1] | STOPPER Komatsu | 0.4 kg. |
| ["SN: 1071-UP"] analogs:["5615061411"] | ||||
| 3. | 561-50-61411 | [1] | STOPPER Komatsu | 0.4 kg. |
| ["SN: 1053-1070"] analogs:["5615061412"] | ||||
| 4. | 561-50-65140 | [1] | FLANGE Komatsu | 33 kg. |
| ["SN: 1071-UP"] analogs:["5615061143"] | ||||
| 4. | 561-50-61143 | [1] | FLANGE Komatsu | 33 kg. |
| ["SN: 1021-1070"] analogs:["5615065140"] | ||||
| 5. | 07043-00108 | [1] | PLUG Komatsu | 0.005 kg. |
| ["SN: 1021-UP"] analogs:["0704320108", "0704350108", "820510607", "YM23871010000", "R0704300108"] | ||||
| 5A. | 561-50-6A390 | [1] | SPACER Komatsu | 0.18 kg. |
| ["SN: 1071-UP"] | ||||
| 6. | 569-50-11131 | [1] | RETAINER Komatsu | 4.5 kg. |
| ["SN: 1053-UP"] | ||||
| 7. | 07000-15210 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 1053-UP"] analogs:["0700005210"] | ||||
| 8. | 07001-05210 | [1] | RING Komatsu | 0.04 kg. |
| ["SN: 1053-UP"] | ||||
| 9. | 01011-81205 | [15] | BOLT Komatsu | 0.108 kg. |
| ["SN: 1071-UP"] | ||||
| 9. | 01010-81290 | [15] | BOLT Komatsu | 0.095 kg. |
| ["SN: 1053-1070"] analogs:["0101051290"] | ||||
| 10. | 01643-51232 | [15] | WASHER Komatsu | 0.024 kg. |
| ["SN: 1053-UP"] | ||||
| 11. | 569-50-11340 | [1] | BUSHING Komatsu | 0.025 kg. |
| ["SN: 1053-UP"] | ||||
| 12. | 569-50-11271 | [1] | RING Komatsu | 0.65 kg. |
| ["SN: 1053-UP"] | ||||
| 13. | 561-50-6A221 | [1] | BUSHING Komatsu | 1.562 kg. |
| ["SN: 1097-UP"] analogs:["5695011220"] | ||||
| 13. | 561-50-6A220 | [1] | BUSHING Komatsu | 1.562 kg. |
| ["SN: 1071-1096"] analogs:["5695011220", "561506A221"] | ||||
| 13. | 569-50-11220 | [1] | BUSHING Komatsu | 1.562 kg. |
| ["SN: 1053-1070"] analogs:["561506A221"] | ||||
| 13A. | 707-51-18650 | [1] | RING,BUFFER Komatsu | 0.022 kg. |
| ["SN: 1082-UP"] | ||||
| 13A. | 707-51-18640 | [1] | RING,BUFFER Komatsu China | 0.02 kg. |
| ["SN: 1071-1081"] | ||||
| 14. | 569-50-82410 | [1] | U-PACKING Komatsu | 0.15 kg. |
| ["SN: 1082-UP"] analogs:["5695011230"] | ||||
| 14. | 569-50-11230 | [1] | U-PACKING Komatsu | 0.15 kg. |
| ["SN: 1053-1081"] analogs:["5695082410"] | ||||
| 15. | 561-50-61370 | [1] | SEAL Komatsu | 0.22 kg. |
| ["SN: 1053-UP"] | ||||
| 16. | 07000-12070 | [2] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 1053-UP"] analogs:["0700002070"] | ||||
| 17. | 569-52-41920 | [1] | BUSHING Komatsu | 2.4 kg. |
| ["SN: 1053-UP"] | ||||
| 18. | 04065-01104 | [2] | RING,SNAP Komatsu | 0.073 kg. |
| ["SN: 1053-UP"] analogs:["0406501140", "R0406501104"] | ||||
| 19. | 569-50-11141 | [1] | PLATE Komatsu China | |
| ["SN: 1053-UP"] analogs:["5695011140"] | ||||
| 20. | 561-50-61321 | [1] | TUBE Komatsu China | |
| ["SN: 1053-UP"] | ||||
| 21. | 01010-81225 | [2] | BOLT Komatsu | 0.074 kg. |
| ["SN: 1053-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 23. | 07000-13045 | [2] | O-RING Komatsu China | 0.002 kg. |
| ["SN: 1053-UP"] analogs:["0700003045"] | ||||
| 24. | 07001-03045 | [2] | RING Komatsu | 0.002 kg. |
| ["SN: 1053-UP"] | ||||
| 566-50-11301 | [1] | VALVE ASS'Y Komatsu | 0.12 kg. | |
| ["SN: 1053-UP"] |$58. | ||||
| 25 | 566-50-11320 | [1] | VALVE Komatsu | 0.1 kg. |
| ["SN: 1053-UP"] | ||||
| 26 | 281-50-11721 | [1] | CORE Komatsu | 0.01 kg. |
| ["SN: 1053-UP"] | ||||
| 27 | 566-50-11340 | [1] | CAP Komatsu | 0.02 kg. |
| ["SN: 1053-UP"] | ||||
| 28 | 07000-11006 | [1] | O-RING Komatsu | 0.01 kg. |
| ["SN: 1053-UP"] analogs:["0700001006"] | ||||
| 29. | 566-50-21260 | [1] | VALVE Komatsu | 0.12 kg. |
| ["SN: 1053-UP"] | ||||
| 30. | 566-50-11350 | [3] | PACKING Komatsu | 0.008 kg. |
| ["SN: 1053-UP"] | ||||
| 31. | 566-50-41310 | [1] | PLATE Komatsu | 0.01 kg. |
| ["SN: 1053-UP"] | ||||
| 32. | 561-86-67700 | [1] | VALVE ASS'Y Komatsu | 0.26 kg. |
| ["SN: 1053-UP"] | ||||
| 561-50-63050 | [1] | SPRING ASS'Y Komatsu | 13.9 kg. | |
| ["SN: 1053-UP"] |$68. | ||||
| 33 | 569-50-63212 | [1] | BODY Komatsu China | |
| ["SN: 1053-UP"] | ||||
| 34 | 561-50-63331 | [1] | PLATE Komatsu China | |
| ["SN: 1053-UP"] | ||||
| 35 | 569-50-61240 | [1] | PLATE Komatsu | 0.01 kg. |
| ["SN: 1053-UP"] | ||||
| 36 | 569-50-61250 | [1] | PLATE Komatsu | 0.02 kg. |
| ["SN: 1053-UP"] | ||||
| 37 | 569-50-61260 | [1] | PLATE Komatsu | 0.039 kg. |
| ["SN: 1053-UP"] | ||||
| 38 | 569-50-61270 | [1] | PLATE Komatsu | 0.22 kg. |
| ["SN: 1053-UP"] | ||||
| 39 | 569-50-61340 | [1] | PLATE Komatsu | 0.01 kg. |
| ["SN: 1053-UP"] | ||||
| 40 | 569-50-61350 | [1] | PLATE Komatsu | 0.012 kg. |
| ["SN: 1053-UP"] | ||||
| 41 | 569-50-61360 | [1] | PLATE Komatsu | 0.013 kg. |
| ["SN: 1053-UP"] | ||||
| 42 | 569-50-61370 | [1] | PLATE Komatsu | 0.015 kg. |
| ["SN: 1053-UP"] | ||||
| 43 | 01090-51045 | [1] | BOLT Komatsu | 0.05 kg. |
| ["SN: 1053-UP"] | ||||
| 44 | 426-09-11160 | [1] | NUT Komatsu | 0.011 kg. |
| ["SN: 1053-UP"] analogs:["0159701009"] | ||||
| 45 | 561-50-61290 | [2] | WASHER Komatsu China | |
| ["SN: 1053-UP"] | ||||
| 46 | 04020-00514 | [2] | PIN Komatsu | 0.002 kg. |
| ["SN: 1053-UP"] | ||||
| 47 | 01010-81030 | [4] | BOLT Komatsu OEM | 0.03 kg. |
| ["SN: 1053-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 48 | 01643-51032 | [4] | WASHER Komatsu | 0.17 kg. |
| ["SN: 1053-UP"] analogs:["R0164351032"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
