商品の詳細:
お支払配送条件:
|
| カテゴリ: | トラベルモーターと最終ドライブ、内側の部品 | 機械モデル: | PC270 PC290 PC300 PC300HD PC308 PC340 |
|---|---|---|---|
| 製品名: | 軸 | 応用: | 掘削機 |
| 部品番号: | 708-8H-32120 7088H32120 | パッキング: | 標準輸出カートン |
| ハイライト: | KOMATSU excavator shaft,PC270LC-8 spare parts,PC290LC-10 replacement shaft |
||
| Name | Shaft |
| Parts No | 708-8H-32120 7088H32120 |
| Machine Model | PC270 PC290 PC300 PC300HD PC308 PC340 PC350 PC360 PC380 |
| Category | Travel Motor And Final Drive, Inner Parts, Travel Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |

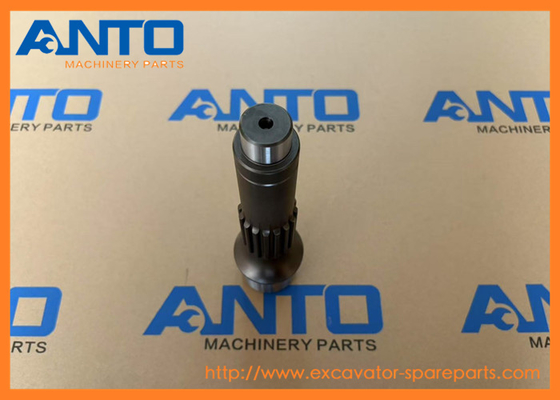

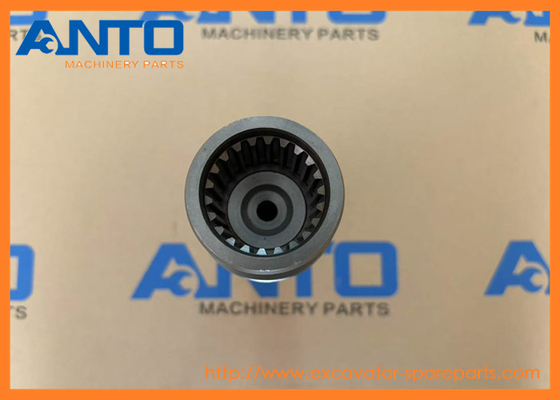

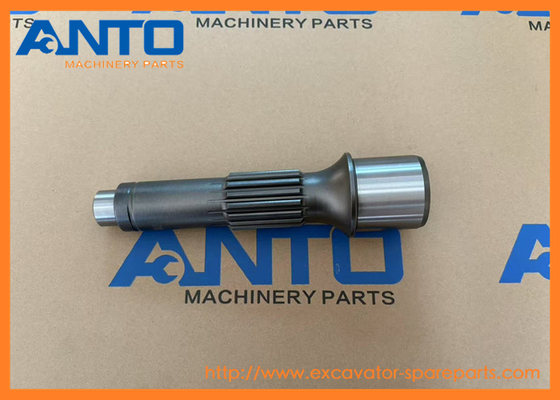

The shaft, 708-8H-32120, is a power-transmission or load-bearing component. In excavators, it's mainly used to transfer torque within transmission devices or auxiliary systems to ensure parts like motors, gears, and wheels rotate steadily and function in harmony, which guarantees the smooth operation of relevant mechanisms, such as the travel or swing mechanism.
EXCAVATORS PC270 PC290 PC300 PC300HD PC308 PC340 PC350 PC360 PC380 Komatsu
| 207-27-71352 SHAFT |
| AIR, PC220LL, PC270, PC290, PC300, PC300HD, PC308, PC340, PC350, PC360, PRESSURE, RAIN |
| 207-26-71160 SHAFT |
| PC270LL, PC300, PC300HD, PC340, PC350, PC360, PC380 |
| 706-88-40660 SHAFT, DRIVE |
| BR200S, BR500JG, CD110R, PC300, PC300HD, PC300LL, PC380, PC400, PC400ST, PC450 |
| 702-16-73620 SHAFT |
| PC118MR, PC160, PC190, PC200, PC200LL, PC210, PC230NHD, PC240, PC290, PC300, PRESSURE, RAIN |
| 708-2L-32170 SHAFT,REAR |
| HB205, HB215, PC200, PC200LL, PC220, PC228, PC228US, PC240, PC270, PC290 |
| 708-2G-12640 SHAFT |
| PC300, PC350, PC360, PRESSURE, RAIN |
| 207-26-62180 SHAFT |
| AIR, PC220LL, PC300, PC300HD, PC300SC, PC340, PC350, PC350HD, PC360, PRESSURE, RAIN |
| 206-26-72120 SHAFT |
| PC270, PC290, PC308 |
| 206-26-73210 SHAFT |
| PC270, PC290, PC308 |
| 6221-71-3410 SHAFT,DRIVE |
| DCA, EGS160, S6D108, S6D108E, SA6D108, SA6D108E, SAA6D108E, WA380 |
| 419-22-32410 SHAFT |
| FRONT, WA320, WA320L, WA320PT, WA320PZ |
| 362-15-00140 SHAFT ASS'Y |
| WA30 |
| 395184012 Shaft |
| WB91R, WB93R, WB97R |
| 1239 809 H1 SHAFT, ACCESSORY DRIVE |
| KOMATSU |
| 1239 231 H1 SHAFT,THROTTLE |
| KOMATSU |
| 711-20-31350 SHAFT |
| HD325, HD405, WS23S |
| 569-15-01130 SHAFT ASS'Y |
| HD465, HD605 |
| YM158601-61390 SHAFT |
| 3D82AE, 3D84E, 4D88E, S3D84, WB93R, WB97R, WB97S |
| 130-961-2520 SHAFT |
| D40AM, D50A, D50P |
| 561-15-62510 SHAFT |
| HD325, HD465, HD605 |
| YMR000874 SHAFT |
| PC05, PC07 |
| Pos. | Part No | Qty | Parts name | Comments |
| 207-27-00471 | [2] | Final Drive Assembly Komatsu | 670 kg. | |
| ["SN: 15001-UP"] analogs:["2072700470"] |$0. | ||||
| 708-8H-00351 | [1] | Motor Assembly Komatsu | 164 kg. | |
| ["SN: 15015-UP"] analogs:["7088H00350"] |$1. | ||||
| 708-8H-00350 | [1] | Motor Assembly Komatsu | 164 kg. | |
| ["SN: 15001-15014"] |$2. | ||||
| 1 | 708-8H-32120 | [1] | Shaft Komatsu | 2.66 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 2 | 708-8H-32150 | [1] | Bearing Komatsu | 0.57 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 3 | 708-8H-32170 | [1] | Bearing Komatsu | 0.34 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 4 | 708-8H-05050 | [1] | Spacer Kit Komatsu | 0.105 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 5 | 708-1F-12281 | [1] | Seal, Oil Komatsu | 0.1 kg. |
| ["SN: 15001-UP"] analogs:["7081F12280"] | ||||
| 6 | 708-8H-32160 | [1] | Spacer Komatsu | 0.05 kg. |
| ["SN: 15001-UP"] | ||||
| 7 | 04065-07825 | [1] | Ring, Snap Komatsu | 0.022 kg. |
| ["SN: 15001-UP"] | ||||
| 708-8H-04810 | [1] | Cylinder Block Assembly Komatsu | 7.44 kg. | |
| ["SN: 15001-UP", "SCC: C2"] |$17. | ||||
| 10 | 708-18-13230 | [1] | Pin Komatsu | 0.01 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 11 | 708-8H-33360 | [3] | Pin Komatsu | 0.01 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 12 | 708-8H-33141 | [2] | Spacer Komatsu | 0.06 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 13 | 708-8H-33750 | [1] | Spring Komatsu China | |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 14 | 04065-06020 | [1] | Ring, Snap Komatsu | 0.011 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 15 | 708-8H-33512 | [1] | Guide, Retainer Komatsu | 0.23 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 16 | 708-8H-33340 | [1] | Retainer, Shoe Komatsu | 0.44 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 17 | 708-8H-33650 | [9] | Piston Subassembly Komatsu | 0.302 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 18 | 708-8H-33482 | [1] | Cam, Rocker Komatsu China | |
| ["SN: 15015-UP", "SCC: C2"] | ||||
| 18 | 708-8H-33481 | [1] | Cam, Rocker Komatsu China | |
| ["SN: 15001-15014", "SCC: C2"] | ||||
| 19 | 04260-02857 | [2] | Ball, Retainer Komatsu | 0.1 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 20 | 708-8H-34310 | [1] | Piston Komatsu China | |
| ["SN: 15015-UP"] | ||||
| 20 | 708-8H-34190 | [1] | Piston Komatsu China | |
| ["SN: 15001-15014"] analogs:["7088H34143"] | ||||
| 21 | 708-8H-34290 | [1] | Spring Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 22 | 708-8H-34151 | [1] | Spring Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 23 | 708-8K-14210 | [1] | Plug Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 24 | 07002-13334 | [1] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 15001-UP"] analogs:["0700203334"] | ||||
| 25 | 708-8H-35130 | [4] | Plate Komatsu | 0.16 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 26 | 708-8H-35180 | [3] | Disc Komatsu | 0.36 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 27 | 708-8H-35141 | [1] | Piston, Brake Komatsu China | |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 28 | 07000-15175 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 15001-UP", "SCC: C2"] analogs:["0700005175"] | ||||
| 29 | 07001-05175 | [1] | Ring, Back-up Komatsu China | |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 30 | 07000-15195 | [1] | O-ring Komatsu China | 0.038 kg. |
| ["SN: 15001-UP", "SCC: C2"] analogs:["0700005195"] | ||||
| 31 | 07001-05195 | [1] | Ring, Back-up Komatsu | 0.016 kg. |
| ["SN: 15001-UP", "SCC: C2"] | ||||
| 32 | 708-8H-35150 | [1] | Spring Komatsu China | |
| ["SN: 15001-UP", "SCC: C2"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
