商品の詳細:
お支払配送条件:
|
| カテゴリ: | トークコンバーターとトランスミッション | 機械モデル: | WA400 WA420 WA450 WA450L WA470 |
|---|---|---|---|
| 応用: | ホイールローダー | 製品名: | シール |
| 部品番号: | 714-07-18541 714-07-18540 | パッキング: | 標準輸出カートン |
| ハイライト: | Komatsu wheel loader seal,WA500-6 spare parts seal,WA600-6 wheel loader seal |
||

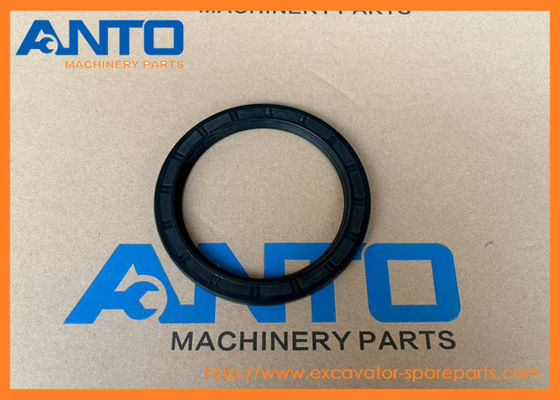

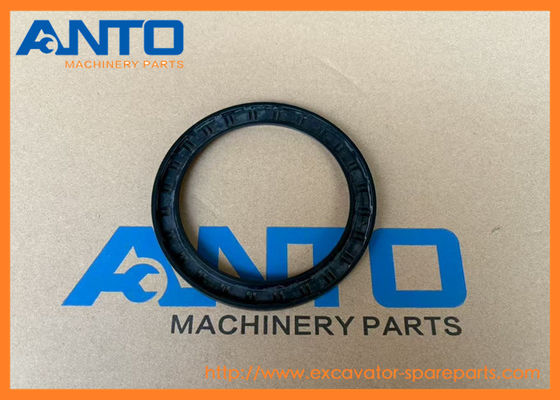

| Name | Seal |
| Parts No | 714-07-18541 714-07-18540 |
| Machine Model | WA400 WA420 WA450 WA450L WA470 WA480 WA500 WA600 |
| Category | Torque Converter And Transmission |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Function
1.Dust Seal (714‑07‑18541): Shields against dirt, debris, and moisture entering the torque converter or transmission, reducing wear and extending component life.
2.O‑Ring or Similar (714‑07‑18540): Creates a tight seal between mating parts, preventing fluid leaks and maintaining hydraulic or lubrication integrity.
COMPACTORS WF450 WF450T
GRADERS GD755 GH320
WHEEL DOZERS WD600
WHEEL LOADERS WA400 WA420 WA450 WA450L WA470 WA480 WA500 WA600 Komatsu
| 144-63-95170 SEAL,DUST (KIT) |
| 558, 560B, 568, BM020C, CD110R, D40F, D41A, D41E, D41E6T, D41P, D41PF, D50A, D50P, D50PL, D53A, D53P, D57S, D58E, D58P, D60A, D60E, D60P, D60PL, D61E, PC130, PC160, PC190, WA250, WA250PZ |
| 6732-81-8860 SEAL, O-RING |
| D51EX/PX, GD750A, HD785, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC400, PW180, PW200, PW220, S4D102E, S6D102E, SA6D102E, SA6D170E, SAA4D1... |
| 195-63-94170 SEAL, DUST (KIT) |
| 530, 530B, 538, 540, 540B, D135A, D150A, D155A, D155AX, D275A, HD325, HD405, HM400, PC160, PC190, PC200, PC220, PC240, PC290, PC800, WA380, WA380Z, WA420 |
| 07145-00090 SEAL, DUST (KIT) |
| PC220, PC240, PC290, PC300, PC350 |
| 6736-39-1140 SEAL KIT, REAR |
| 150A/FA, 538, 542, 830,, 850B, 870B, D32E, D38E, D39E, D51EX/PX, Engine, GD530A/AW, GD650A, PC200, PC200LL, PC220, PC220LL, PC250, PC270, PC300, PC300HD, PC350, PC350HD, PC360, PW160, PW200, PW220, S6... |
| 07012-00085 SEAL |
| 10, 538, D20A, D20P, D20S, D60A, D60P, D60PL, D60S, D70, D70LE, DWC020, DWC20, FD20, FD20H, FD20J/25J, FD30, FD30H, FD30J, FG20, FG20H, FG30, FG30H, GC380, GC380F, GD28AC, GD300A, GD405A, GD500R, GD50... |
| 07145-00075 SEAL,DUST |
| 558, 568, BC100, BP500, CS360, D30S, D40F, D57S, D60E, D60P, D60S, D61E, D61EX, D61EXI, D63E, D65A, D65E, D65EX, D65WX, D85EX, D85MS, D85PX, DRAWBAR,, GD555, GD655, GD675, GD755, KOMTRAX, PC20MR, WA32... |
| 07012-00080 SEAL,OIL |
| 510C, 520C/CH, BR100J, BR100JG, BR120T, BR200J, BR200R, BR210JG, BR250RG, BR300J, BR310JG, BR350JG, BZ120, BZ210, D355C, D41E, D41P, D55S, D57S, D58E, D58P, D70, D70LE, FB10/14EX, FB10/14EXF, FB15/18E... |
| 566-09-31161 SEAL,OIL |
| HD325, HD405, HYDRAULIC, WA500, WA600, WD600 |
| 714-07-18530 SEAL,(F4350-55A0 -33 ) |
| WA400, WA420, WA450, WA450L, WA470, WF450, WF450T |
| 421-09-11350 SEAL,DUST |
| AIR, FRONT, HYDRAULIC, WA380, WA430, WA470, WA480, WA500 |
| 07017-10016 SEAL,OIL |
| HM250, HM300, HM400, WA600, WA800, WA900, WD600 |
| 416-09-11130 SEAL,DUST |
| GD555, GD655, GD675, WA100, WA150, WA150PZ, WA470, WA480 |
| Pos. | Part No | Qty | Parts name | Comments |
| 426-15-41002 | [1] | Transmission Assembly Komatsu | 1290 kg. | |
| ["SN: 55004-UP"] analogs:["4261340001", "4261541001", "4261340002"] |$0. | ||||
| 1. | 426-15-43171 | [1] | Cage Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 2. | 07000-75220 | [1] | O-ring, (Kit : K02) Komatsu China | 0.03 kg. |
| ["SN: 55004-UP"] analogs:["0700065220"] | ||||
| 3. | 01010-81235 | [6] | Bolt Komatsu | 0.048 kg. |
| ["SN: 55004-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 4. | 01643-31232 | [6] | Washer Komatsu | 0.027 kg. |
| ["SN: 55004-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 5. | 426-15-43340 | [1] | Bearing Komatsu | 9.732 kg. |
| ["SN: 55004-UP"] analogs:["4261513350"] | ||||
| 6. | 426-15-43160 | [1] | Cover Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 7. | 07000-75180 | [1] | O-ring, (Kit : K02) Komatsu | 0.02 kg. |
| ["SN: 55004-UP"] | ||||
| 8. | 07012-50125 | [1] | Seal, Oil, (Kit : K02) Komatsu | 0.142 kg. |
| ["SN: 55004-UP"] | ||||
| 9. | 772-19-14280 | [1] | Seal, Dust, (Kit : K02) Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 10. | 426-15-00480 | [1] | Shim Assembly, (Kit : K02) Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 10 | 426-15-43571 | [6] | Shim, T=0.15mm Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 10 | 426-15-43580 | [6] | Shim, T=0.2mm Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 10 | 426-15-43590 | [6] | Shim, T=0.5mm Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 11. | 01010-81030 | [4] | Bolt Komatsu OEM | 0.03 kg. |
| ["SN: 55004-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 12. | 01643-31032 | [4] | Washer Komatsu | 0.054 kg. |
| ["SN: 55004-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 13. | 426-15-43231 | [1] | Gear Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 14. | 426-15-43142 | [1] | Baffle Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 17. | 07043-70211 | [3] | Plug Komatsu | 0.012 kg. |
| ["SN: 55004-UP"] analogs:["YM23871020000"] | ||||
| 18. | 203-54-56970 | [3] | Washer Komatsu | 0.01 kg. |
| ["SN: 55004-UP"] | ||||
| 19. | 426-15-43322 | [1] | Shaft Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 20. | 426-15-43282 | [1] | Coupling Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 21. | 07000-75075 | [2] | O-ring, (Kit : K02) Komatsu | 0.011 kg. |
| ["SN: 55004-UP"] | ||||
| 22. | 426-15-13260 | [2] | Holder Komatsu | 0.94 kg. |
| ["SN: 55004-UP"] | ||||
| 23. | 01051-52420 | [2] | Bolt Komatsu | 0.531 kg. |
| ["SN: 55004-UP"] | ||||
| 24. | 01643-32460 | [2] | Washer Komatsu China | 0.063 kg. |
| ["SN: 55004-UP"] analogs:["R0164332460"] | ||||
| 25. | 426-15-43181 | [1] | Cover Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 26. | 07012-50105 | [1] | Seal, Oil, (Kit : K02) Komatsu China | 0.11 kg. |
| ["SN: 55004-UP"] analogs:["0701210105", "1751322760"] | ||||
| 27. | 714-07-18541 | [1] | Seal, Dust, (Kit : K02) Komatsu | 0.2 kg. |
| ["SN: 55004-UP"] analogs:["7140718540"] | ||||
| 28. | 07000-75155 | [1] | O-ring, (Kit : K02) Komatsu China | 0.018 kg. |
| ["SN: 55004-UP"] analogs:["0700065155"] | ||||
| 31. | 426-15-43261 | [1] | Coupling Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 32. | 426-15-48321 | [1] | Drum Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 33. | 195-15-13380 | [1] | Ring, Snap Komatsu | 0.32 kg. |
| ["SN: 55004-UP"] | ||||
| 34. | 426-15-43370 | [1] | Plate Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 35. | 426-15-43390 | [1] | Plate Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 36. | 01010-81020 | [4] | Bolt Komatsu | 0.161 kg. |
| ["SN: 55004-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 38. | 42C-13-17270 | [1] | Ring, Snap Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 39. | 42C-32-12680 | [8] | Plate Komatsu | 1.28 kg. |
| ["SN: 55004-UP"] | ||||
| 40. | 42C-32-18720 | [7] | Spring Komatsu | 0.24 kg. |
| ["SN: 55004-UP"] | ||||
| 41. | 42C-13-17240 | [7] | Disc Komatsu | 2.85 kg. |
| ["SN: 55004-UP"] | ||||
| 42. | 426-15-43360 | [1] | Piston Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 43. | 232-15-19220 | [1] | Seal Ring, (Kit : K02) Komatsu | 0.019 kg. |
| ["SN: 55004-UP"] | ||||
| 44. | 568-15-12850 | [1] | Seal Ring Komatsu | 0.017 kg. |
| ["SN: 55004-UP"] | ||||
| 45. | 426-15-48692 | [1] | Hub Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 46. | 426-15-43353 | [1] | Spacer Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 47. | 426-15-49310 | [1] | Bearing Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 48. | 714-07-27161 | [18] | Spring Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 49. | 714-07-27151 | [18] | Spring Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 50. | 426-15-43291 | [1] | Housing Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 51. | 04020-01842 | [2] | Pin, Dowel Komatsu | 0.09 kg. |
| ["SN: 55004-UP"] | ||||
| 52. | 07000-75360 | [2] | O-ring, (Kit : K02) Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 53. | 01252-41245 | [4] | Bolt, Hexagon Socket Head Komatsu | 0.057 kg. |
| ["SN: 55004-UP"] | ||||
| 55. | 01010-81255 | [12] | Bolt Komatsu | 0.065 kg. |
| ["SN: 55004-UP"] analogs:["3007572X", "801014128", "0101051255"] | ||||
| 57. | 07043-70312 | [2] | Plug Komatsu | 0.016 kg. |
| ["SN: 55004-UP"] | ||||
| 58. | 426-15-41320 | [1] | Sleeve Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 59. | 07000-72012 | [1] | O-ring, (Kit : K02) Komatsu China | 0.001 kg. |
| ["SN: 55004-UP"] analogs:["0700062012", "6127612971", "R0700072012"] | ||||
| 60. | 07000-72010 | [1] | O-ring, (Kit : K02) Komatsu | 0.002 kg. |
| ["SN: 55004-UP"] analogs:["0700062010"] | ||||
| 61. | 426-15-48750 | [1] | Flange Komatsu China | |
| ["SN: 55004-UP"] | ||||
| 62. | 07000-73028 | [1] | O-ring, (Kit : K02) Komatsu OEM | 0.002 kg. |
| ["SN: 55004-UP"] analogs:["0700063028", "R0700073028"] | ||||
| 63. | 01010-81045 | [2] | Bolt Komatsu | 0.039 kg. |
| ["SN: 55004-UP"] analogs:["0101051045", "01010D1045"] | ||||
| 65. | 708-8E-16150 | [1] | Plug Komatsu | 0.02 kg. |
| ["SN: 55004-UP"] | ||||
| 66. | 07002-61023 | [1] | O-ring, (Kit : K02) Komatsu | 0.22 kg. |
| ["SN: 55004-UP"] analogs:["7082L23920"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
