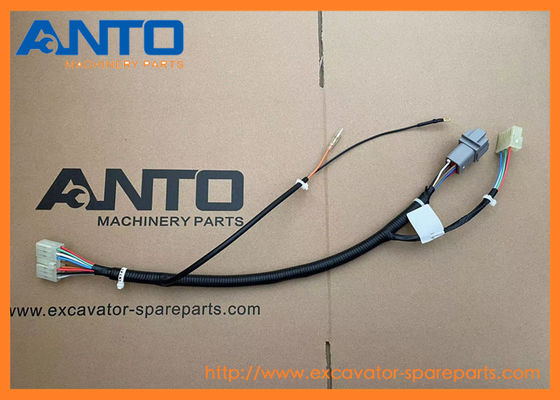

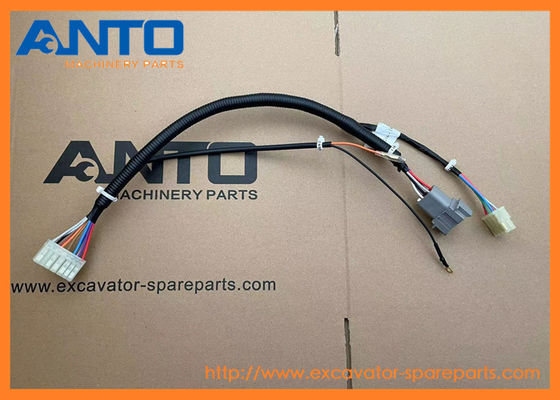

21N810091 21N8-10091 Harness Excavator Electric Parts Fitting For HYUNDAI R110-7 R110-7A

• 21N810091 21N8-10091 Harness Excavator Electric Parts Fitting For HYUNDAI R110-7 R110-7A

• Specifiion

• Function

1.Power Distribution: Transmits electrical power from the excavator's battery or power source to the left control box and connected devices, such as switches, relays, and solenoids, providing the necessary energy for operation.

2.Signal Transmission: Carries electrical signals between the control box and other parts of the machine, including sensors (e.g., position sensors, pressure sensors) and actuators (e.g., hydraulic control valves). This enables the operator to control functions like arm movement, bucket operation, and travel through the control box.

3.Data Communiion: In modern excavators with electronic control units (ECUs), the harness may also facilitate data exchange, allowing the control box to receive and send information to the machine's central control system for coordinated operation and diagnostic purposes.

• Appliion

• More harness parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	21N6-00012	[1]	HARNESS-CAB
1	21N6-00013	[1]	HARNESS-CAB
2	21EH-0011	[1]	LAMP-ROOM
2	21N6-01600	[1]	ROOM LAMP ASS`Y(24V)
3	21N6-10400	[2]	SPEAKER
4	E123-3022	[1]	SWITCH-DOOR
5	21N6-00311	[1]	NOZZLE
6	21M5-50250	[1]	SWITCH ASSY	WIPER CUT SW
7	21N6-00301	[1]	BRACKET WA
8	21N6-10410	[1]	ANTENA
8	21N4-02840	[1]	ANTENNA
9	21N6-00210	[1]	WIPER MOTOR KIT ASSY
9	21N6-01210	[1]	WIPER MOTOR KIT ASSY
9-1.	21N6-00220	[1]	ARM-WIPER
9-1.	21N6-01220	[1]	ARM-WIPER
9-1.	21N6-01221	[1]	ARM-WIPER
9-11.	21N6-01290	[1]	CAM-MOTOR
9-2.	21N6-00230	[1]	BLADE-WIPER
9-2.	21N6-01230	[1]	BLADE-WIPER
9-3.	21N6-00240	[1]	MOTOR-WIPER
9-3.	21N6-01280	[1]	MOTOR-WIPER
9-3.	21N6-01281	[1]	MOTOR-WIPER
9-4.	21N6-00250	[1]	BRACKET-PARKING
9-4.	21N6-01250	[1]	BRACKET-PARKING
9-5.	21N8-21060	[1]	CONTROLLER
9-5.	21N6-01270	[1]	CONTROLLER-W/MOTOR
9-5.	21N6-01272	[1]	CONTROLLER-W/MOTOR
N9-6.	@	[1]	BRACKET & LINK ASSY
9-6.	21N6-01260	[1]	BRACKET & LINK ASSY
9-61.	21N6-01300	[1]	CAM BASE-W/MOTOR
10	S411-050006	[11]	WASHER-SPRING
11	S015-080166	[3]	BOLT-HEX
12	S411-080006	[3]	WASHER-SPRING
13	21EM-10890	[1]	HOSE-WASHER TANK
14	E171-1185	[1]	PLATE-NOZZLE MTG
15	S161-050166	[11]	SCREW-CROSS R/ROUND
16	S161-060166	[2]	SCREW-CROSS R/ROUND
17	S403-062006	[2]	WASHER-PLAIN
18	S411-060006	[8]	WASHER-SPRING
19	S411-040006	[3]	WASHER-SPRING
20	S161-040106	[1]	SCREW-CROSS R/ROUND
21	S151-040166	[4]	SCREW-TAPPING
22	S151-050126	[8]	SCREW-TAPPING
23	21N6-10420	[2]	PLATE
24	21N6-10430	[2]	SEAL
25	21N6-10440	[2]	PLATE
26	S161-040166	[2]	SCREW-CROSS R/ROUND
27	S141-040106	[2]	SCREW-FLAT HD
28	21N6-00320	[1]	GROMMET
29	21N8-10090	[1]	HARNESS-WIPER
29	21N8-10091	[1]	HARNESS-WIPER
30	S890-107508	[1]	TUBE-PVC
31	S681-410400	[2]	GROMMET
32	S681-460400	[1]	GROMMET
33	21N4-22010	[1]	EXT HARNESS-USB
N.	@	[AR]	NOT SUPPLIED PARTS
