商品の詳細:
お支払配送条件:
|
| カテゴリ: | 冷却システム | 機械モデル: | R320LC9 R360LC9 R380LC9DM R380LC9MH |
|---|---|---|---|

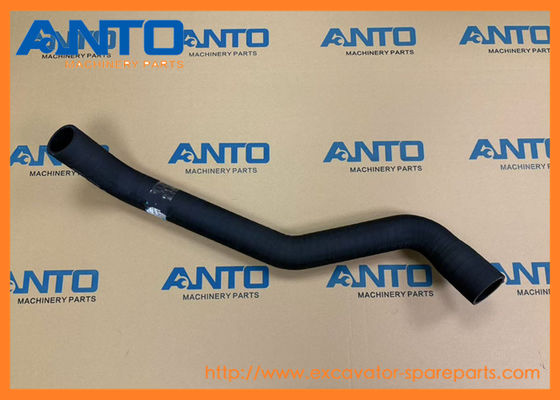

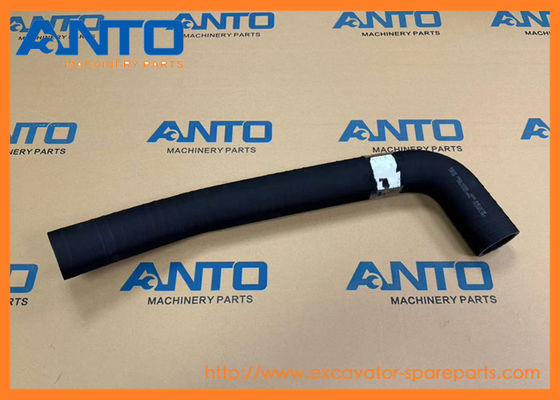

| 応用: | 掘削機 | 製品名: | ホース |
| 部品番号: | 11q9-40242 11q9-40292 | パッキング: | 標準輸出カートン |
| ハイライト: | HYUNDAI excavator hydraulic hose,Excavator spare parts hose,R320LC-9 R380LC-9 compatible hose |
||
| Name | Hose |
| Parts No | 11Q9-40242 11Q9-40292 |
| Machine Model | R320LC9 R360LC9 R380LC9DM R380LC9MH R430LC9 |
| Category | Cooling System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
1.Construction: Multi-layered design with an inner fuel-resistant layer (e.g., NBR or PA), reinforcement (steel braid or synthetic fibers), and an outer abrasion-resistant cover (EPDM or chloroprene).
2.Pressure Rating: Fuel lines typically rated 1–10 bar; high-pressure lines for common rail systems up to 200 bar or more; hydraulic hoses can withstand 100–350 bar depending on application.
| P930-042009 HOSE ASSY-ORFS 0X90 |
| 180DE, 250DE, HL757-F, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9... |
| AH001287 HOSE-INLET,WATER |
| HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, HL740-7S, HL740-9, HL740-9A, HL740-9B, HL740-9S, HL740-9SB, HL740TM-7, HL740TM... |
| P910-162032 HOSE ASSY-ORFS 0X0 |
| HL757-9, HL757TM-9, HW210, R210W9A, R380LC9DM, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S |
| P910-042060 HOSE ASSY-ORFS 0X0 |
| HL760-7A, HW210, HX140L, HX220L, HX220NL, HX330L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9S, R160LC7, R160LC7A, R160LC9S, R170W7, R170W7A, R... |
| X420-042019 HOSE ASSY-SYNFLEX,ORFS |
| HL740-9S, HL740-9SB, HX220L, HX260L, HX380L, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9S, R16-9, R16-9CA, R16-9NH, R160LC9S, R170W9S, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC9S, R... |
| P910-042008 HOSE ASSY-ORFS 0X0 |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R... |
| X420-042011 HOSE ASSY-ORFS 0X90 |
| HX330L, R140LC9, R140LC9A, R140LC9S, R16-9, R16-9CA, R16-9NH, R160LC7A, R160W9A, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC7A, R200W7, R200W7A, R210LC9BC, R210LC9BH, R210W9S, R220NLC9A, R250LC9, R25Z-9A, R... |
| 11L1-3010 HOSE-OVER FLOW |
| HL35C, HW140, HX330L, HX380L, HX430L, R1200-9, R140W9, R140W9A, R170W9, R210W9A, R210W9AMH, R220LC9A, R220NLC9A, R235LCR9, R250LC9A, R300LC9A, R320LC9, R330LC9A, R380LC9A, R430LC9A, R450LC3, R450LC3A,... |
| 11N8-90710 HOSE |
| HL770-9S, HL780-9S, R210LC9, R210LC9BC, R210NLC9, R210W-9, R250LC9, R260LC9S, R290LC9, R290LC9MH, R300LC9S, R300LC9SH, R320LC9, R360LC9, R380LC9MH, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9S |
| Pos. | Part No | Qty | Parts name | Comments |
| 2 | S017-16045D | [1] | BOLT-HEX | |
| 3 | S441-160006 | [6] | WASHER-HARDENED | |
| 4 | 11Q9-40292 | [1] | HOSE-LOWER | |
| 5 | 11Q9-40242 | [1] | HOSE-UPPER | |
| 6 | S572-720006 | [4] | CLAMP-HOSE,WIRE TYPE | |
| 7 | S572-750006 | [4] | CLAMP-HOSE,WIRE TYPE | |
| 7 | 11Q4-44300 | [4] | CLAMP | |
| 8 | 11N8-46150 | [1] | STAY | |
| 9 | 11Q9-40710 | [1] | STAY-BAR | |
| 10 | S037-123026 | [3] | BOLT-W/WASHER | |
| 11 | S037-102556 | [1] | BOLT-W/WASHER | |
| 12 | 11Q9-40382 | [1] | BEACKET | |
| 12 | 11Q9-40383 | [1] | BRACKET | |
| 13 | 11Q9-40392 | [1] | BRACKET | |
| 14 | S037-102526 | [8] | BOLT-W/WASHER | |
| 14 | S037-102526 | [14] | BOLT-W/WASHER | |
| 15 | 11Q9-40361 | [1] | PIPE ASSY | |
| 16 | 11Q9-40372 | [1] | PIPE-CAC | |
| 17 | 11N6-43280-DA | [4] | U-BOLT | |
| 18 | S275-12000B | [8] | NUT-SELF LOCKING | |
| 19 | 11Q9-40402 | [1] | SCREEN ASSY | |
| 19 | 11Q9-40403 | [1] | SCREEN ASSY | |
| 19 | 11Q9-40404 | [1] | SCREEN ASSY | |
| 19-1. | 71EM-51590 | [1] | BOLT-STUD | |
| 19-2. | 71EM-51580 | [1] | CAP-STUD BOLT | |
| 20 | S035-082026 | [6] | BOLT-W/WASHER | |
| 21 | 11L1-3010 | [1] | HOSE-OVER FLOW | |
| 21 | 12L1-3011 | [1] | HOSE-AIR VENT | |
| 22 | 11QB-40300 | [1] | HOSE-OVER FLOW | |
| 22 | E111-2504 | [1] | HOSE | |
| 23 | S520-017000 | [4] | CLAMP-HOSE | |
| 23 | S520-015000 | [4] | CLAMP-HOSE,S/DRIVE | |
| 24 | 31L7-10340 | [4] | CLAMP-TUBE INS | |
| 24 | 31L7-10340 | [2] | CLAMP-TUBE INS | |
| 24 | 31L7-10200 | [1] | CLAMP-TUBE | |
| 25 | S035-081556 | [2] | BOLT-W/WASHER | |
| 26 | 14L4-01650 | [1] | CONNECTOR-HOSE | |
| 27 | 11QB-40180 | [1] | HOSE-MAKE UP | |
| 28 | S572-340006 | [2] | CLAMP-HOSE,WIRE TYPE | |
| 29 | 31L7-10190 | [2] | CLAMP-TUBE | |
| 30 | S037-101526 | [1] | BOLT-W/WASHER | |
| 31 | 11Q9-40420 | [1] | HOSE-CAC | |
| 32 | 11N6-20350 | [1] | CLAMP-T/BOLT | |
| 34 | S109-080356 | [4] | BOLT-SOCKET | |
| 35 | S411-080006 | [4] | WASHER-SPRING | |
| 36 | S403-08100B | [4] | WASHER-PLAIN | |
| 37 | 11Q9-60020 | [1] | CONNECTOR | |
| 38 | 21LM-08210 | [1] | SENSOR-SPEED | |
| 39 | 11QA-00041 | [1] | FAN-COOLING(9EA) |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
