商品の詳細:
お支払配送条件:
|
| カテゴリ: | ウォーターポンプと冷却ファン | エンジンモデル: | 4D105 6D105 S6D105 |
|---|---|---|---|
| 応用: | 掘削機 | 製品名: | サーモスタットハウジング |
| 部品番号: | 6136-11-6411 6136116411 について | パッキング: | 標準輸出カートン |
| ハイライト: | Komatsu excavator thermostat housing,4D105-5N engine thermostat housing,Excavator spare parts with warranty |
||

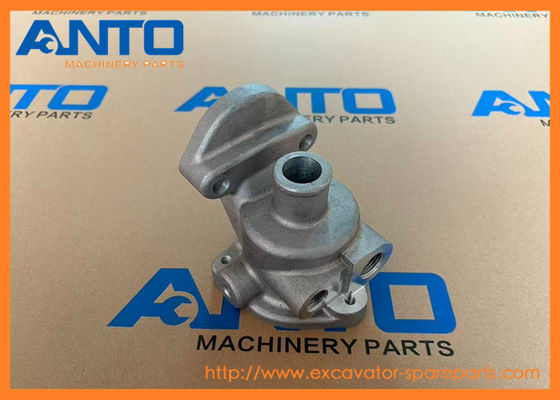

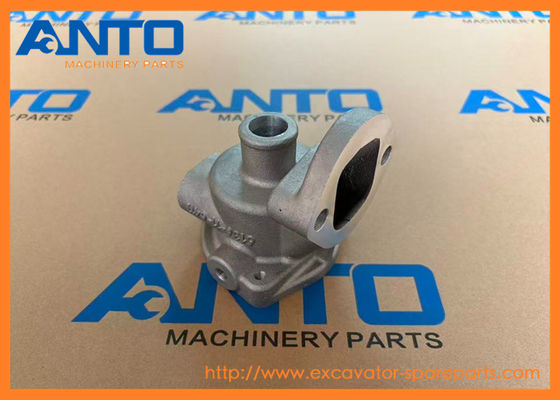

| Name | Thermostat Housing |
| Parts No | 6136-11-6411 6136116411 |
| Engine Model | 4D105 6D105 S6D105 |
| Category | Water Pump And cooling Fan |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Working Principle
At low temperatures, the thermostat closes the passage to the radiator, allowing the coolant to circulate only within the engine, rapidly heating up. Once the set temperature is reached, the thermostat opens, allowing the coolant to enter the radiator for a full cycle, dissipating heat and cooling the engine, thereby stabilizing the water temperature.
ENGINES 4D105 6D105 S6D105 Komatsu
| 6136-21-4211 HOUSING,FLYWHEEL |
| 4D105, 6D105, S4D105, S6D105 |
| DK131071-4120 HOUSING |
| 6D105, S6D105 |
| 6136-21-4141 HOUSING,FLYWHEEL |
| 6D105, S6D105, SA6D110 |
| 6138-21-4130 HOUSING,FLYWHEEL |
| 6D105 |
| DK152004-1220 HOUSING |
| 6D105, S6D105 |
| DK154000-6400 HOUSING |
| 6D105, S4D105, S6D105, S6D110, SA6D110 |
| DK154004-5020 HOUSING |
| 6D105, S6D105, S6D110, SA6D110 |
| DK131071-6220 HOUSING |
| 6D105, S6D105 |
| 17A-15-00270 HOUSING ASS'Y |
| D155A, D155AX |
| 6215-11-6110 HOUSING,THERMOSTAT |
| SA12V140, SDA12V140, SDA12V140E, WA800, WA900 |
| 711-67-17110 HOUSING COMPLETE |
| D375A |
| 711-66-18120 HOUSING |
| D375A, D475A, D475ASD |
| 6505-61-4370 HOUSING,TURBINE |
| HM350, SAA12V140E, SAA6D140E, SDA6D140E |
| 6127-11-7102 HOUSING ASS'Y,ROCKER ARM |
| S6D155 |
| 23B-15-11151 HOUSING,2ND |
| GD605A, GD611A, GD621A, GD621R, GD623A, GD625A, GD661A, GD663A |
| 6502-14-1611 HOUSING,CENTER |
| S6D155, SA6D155 |
| 6154-21-4170 HOUSING,FLYWHEEL |
| PC400, SA6D125E, SAA6D125E |
| 6150-21-4161 HOUSING,FLYWHEEL |
| S6D125 |
| 175-15-00332 HOUSING ASS'Y |
| D135A, D155A, D155C, D155S, D155W, D355C, D85A, D85E, D85P, D95S |
| Pos. | Part No | Qty | Parts name | Comments |
| 6134-61-1301 | [1] | WATER PUMP ASS'Y Komatsu China | ||
| ["SN: .-UP"] |1. | ||||
| 6134-61-1300 | [1] | WATER PUMP ASS'Y Komatsu China | ||
| ["SN: 100006-."] analogs:["6134611301"] |1. | ||||
| 1. | 6134-61-1112 | [1] | BODY Komatsu China | |
| ["SN: .-UP"] analogs:["6134611111"] | ||||
| 6134-61-1111 | [1] | BODY Komatsu China | ||
| ["SN: 100006-."] analogs:["6134611112"] |1. | ||||
| 2. | 6134-61-1340 | [1] | SHAFT Komatsu China | |
| ["SN: 100006-UP"] | ||||
| 3. | 6134-61-1330 | [1] | IMPELLER Komatsu | 0.6 kg. |
| ["SN: 100006-UP"] | ||||
| 4. | 6610-61-1512 | [1] | SEAL¤ WATER (K2) Komatsu | 0.03 kg. |
| ["SN: 100006-UP"] analogs:["6610611520"] | ||||
| 5. | 6676-62-1141 | [1] | BEARING,BALL Komatsu | 0.133 kg. |
| ["SN: 100006-UP"] analogs:["0600706205"] | ||||
| 6. | 6600-01-1211 | [1] | BEARING,BALL Komatsu China | |
| ["SN: 100006-UP"] analogs:["CU168569", "6600011210"] | ||||
| 7. | 6131-62-1230 | [1] | SPACER Komatsu | 0.175 kg. |
| ["SN: 100006-UP"] | ||||
| 8. | 6676-62-1120 | [1] | RING,SNAP Komatsu China | |
| ["SN: 100006-UP"] analogs:["6600011120"] | ||||
| 9. | 6134-61-1120 | [1] | COVER Komatsu China | |
| ["SN: 100006-UP"] | ||||
| 10. | 6140-61-1160 | [1] | O-RING (K2) Komatsu | 0.005 kg. |
| ["SN: 100006-UP"] | ||||
| 11. | 6140-61-1170 | [1] | RING,SNAP Komatsu | 0.1 kg. |
| ["SN: 100006-UP"] | ||||
| 12. | 07042-00108 | [2] | PLUG Komatsu | 0.007 kg. |
| ["SN: 100006-UP"] analogs:["0704210108"] | ||||
| 13. | 6134-61-3240 | [1] | PULLEY Komatsu China | |
| ["SN: 100006-UP"] | ||||
| 14. | 01839-01821 | [1] | NUT Komatsu China | |
| ["SN: 100006-UP"] analogs:["6110631390", "6112631391", "6112631390"] | ||||
| 15. | 01643-31845 | [1] | WASHER Komatsu China | 0.02 kg. |
| ["SN: 100006-UP"] analogs:["0164321845", "R0164331845"] | ||||
| 16 | 6134-61-1811 | [1] | GASKET (K2) Komatsu | 0.014 kg. |
| ["SN: 101082-UP"] | ||||
| 6134-61-1810 | [1] | GASKET (K2) Komatsu | 0.014 kg. | |
| ["SN: 100006-101081"] analogs:["6134611811"] |16. | ||||
| 17 | 01010-31060 | [3] | BOLT Komatsu | 0.048 kg. |
| ["SN: 100006-UP"] analogs:["01010E1060"] | ||||
| 18 | 01010-31050 | [2] | BOLT Komatsu | 0.042 kg. |
| ["SN: 100006-UP"] analogs:["01010E1050"] | ||||
| 19 | 01602-01030 | [5] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 100006-UP"] analogs:["0160211030"] | ||||
| 20 | 6134-61-1211 | [1] | BRACKET Komatsu China | |
| ["SN: 102834-UP"] | ||||
| 6134-61-1210 | [1] | BRACKET Komatsu China | ||
| ["SN: 100006-102833"] |20. | ||||
| 21 | 01010-31022 | [1] | BOLT Komatsu | 0.027 kg. |
| ["SN: 102834-UP"] analogs:["0101051022", "0101081022"] | ||||
| 01010-31025 | [1] | BOLT Komatsu China | 0.03 kg. | |
| ["SN: 100006-102833"] analogs:["01010E1025", "0101061025", "0104041025"] |21. | ||||
| 23 | 01010-30818 | [2] | BOLT Komatsu | 0.013 kg. |
| ["SN: .-UP"] analogs:["0101080818"] | ||||
| 01010-30820 | [2] | BOLT Komatsu | 0.013 kg. | |
| ["SN: 100006-."] analogs:["01010E0820"] |23. | ||||
| 24 | 01602-00825 | [2] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 100006-UP"] analogs:["0160220825", "0231011020", "6124613790"] | ||||
| 25 | 07217-60510 | [2] | ELBOW Komatsu | 0.023 kg. |
| ["SN: .-UP"] analogs:["0721750510"] | ||||
| 07217-50510 | [2] | ELBOW Komatsu | 0.023 kg. | |
| ["SN: 100006-."] analogs:["0721760510"] |25. | ||||
| 26 | 6134-61-1711 | [1] | TUBE Komatsu China | |
| ["SN: 100006-UP"] | ||||
| 27 | 6136-61-6111 | [1] | NIPPLE Komatsu China | |
| ["SN: 100006-UP"] analogs:["6136616110"] | ||||
| 28 | 6136-61-6120 | [1] | HOSE Komatsu | 0.13 kg. |
| ["SN: 100006-UP"] | ||||
| 29 | 07281-00489 | [2] | CLAMP Komatsu | 0.035 kg. |
| ["SN: 100006-UP"] analogs:["802660010"] | ||||
| 30 | 6136-11-6411 | [1] | HOUSING Komatsu | 0.55 kg. |
| ["SN: 100006-UP"] | ||||
| 31 | 07042-20108 | [1] | PLUG Komatsu | 0.008 kg. |
| ["SN: 100006-UP"] analogs:["0704230108"] | ||||
| 32 | 07042-00415 | [1] | PLUG Komatsu | 0.056 kg. |
| ["SN: 100006-UP"] | ||||
| 33 | 6672-12-6290 | [1] | PLUG Komatsu China | |
| ["SN: 100006-UP"] analogs:["6672126270"] | ||||
| 34 | 07005-01612 | [1] | GASKET (K1) Komatsu | 0.01 kg. |
| ["SN: 100006-UP"] analogs:["YM43400500490"] | ||||
| 35 | 600-421-6210 | [1] | THERMOSTAT Komatsu | 0.22 kg. |
| ["SN: 100006-UP"] | ||||
| 36 | 6136-11-6510 | [1] | CONNECTOR Komatsu | 0.215 kg. |
| ["SN: 100006-UP"] | ||||
| 37 | 6136-11-6810 | [1] | GASKET (K1) Komatsu | 0.01 kg. |
| ["SN: 100006-UP"] | ||||
| 38 | 01010-30830 | [3] | BOLT Komatsu | 0.017 kg. |
| ["SN: 100006-UP"] analogs:["01010E0830"] | ||||
| 40 | 01640-00816 | [3] | WASHER Komatsu | 0.002 kg. |
| ["SN: 100006-UP"] analogs:["0164020816"] | ||||
| 41 | 6136-11-6821 | [1] | GASKET (K1) Komatsu | 0.01 kg. |
| ["SN: 101090-UP"] analogs:["6136116840"] | ||||
| 6136-11-6820 | [1] | GASKET (K1) Komatsu | 0.01 kg. | |
| ["SN: 100006-101089"] analogs:["6136116840", "6136116821"] |41. | ||||
| 42 | 01010-31055 | [2] | BOLT Komatsu | 0.078 kg. |
| ["SN: 100006-UP"] analogs:["01010E1055", "0101061055"] | ||||
| 44 | 01640-01016 | [2] | WASHER Komatsu | 0.177 kg. |
| ["SN: 100006-UP"] analogs:["0164021016", "0164221016", "0164201016"] | ||||
| 45 | 600-623-0550 | [1] | FAN Komatsu China | |
| ["SN: 100006-UP"] | ||||
| 46 | 01010-51020 | [6] | BOLT Komatsu | 0.161 kg. |
| ["SN: 100006-UP"] analogs:["0101081020", "801014093", "801015108"] | ||||
| 48 | 04120-21753 | [1] | V-BELT Komatsu China | 0.27 kg. |
| ["SN: 100006-UP"] | ||||
| 04120-21757 | [1] | V-BELT,(FOR 35A ALTERNATOR) Komatsu | 0.32 kg. | |
| ["SN: .-UP"] |48. | ||||
| 04120-21756 | [1] | V-BELT,(FOR 35A ALTERNATOR) Komatsu | 0.314 kg. | |
| ["SN: 100006-."] |48. |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
