商品の詳細:
お支払配送条件:
|
| カテゴリ: | パワートレイン、ステアリングケース | 機械モデル: | PC300 PC300HD PC360 PC400 |
|---|---|---|---|
| 応用: | ホイールローダー、掘削機、ブルドーザー | 製品名: | 速度センサー |
| 部品番号: | 7861-93-2330 7861932330 | パッキング: | 標準輸出カートン |
| ハイライト: | Komatsu excavator speed sensor,PC300 PC360 speed sensor,S4D95LE excavator spare parts |
||

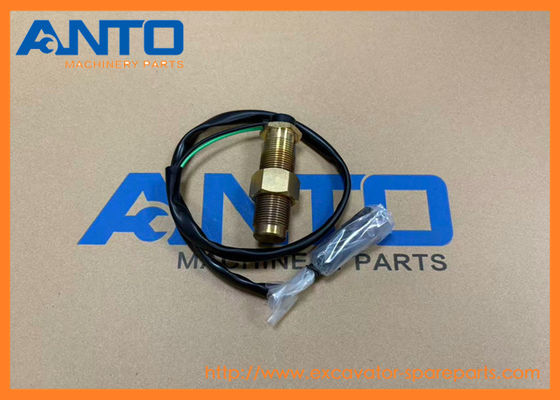

| Name | Speed Sensor |
| Parts No | 7861-93-2330 7861932330 |
| Machine Model | PC300 PC300HD PC360 PC400 WA100 WA1200 WA150 |
| Category | Power Train, Steering Case |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Functions
1.Engine Speed Regulation: Monitors crankshaft speed to help the ECU adjust fuel injection timing and air-fuel ratio, preventing overspeeding (engine “redline”) and ensuring smooth idling.
2.Transmission Shifting Control: For wheel loaders/excavators with automatic transmissions, the sensor sends shaft speed data to the ECU, which times gear shifts to avoid harsh engagement or power loss.
3.Hydraulic System Synchronization: In hydraulic pumps, it syncs pump speed with operator inputs (e.g., joystick movements) to deliver consistent hydraulic flow—critical for precise tasks like bucket lifting or arm rotation.
BULLDOZERS D155A D155AX D275A D275AX D31EX D31PX D375A D37EX D37PX D39EX D39PX D475A D475ASD D51EX/PX D61EX D61PX D85EX D85MS D85PX
CRAWLER LOADERS D85MS
DUMP TRUCKS HD325 HD405 HD465 HD605 HD785 HM250 HM300 HM300TN HM350 HM400
ENGINES S4D95LE SA6D140E SAA6D125E SAA6D140E SAA6D170E SDA12V140 SDA12V140E SDA6D140E
EXCAVATORS PC300 PC300HD PC360 PC400
GRADERS GD555 GD655 GD675 GD755 GH320
WHEEL DOZERS WD600
WHEEL LOADERS WA100 WA1200 WA150 WA150L WA150PZ WA200 WA200L WA200PT WA200PTL WA250 WA250L WA250PT WA250PTL WA250PZ WA270 WA320 WA320L WA320PT WA380 WA380Z WA400 WA430 WA450 WA470 WA480 WA50 WA500 WA600 WA800 WA900 Komatsu
| ND499000-4441 SENSOR ASS'Y,FUEL PRESSURE |
| DCA, HM350, PC400, SA6D125E, SA6D140E, SAA6D125E, SAA6D140E |
| 7861-93-1840 SENSOR |
| BOOM,, CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, PC130, PC220, PC240, PC290, PC300, PC350, PC400, PC450, PC55MR, PC78US, PC88MR, PRESSURE, RAIN |
| 6741-81-9220 Sensor |
| HM300, HM350, HM400, PC118MR, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC360, PC390, PC390LL, PC400, PC450, PC490, PW118MR, PW180, PW200, ... |
| 7861-92-4800 SENSOR,FUEL LEVEL |
| BR200, BR200J, BR200R, BR200S, BR300J, BR310JG, GD825A, HD205, HD255, HD325, HD405, HD465, HD605, JV100A, PC100, PC100L, PC120 |
| 6261-81-6900 SENSOR, TEMPERATURE |
| D51EX/PX, PC300LL, PC350LL, PW180, PW200, PW220, SAA12V140E, SAA4D107E, SAA4D95LE, SAA4D95LE_5A, SAA6D107E, SAA6D114E, SAA6D125E, SAA6D140E, SAA6D170E |
| 7861-93-1652 SENSOR |
| AIR, D155A, D155AX, D275A, D375A, D85EX, D85PX, DRAWBAR,, FRONT, HYDRAULIC, PC2000, TRAVEL, WA380, WA430, WA500 |
| 7861-93-4130 SENSOR |
| D155A, D155AX, D275A, D275AX, D31EX, D31PX, D375A, D37EX, D37PX, D39EX, D39PX, D475A, D475ASD, D575A, D61EX, D61PX, D65EX, D65PX, D65WX, D85EX, D85PX, PC1800 |
| 7861-93-4131 SENSOR |
| D155A, D155AX, D275A, D275AX, D375A, D475A, D475ASD, D61EX, D61PX, D65EX, D65PX, D85EX, D85MS, D85PX, DRAWBAR, |
| 600-311-3721 SENSOR |
| D51EX/PX, D61EX, D61PX, D65EX, D65PX, D65WX, GD655, GD675, PC200, PC210, PC230NHD, PC240, PC290, PC300, PC300HD, PC300LL, PC350, PC350LL, PW140, SAA4D107E, SAA6D107E, SAA6D114E, WA100M, WA200, WA200PZ... |
| 7861-93-2310 SENSOR, SPEED |
| BR120T, BR480RG, PC220LL, PW130, PW140, PW148, PW160, PW180, PW200, PW220, SAA4D102E, SAA6D102E |
| 7861-93-2311 SENSOR, REVOLUTION |
| PC220 |
| 7861-93-4210 SENSOR |
| HD325, PC220, PC300, PC360, PC600, PC650, PC750, PC750SE, PC800, PC800SE, PW160, PW200, PW220, SA6D140E, SAA4D102E, SAA6D102E, SAA6D114E, SAA6D125E, SAA6D140E, SAA6D170E, WA1200, WA900 |
| 206-01-A1130 SENSOR, TEMPERATURE |
| 532, 538, 545, 558, PC200Z, PC210, PC300, PC400, WA320, WA380, WA420, WA450, WA500 |
| Pos. | Part No | Qty | Parts name | Comments |
| 154-22-60020 | [1] | Power Train Assembly Komatsu China | ||
| ["SN: 11609-UP"] |$0. | ||||
| 154-22-61020 | [1] | Steering Assembly Komatsu China | ||
| ["SN: 11609-UP"] |$1. | ||||
| 1 | 154-22-25210 | [1] | Case Komatsu China | |
| ["SN: 11609-UP"] | ||||
| 2 | 02720-11616 | [1] | Plug, Tapered Komatsu | 0.121 kg. |
| ["SN: 11609-UP"] analogs:["0272021616"] | ||||
| 3 | 154-22-25130 | [1] | Cover Komatsu China | |
| ["SN: 11609-UP"] | ||||
| 4 | 154-22-25160 | [1] | Cover Komatsu China | |
| ["SN: 11609-UP"] | ||||
| 5 | 154-22-25170 | [1] | Gasket Komatsu | 0.02 kg. |
| ["SN: 11609-UP"] | ||||
| 6 | 01010-81230 | [4] | Bolt Komatsu | 0.043 kg. |
| ["SN: 11609-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 7 | 01643-31232 | [4] | Washer Komatsu | 0.027 kg. |
| ["SN: 11609-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 8 | 07000-73022 | [8] | O-ring Komatsu OEM | 0.001 kg. |
| ["SN: 11609-UP"] analogs:["0700063022", "R0700073022"] | ||||
| 9 | 01010-81255 | [32] | Bolt Komatsu | 0.065 kg. |
| ["SN: 11609-UP"] analogs:["3007572X", "801014128", "0101051255"] | ||||
| 11 | 04020-01434 | [2] | Pin, Dowel Komatsu | 0.044 kg. |
| ["SN: 11609-UP"] | ||||
| 12 | 01010-61645 | [15] | Bolt Komatsu China | 0.104 kg. |
| ["SN: 11609-UP"] analogs:["801015187", "0101031645", "0101051645", "0101081645", "37A0911184", "801014184"] | ||||
| 13 | 01010-61670 | [3] | Bolt Komatsu | 0.142 kg. |
| ["SN: 11609-UP"] analogs:["0101031670", "0101051670", "0101081670"] | ||||
| 14 | 01011-61615 | [1] | Bolt Komatsu | 0.211 kg. |
| ["SN: 11609-UP"] analogs:["0104161615"] | ||||
| 15 | 01643-31645 | [19] | Washer Komatsu | 0.072 kg. |
| ["SN: 11609-UP"] analogs:["802170005", "0164301645"] | ||||
| 16 | 134-22-66140 | [4] | Sleeve Komatsu China | |
| ["SN: 11609-UP"] | ||||
| 17 | 14X-22-16170 | [5] | Sleeve Komatsu | 0.03 kg. |
| ["SN: 11609-UP"] | ||||
| 18 | 07000-72018 | [14] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 11609-UP"] analogs:["0700062018", "R0700072018"] | ||||
| 19 | 14Y-22-26180 | [2] | Tube Komatsu | 0.23 kg. |
| ["SN: 11609-UP"] | ||||
| 21 | 07043-70312 | [19] | Plug Komatsu | 0.016 kg. |
| ["SN: 11609-UP"] | ||||
| 22 | 07042-80108 | [1] | Plug Komatsu | 0.007 kg. |
| ["SN: 11609-UP"] | ||||
| 23 | 23A-15-15490 | [1] | Valve Komatsu | 0.04 kg. |
| ["SN: 11609-UP"] | ||||
| 24 | 702-16-52420 | [1] | Spring Komatsu | 0.005 kg. |
| ["SN: 11609-UP"] | ||||
| 25 | 07040-12012 | [1] | Plug Komatsu | 0.088 kg. |
| ["SN: 11609-UP"] | ||||
| 26 | 14Y-22-26240 | [1] | Tube Komatsu China | |
| ["SN: 11609-UP"] | ||||
| 28 | 01010-81035 | [2] | Bolt Komatsu | 0.033 kg. |
| ["SN: 11609-UP"] analogs:["801015556", "01010D1035", "0101051035"] | ||||
| 29 | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| ["SN: 11609-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 30 | 01010-81025 | [2] | Bolt Komatsu | 0.36 kg. |
| ["SN: 11609-UP"] analogs:["0101051025", "0101651025", "801015109"] | ||||
| 32 | 7861-93-2330 | [1] | Sensor, Magnetic Pick-Up,Engine Speed Komatsu OEM | 0.202 kg. |
| ["SN: 11609-UP"] | ||||
| 33 | 08193-20012 | [1] | Clip Komatsu | 0.012 kg. |
| ["SN: 11609-UP"] | ||||
| 34 | 01010-81220 | [1] | Bolt Komatsu | 0.032 kg. |
| ["SN: 11609-UP"] analogs:["0101051220"] | ||||
| 36 | 154-22-25190 | [1] | Bracket Komatsu China | |
| ["SN: 11609-UP"] | ||||
| 37 | 14Y-22-55120 | [-1] | Cover Komatsu China | |
| ["SN: UP"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
