商品の詳細:
お支払配送条件:
|
| カテゴリ: | ヴォルボ・イボ・エグババターエンジン部品 | 機械モデル: | EC135B EC140B EC160B EC180B EC210B EW145B EW160B EW180B EW200B |
|---|---|---|---|
| 部品番号: | VOE20459140 | 部品名: | メインベアリング |
| 保証: | 6ヶ月 | パッケージ: | 標準輸出カートン |
| ハイライト: | Volvo excavator main bearing,EC140B engine bearing parts,excavator engine parts with warranty |
||

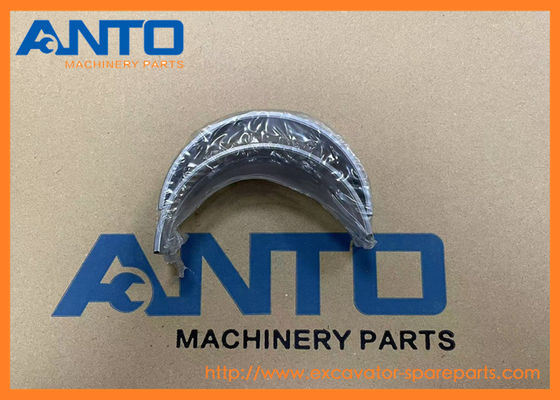

| Product name | Main bearing |
| Part number | VOE20459140 |
| Model |
EC135B EC140B EC160B EC180B EC210B EW145B EW160B EW180B EW200B |
| Category group | Vo-lvo Excavator Engine Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
1.Supporting the Crankshaft: The main bearing is responsible for holding the crankshaft in place within the engine block and enabling it to rotate smoothly. It bears the weight of the crankshaft and the forces generated during engine operation, ensuring that the crankshaft remains properly aligned and can rotate with minimal friction.
2.Reducing Friction and Wear: It is typically a plain bearing, consisting of two semicircular pieces of metal that enclose the crankshaft. A groove runs along the center of the bearing, and one or more holes are cut into the groove to allow engine oil to enter. The oil forms a lubricating film between the bearing and the crankshaft, reducing direct metal-to-metal contact, minimizing friction, and reducing wear on both the bearing and the crankshaft.
3.Absorbing Forces: The main bearing absorbs the rotational forces from combustion and other dynamic forces within the engine. By doing so, it helps to dampen vibrations and reduce engine knock and noise during operation, contributing to the smooth and quiet running of the engine.
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE20882905 | [4] | Connecting rod | |
| 2 | VOE20523284 | [0004] | Bushing | |
| 3 | VOE20459133 | [8] | Bolt | |
| 4 | VOE20459134 | [8] | Pin | |
| 5 | VOE20729184 | [1] | Crankshaft | ENG - 1026595 |
| VOE21351381 | [1] | Crankshaft | ENG 1026596 - | |
| 6 | VOE20459140 | [5] | Main bearing | STD 84,00 MM |
| VOE20459139 | [5] | Main Bearing | U SZ 83,75 MM | |
| 7 | VOE20555403 | [4] | Bearing | ENG - 695616 STD 63,00 MM |
| VOE20459147 | [4] | Bearing | ENG - 695616 U SZ 62,75 MM | |
| VOE20480536 | [4] | Bearing | ENG 695617 - STD 63,00 MM | |
| VOE20522433 | [4] | Bearing | ENG 695617 - U SZ 62,75 MM | |
| 8 | VOE20459149 | [1] | Thrust washer | STD WID 14 MM |
| VOE20459148 | [1] | Thrust Washer | WID 14 MM THICK 2,2 MM | |
| VOE20459143 | [1] | Washer | STD WID 10 MM | |
| VOE20459142 | [1] | Thrust Washer | WID 10 MM THICK 2,2 MM | |
| 9 | VOE20459144 | [1] | Insert | |
| 10 | VOE21628356 | [1] | Crankshaft seal | |
| 11 | VOE20459124 | [1] | Flywheel | |
| 12 | VOE21033328 | [1] | Starter gear ring | |
| 13 | VOE20405654 | [10] | Bolt | |
| 14 | VOE24426216 | [1] | Pulley | |
| 15 | VOE20405724 | [4] | Screw | |
| 16 | VOE20405634 | [1] | Spring pin | |
| 17 | [1] | Piston |
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
