商品の詳細:
お支払配送条件:
|
| カテゴリ: | コマツー パーツ | 機械モデル: | WA100 WA1200 WA150 WA200 WA250 |
|---|---|---|---|
| 応用: | ホイールローダー | 製品名: | ランプ組成 |
| 部品番号: | 417-06-23320 4170623320 | パッキング: | 標準輸出カートン |
| ハイライト: | Komatsu wheel loader lamp assembly,WA100 WA150 spare parts,excavator lamp assembly with warranty |
||

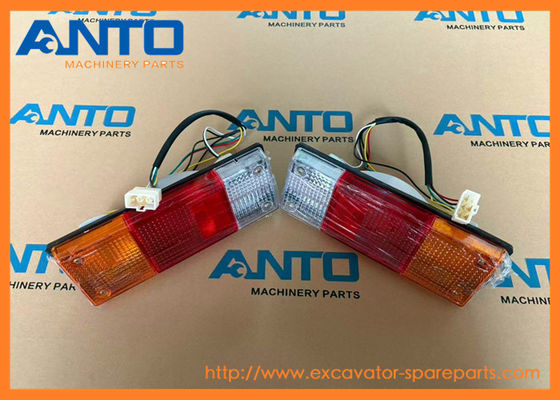

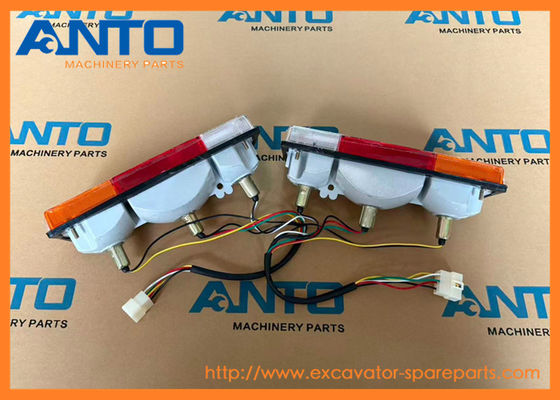

| Name | Lamp Assembly |
| Parts No | 417-06-23320 4170623320 |
| Machine Model | WA100 WA1200 WA150 WA200 WA250 WA300L WA320 WA380 WA400 |
| Category | KOMATSU Spare Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| 23S-06-14610 LAMP,OVER LOAD |
| LW250L |
| 569-06-61461 LAMP, PILOT |
| 330M, HD785 |
| 21T-06-16620 LAMP ASS'Y |
| PC128UU, PC300, PC400, PC60, PC60L, PC60U, PC650, PC80, PF3W, PW100, PW100N, PW100NS, PW100S, PW170, PW200, PW210, PW60, PW60S |
| 417-06-13122 LAMP,BACK UP |
| 512, 518, LW250, WA100, WA100SS, WA100SSS, WA120, WA150, WA180, WR11, WR11SS |
| 23S-06-14621 LAMP,CAUTION |
| LW250L |
| 23S-06-14611 LAMP,OVER LOAD |
| LW250L |
| 08140-22400 LAMP |
| D150A, D155A |
| 08120-02400 LAMP,HEAD |
| GD37 |
| 8287-06-1030 LAMP |
| BR200T |
| 56D-06-21810 LAMP |
| GD555, GD655, GD675, HM250, HM300, HM350, HM400 |
| 08129-42400 LAMP |
| GD22H, GD30, HD200 |
| 424-06-43211 LAMP,HEAD |
| AIR, FRONT, HYDRAULIC, WA250, WA250PZ, WA270, WA320, WA320PZ, WA380, WA380Z, WA430, WA450, WA470, WA480, WA500 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 421-06-23350 | [2] | Lamp Assembly Komatsu OEM | 0.5 kg. |
| ["SN: 2633-UP"] | ||||
| 2 | 22B-06-21930 | [1] | Backup Alarm Komatsu | 0.48 kg. |
| ["SN: 2633-UP"] | ||||
| 3 | 01010-80820 | [2] | Bolt Komatsu | 0.013 kg. |
| ["SN: 2633-UP"] analogs:["801014067", "0101050820", "801015086"] | ||||
| 4 | 01643-30823 | [2] | Washer Komatsu | 0.004 kg. |
| ["SN: 2633-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 5 | 417-06-23320 | [1] | Lamp Komatsu | 0.52 kg. |
| ["SN: 2633-UP"] | ||||
| 5. | 42A-06-13160 | [4] | Nut Komatsu | 0.002 kg. |
| ["SN: 2633-UP"] | ||||
| 5. | 417-06-23340 | [1] | Lens Assembly Komatsu | 0.16 kg. |
| ["SN: 2633-UP"] | ||||
| 5. | 01220-40535 | [4] | Screw, Philips Head Komatsu China | |
| ["SN: 2633-UP"] analogs:["3005084X", "0122010535", "0122020535"] | ||||
| 5. | 08104-12420 | [1] | Bulb, 25/10watt Komatsu | 0.01 kg. |
| ["SN: 2633-UP"] | ||||
| 5. | 08105-12420 | [2] | Bulb, 25watt Komatsu | 0.01 kg. |
| ["SN: 2633-UP"] | ||||
| 5. | 08056-00671 | [1] | Connector Body Assembly, Male Komatsu China | |
| ["SN: 2633-UP"] analogs:["0805600611"] | ||||
| 6 | 417-06-23310 | [1] | Lamp Komatsu | 0.51 kg. |
| ["SN: 2633-UP"] | ||||
| 6. | 417-06-23330 | [1] | Lens Assembly Komatsu | 0.16 kg. |
| ["SN: 2633-UP"] | ||||
| 7 | 565-03-11270 | [2] | Cushion Komatsu | 0.242 kg. |
| ["SN: 2633-UP"] | ||||
| 8 | 01580-11008 | [2] | Nut Komatsu | 0.011 kg. |
| ["SN: 2633-UP"] | ||||
| 9 | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| ["SN: 2633-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 10 | 01010-80816 | [4] | Bolt Komatsu | 0.022 kg. |
| ["SN: 2633-UP"] analogs:["0101050816", "801015084"] | ||||
| 12 | 7861-93-5380 | [1] | Sensor, Angle Komatsu | 0.25 kg. |
| ["SN: 2633-UP"] | ||||
| 13 | 01010-80630 | [2] | Bolt Komatsu | 0.009 kg. |
| ["SN: 2633-UP"] analogs:["801014048", "0101030630"] | ||||
| 14 | 01643-30623 | [2] | Washer Komatsu | 0.002 kg. |
| ["SN: 2633-UP"] analogs:["0164370623"] | ||||
| 15 | 56B-06-27310 | [1] | Bracket Komatsu China | |
| ["SN: 2633-UP"] | ||||
| 16 | 56B-06-15180 | [1] | Bracket Komatsu China | |
| ["SN: 2633-UP"] | ||||
| 19 | 56D-06-25610 | [1] | Wiring Harness Komatsu | 0.3 kg. |
| ["SN: 2633-UP"] | ||||
| 20. | 7861-99-9100 | [2] | Ring Komatsu China | |
| ["SN: 2633-UP"] | ||||
| 21 | 08036-03014 | [2] | Clip Komatsu | 0.03 kg. |
| ["SN: 2633-UP"] | ||||
| 22 | 08193-21012 | [1] | Clip Komatsu | 0.011 kg. |
| ["SN: 2633-UP"] | ||||
| 23 | 01010-81020 | [2] | Bolt Komatsu | 0.161 kg. |
| ["SN: 2633-UP"] analogs:["801014093", "0101051020", "801015108"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
