商品の詳細:
お支払配送条件:
|
| エンジン番号: | SAA6D107E SAA6D114E SAA6D125E | 部品番号: | 708-2L-00112 7082L00112 |
|---|---|---|---|
| 製品名: | ポンプ アッセンブリ | 機械番号: | PC220 PC220LL PC230 PC240 PC270 |
| 応用: | 掘削機、ローダー、ブルドーザー | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Komatsu excavator hydraulic pump,PC220 PC230 PC240 pump assembly,excavator spare parts with warranty |
||

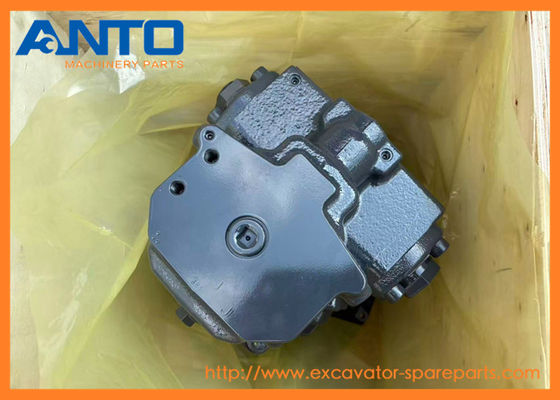

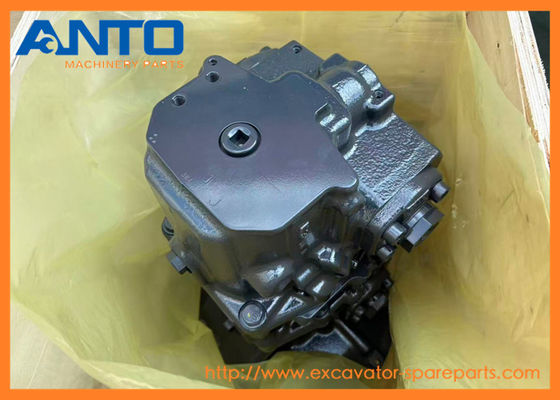

708-2L-00112 7082L00112 Pump Assy KOMATSU Excavator Spare Parts For PC220 PC230 PC240
Specifiion
| Pump Type | Axial Piston Pump |
| Name | Pump Assy |
| Parts No | 708-2L-00112 7082L00112 |
| Machine Number | PC220 PC220LL PC230 PC240 PC270 PC270LL PC290 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Hydraulic Power Supply: Serves as the "heart" of the equipment’s hydraulic system, delivering high-pressure oil to cylinders, motors, and valves—enabling all work functions (e.g., excavator boom lifting, loader bucket tilting).
2.Load-Adaptive Efficiency: Variable-displacement design reduces fuel consumption by matching oil flow to demand (e.g., no unnecessary flow when the equipment is idle or under light load).
3.System Protection: Integrates a pressure relief valve to limit maximum pressure, preventing damage to hoses, cylinders, and valves from overpressure (e.g., when the bucket hits a hard obstacle).
4.Consistent Performance: Precision-machined components (e.g., valve plate, pistons) ensure stable oil flow and pressure, avoiding jerky movements or power drops during heavy operations.
EXCAVATORS PC220 PC220LL PC230 PC240 PC270 PC270LL PC290 PC308
MOBILE CRUSHERS AND RECYCLERS BR300S BR380JG Komatsu
| 20Y-977-1330 PUMP ASS'Y |
| PC120, PC200, PC220, PC250HD, PC300, PC750, PC750SE, PC800, PC800SE, WA380, WA420 |
| 21K-04-K1130 PUMP ASS'Y |
| PC160, PC180, PC200, PC220, PW200, PW220 |
| 206-04-K1111 PUMP,(SEE FIG.Y1040-01H0) |
| PC180, PC200, PC220, PC240, PC270, PC290, PW160, PW180, PW200, PW220 |
| 708-2L-01151 PUMP SUB ASS'Y |
| BR300S, BR380JG, PC220, PC230 |
| 206-04-K1110 PUMP ASS'Y,(SEE FIG. Y1040-01A0) |
| PC200, PC220, PC290, PW180, PW200, PW220 |
| 20Y-04-K2180 PUMP ASS'Y |
| PC160, PC180, PC200, PC210, PC220, PC230NHD, PC240, PC270, PC290, PC340, PC350, PC450, PW130, PW130ES, PW160, PW170ES, PW180, PW200, PW220 |
| 6738-71-1210 PUMP |
| PC220, PC220LL, SAA6D102E |
| 07950-10450 PUMP |
| AIR, BATTERY, BOOM,, BUCKET, CARRIER, D155A, D155AX, D275A, D31EX, D31PX, D375A, D37EX, D37PX, D39EX, D39PX, D65EX, D65PX, D65WX, FRONT, GD555, GD655, GD675, HM250, PC130, PC160, PC18MR, PC190, PC220,... |
| 708-2L-01151 PUMP SUB ASS'Y |
| BR300S, BR380JG, PC220, PC230 |
| 708-21-01210 PUMP SUB ASS'Y |
| PC60, PC60L, PC60U |
| 708-21-11100 PUMP SUB ASS'Y |
| PC60, PC60L, PC60U |
| 705-11-20530 PUMP ASS'Y |
| PC200, PC220, PC300 |
| 708-21-01110 PUMP SUB ASS'Y,(BAR 16) |
| PC60, PC60L, PC60U |
| 208-98-71100 PUMP ASS'Y |
| PC300, PC350, PC400, PC450, PRESSURE, RAIN |
| 708-2H-01450 PUMP SUB ASS'Y |
| BR580JG, PC400, PC450, PC550 |
| 708-2H-00450 PUMP ASS'Y |
| BR580JG, PC400, PC450 |
| 708-1H-01234 PUMP SUB ASS'Y |
| D85EX, D85MS, D85PX, DRAWBAR, |
| 708-2G-01060 PUMP SUB ASS'Y |
| D475A |
| 708-1H-00021 PUMP ASS'Y |
| D275AX |
| 07448-66802 PUMP ASS'Y |
| D355A |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 708-2L-00112 | [1] | PUMP ASS'Y Komatsu | 175.001 kg. |
| ["SN: 2001-UP"] | ||||
| 2 | 07030-03034 | [1] | BREATHER Komatsu | 0.133 kg. |
| ["SN: 2001-UP"] | ||||
| 3 | 07005-03016 | [1] | GASKET Komatsu | 0.006 kg. |
| ["SN: 2001-UP"] analogs:["0700303036"] | ||||
| 4 | 07040-12412 | [1] | PLUG Komatsu | 0.092 kg. |
| ["SN: 2001-UP"] analogs:["0704012414", "0704002412", "R0704012412"] | ||||
| 5 | 07002-02434 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 2001-UP"] analogs:["0700212434", "0700213434"] | ||||
| 6 | 07040-11209 | [1] | PLUG Komatsu | 0.028 kg. |
| ["SN: 2001-UP"] | ||||
| 7 | 07002-11223 | [1] | O-RING Komatsu China | 0.001 kg. |
| ["SN: 2001-UP"] analogs:["0700201223"] | ||||
| 8 | 01010-81040 | [10] | BOLT Komatsu | 0.288 kg. |
| ["SN: 2001-UP"] analogs:["0101051040", "R0101081040"] | ||||
| 9 | 01643-31032 | [10] | WASHER Komatsu | 0.054 kg. |
| ["SN: 2001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 10 | 20Y-62-41572 | [1] | BRACKET Komatsu | 0.52 kg. |
| ["SN: 2001-UP"] | ||||
| 11 | 01010-81045 | [2] | BOLT Komatsu | 0.039 kg. |
| ["SN: 2001-UP"] analogs:["0101051045", "01010D1045"] | ||||
| 13 | 02783-10210 | [1] | ELBOW Komatsu | 0.06 kg. |
| ["SN: 2001-UP"] | ||||
| 14 | 02896-11008 | [1] | O-RING Komatsu China | 0.12 kg. |
| ["SN: 2001-UP"] | ||||
| 15 | 07002-11423 | [1] | O-RING Komatsu China | 0.001 kg. |
| ["SN: 2001-UP"] analogs:["0700201423"] | ||||
| 16 | 02782-10212 | [1] | ELBOW Komatsu | 0.35 kg. |
| ["SN: 2001-UP"] | ||||
| 19 | 02781-0021D | [2] | UNION Komatsu | 0.04 kg. |
| ["SN: 2001-UP"] | ||||
| 22 | 02782-10628 | [1] | ELBOW Komatsu | 0.36 kg. |
| ["SN: 2001-UP"] | ||||
| 23 | 02896-11018 | [1] | O-RING Komatsu | 0.24 kg. |
| ["SN: 2001-UP"] analogs:["855051018", "R0289611018"] | ||||
| 24 | 07002-12434 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 2001-UP"] analogs:["0700202434", "0700213434"] | ||||
| 25 | 20Y-06-31171 | [1] | BRACKET Komatsu | 0.61 kg. |
| ["SN: 2001-UP"] | ||||
| 26 | 04434-50810 | [1] | CLIP Komatsu | 0.013 kg. |
| ["SN: 2001-UP"] | ||||
| 27 | 01010-81020 | [2] | BOLT Komatsu | 0.161 kg. |
| ["SN: 2001-UP"] analogs:["801014093", "0101051020", "801015108"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
