商品の詳細:
お支払配送条件:
|
| カテゴリ: | トラベルモーターと最終駆動 | 部品番号: | 706-8J-41110 7068J41110 |
|---|---|---|---|
| 製品名: | 最終ドライブケース | 機械番号: | PC270LL PC300 PC300HD PC350HD |
| 応用: | 掘削機 | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Komatsu excavator final drive CAASE,PC270LL final drive spare parts,PC300 excavator final drive |
||

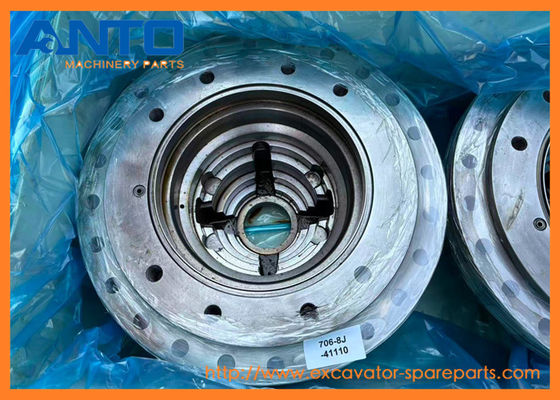

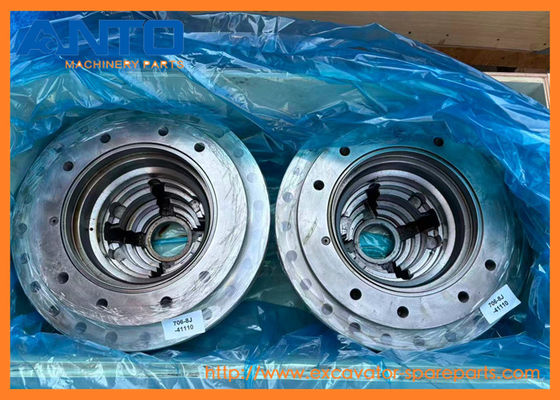

706-8J-41110 7068J41110 Final Drive CAASE KOMATSU Excavator Spare Parts For PC270LL PC300 PC350HD
Specifiion
| Category | Travel Motor and Final Drive |
| Name | Final Drive CAASE |
| Parts No | 706-8J-41110 7068J41110 |
| Machine Number | PC270LL PC300 PC300HD PC350HD PC400 PC450 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Acts as a sealed barrier to shield internal final drive parts (planetary gears, hydraulic motor, brake discs) from external contaminants common in construction sites, such as dirt, mud, water, and rock debris. Without this protection, debris would quickly cause gear wear, bearing failure, or hydraulic leaks.
2.Absorbs and dissipates heat generated by gear friction and hydraulic operation, preventing overheating of lubricants and internal components. The CAASE’s thick, cast iron walls and large surface area enhance heat dissipation.
EXCAVATORS PC270LL PC300 PC300HD PC300LL PC350HD PC350LL PC400 PC450 PC490 PC550 Komatsu
| 22B-54-15440 CAASE,L.H. |
| PC220, PC240, PC290, PC300, PC350, PRESSURE, RAIN |
| 6151-61-3201 CAASE ASS'Y |
| 6D125, 6D125E, D61E, D61EX, D61PX, D63E, D68ESS, DCA, EGS240, EGS300, EGS360,380, PC400, PC450, PW400MH, S6D125, S6D125E, SA6D125, SA6D125E, SAA6D125E |
| 723-46-18500 CAASE SUB ASS'Y |
| BP500, HB205, HB215, PC200, PC220, PC240, PC270, PC290, PC308 |
| 723-46-18280 CAASE SUB ASS'Y |
| PC400, PC450, PC490 |
| 708-2H-04610 CAASE ASS'Y,FRONT |
| PC400, PC450 |
| 723-46-18431 CAASE SUB ASS'Y |
| AIR, PC228, PC228US, PC300, PC350, PC360, PC400, PC450, PC490, PC550, PRESSURE, RAIN |
| ND017321-3212 CAASE,AIR DAMPER |
| PC1250, PC1250SE, PC1250SP, PC160, PC180, PC200, PC300 |
| 207-26-71191 CAASE |
| PC300, PC300HD, PC340, PC350, PC360 |
| 708-2J-04120 CAASE ASSEMBLY, REAR |
| PC490 |
| 104-21-41200 CAASE FRAME ASS' |
| D20P, D21P |
| 709-61-21360 CAASE |
| D475A |
| 134-22-75113 CAASE |
| D61EX, D61PX |
| 424-16-11161 CAASE |
| 538, 542, 545, 558, GD755, GD825A, GH320, HD255, HD325, HD405, HD465, HD605, WA350, WA380, WA400, WA420, WA450, WA470, WA500, WA600, WA700, WA800, WA900, WD600, WF450T, WF600T |
| 281-13-11211 CAASE,DRIVE |
| WS16 |
| 101-810-1132 CAASE,FINAL DRIVE |
| D20P, D21P |
| 23A-15-00141 CAASE ASS'Y |
| GD505A, GD511A, GD521A, GD525A |
| 709-61-11420 CAASE |
| D275A, D375A, D475A |
| 234-902-7311 CAASE,R.H. (WITHOUT FENDER) |
| GD40HT |
| 6110-20-1300 CAASE ASS'Y |
| 4D120 |
| 6110-20-1306 CAASE ASS'Y |
| 4D120 |
| 234-22-00210 CAASE ASS'Y |
| GD705A, GH320 |
| Pos. | Part No | Qty | Parts name | Comments |
| 208-27-00312 | [2] | Final Drive Assembly Komatsu | 750 kg. | |
| ["SN: 70788-UP"] analogs:["2082700242", "2082700241", "2082700240", "2082700243", "2082700311"] |$0. | ||||
| 208-27-00311 | [2] | Final Drive Assembly Komatsu | 750 kg. | |
| ["SN: 70724-70787"] analogs:["2082700242", "2082700241", "2082700240", "2082700243", "2082700312"] |$1. | ||||
| 208-27-00243 | [2] | Final Drive Assembly Komatsu | 750 kg. | |
| ["SN: 70001-70723", "SCC: A2"] analogs:["2082700242", "2082700241", "2082700240", "2082700312", "2082700311"] |$2. | ||||
| 706-8J-01030 | [1] | Motor Assembly Komatsu OEM | 220 kg. | |
| ["SN: 70788-UP"] analogs:["7068J01011", "7068J01012", "7068J01031", "R7068J01031"] |$3. | ||||
| 706-8J-01012 | [1] | Motor Assembly Komatsu OEM | 220 kg. | |
| ["SN: 70001-70787"] analogs:["7068J01011", "7068J01030", "7068J01031"] |$4. | ||||
| 1 | 706-8J-41110 | [1] | CAASE, Motor Komatsu | 110 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 706-8J-00013 | [1] | Cover Subassembly Komatsu | 57.1 kg. | |
| ["SN: 70001-UP", "SCC: C2"] analogs:["7068J00011", "7068J00012", "7068J71112"] |$6. | ||||
| 8 | 706-86-71310 | [1] | Pin, Dowel Komatsu | 0.022 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 9 | 706-8E-14191 | [5] | Plug Komatsu China | |
| ["SN: 70001-UP"] analogs:["890001288"] | ||||
| 10 | 07002-11823 | [5] | O-ring Komatsu | 0.36 kg. |
| ["SN: 70001-UP"] analogs:["0700201823"] | ||||
| 11 | 706-8J-71550 | [2] | Piston Komatsu China | |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 12 | 706-8J-71560 | [1] | Pin Komatsu China | |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 13 | 706-8J-71130 | [2] | Plug Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 14 | 07002-12434 | [2] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 70001-UP"] analogs:["0700202434", "0700213434"] | ||||
| 15 | 706-8J-71140 | [2] | Plug Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 17 | 20B-27-11210 | [1] | Bleeder Komatsu | 0.02 kg. |
| ["SN: 70001-UP"] | ||||
| 18 | 706-75-74540 | [2] | Valve Komatsu | 0.134 kg. |
| ["SN: 70001-UP"] | ||||
| 19 | 706-75-74550 | [2] | Spring Komatsu | 0.012 kg. |
| ["SN: 70001-UP"] | ||||
| 20 | 706-75-74850 | [2] | Plug Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 21 | 07002-13334 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 70001-UP"] analogs:["0700203334"] | ||||
| 22 | 708-8F-36120 | [2] | Ring Komatsu | 0.01 kg. |
| ["SN: 70001-UP"] | ||||
| 23 | 706-78-71280 | [2] | Spring Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 24 | 706-78-71230 | [2] | Plug Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 25 | 07002-13634 | [2] | O-ring Komatsu China | 0.013 kg. |
| ["SN: 70001-UP"] analogs:["0700203634"] | ||||
| 26 | 706-8E-14170 | [1] | Spring Komatsu | 0.01 kg. |
| ["SN: 70001-UP"] | ||||
| 27 | 706-8J-71150 | [1] | Spool Komatsu | 0.12 kg. |
| ["SN: 70001-UP"] | ||||
| 28 | 706-8J-71160 | [1] | Plug Komatsu | 0.16 kg. |
| ["SN: 70001-UP"] | ||||
| 30 | 706-86-53410 | [2] | Valve Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 31 | 706-8J-71170 | [2] | Plug Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 32 | 07002-11023 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 70001-UP"] analogs:["0700201023"] | ||||
| 33 | 708-8E-16180 | [1] | Valve Komatsu | 0.004 kg. |
| ["SN: 70001-UP"] | ||||
| 34 | 706-8J-71181 | [1] | Valve Komatsu China | |
| ["SN: 70001-UP"] analogs:["7068J71180"] | ||||
| 35 | 708-8E-16160 | [1] | Plug Komatsu | 0.01 kg. |
| ["SN: 70001-UP"] | ||||
| 37 | 706-8J-71190 | [1] | Plug Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 38 | 07002-11223 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 70001-UP"] analogs:["0700201223"] | ||||
| 39 | 07000-15275 | [1] | O-ring Komatsu | 0.032 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 40 | 07000-12012 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 70001-UP", "SCC: C2"] analogs:["0700002012", "7082E11790"] | ||||
| 41 | 01252-62060 | [8] | Bolt, Hexagon Socket Head Komatsu China | |
| ["SN: 70001-UP", "SCC: C2"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
