| カテゴリ: | トラベルモーターと最終駆動 | 部品番号: | 144-15-17101 144-15-00030 1441517100 |
|---|---|---|---|
| 製品名: | ユニバーサルジョイント | 機械番号: | D65A D65P |
| 応用: | ブルドーザー、積込み機 | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Komatsu bulldozer universal joint,D65A D65P spare parts,bulldozer universal joint with warranty |
||

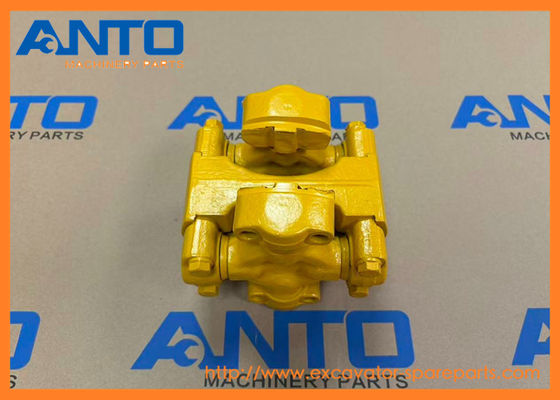

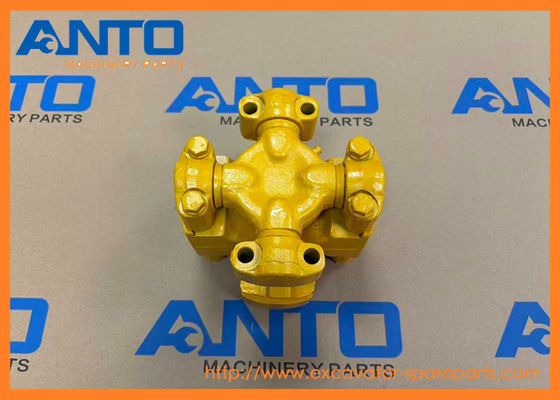

144-15-17101 144-15-00030 1441517100 Universal Joint KOMATSU Bulldozer Spare Parts For D65A D65P
Specifiion
| Category | Travel Motor and Final Drive |
| Name | Universal Joint |
| Parts No | 144-15-17101 144-15-00030 1441517100 |
| Machine Number | D65A D65P |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Cross (Spider): A central, X-shaped component with four cylindrical "trunnions" (protruding arms) at its ends.
2.Bearings: Needle roller bearings (or bushing bearings) press-fitted into the ends of the trunnions, reducing friction between the cross and yokes.
3.Yokes: Two fork-shaped components (input and output yokes) that connect to the rotating shafts. Each yoke has two holes to fit over the cross’s trunnions, creating a pivot point.
4.Seals: Rubber or polyurethane seals around the bearings to retain grease and prevent contamination from dirt, water, or debris.
BULLDOZERS D65A D65P
CRAWLER LOADERS D66S Komatsu
| 142-12-13101 UNIVERSAL JOINT A. |
| D66S |
| 134-12-71110 UNIVERSAL JOINT |
| D61EX, D61PX |
| 134-12-61141 UNIVERSAL JOINT |
| D61E, D61EX, D61PX, D68ESS |
| 144-10-12220 UNIVERSAL JOINT |
| D60PL |
| 144-15-00030 UNIVERSAL JOINT A. |
| D60A, D60P, D60PL, D65A, D65E, D65P, D65S |
| 144-10-12210 UNIVERSAL JOINT A. |
| BF60, D60A, D60E, D60F, D60P, D65A, D65E, D65P, D70, D70LE, D75A |
| 4000289M91 UNIVERSAL JOINT |
| D600D |
| 154-20-71111 UNIVERSAL JOIN |
| D85EX, D85MS, D85PX, DRAWBAR, |
| 154-20-02001 UNIVERSAL JOINT A. |
| D85A, D85P |
| 154-20-02100 UNIVERSAL JOINT A. |
| D80A, D80E, D80P, D85A, D85E, D85P |
| 150-11-00097 UNIVERSAL JOINT A. |
| D80A, D80P, D85A |
| 4021026M91 UNIVERSAL JOINT |
| D700D, L700D |
| 4101186M91 UNIVERSAL JOINT |
| D670E |
| Pos. | Part No | Qty | Parts name | Comments |
| 144-15-17101 | [1] | UNIVERSAL JOINT A. Komatsu | 7.6 kg. | |
| ["SN: 50001-UP"] analogs:["1441500030", "1441517100"] |1. | ||||
| 1. | 145-14-00190 | [2] | SPIDER ASS'Y Komatsu China | 2.125 kg. |
| ["SN: 50001-UP"] analogs:["1351400030", "1451435110W", "1451435110", "2322052110", "2812011200"] | ||||
| 2 | 07020-00000 | [1] | FITTING,GREASE Komatsu China | 0.006 kg. |
| ["SN: 50001-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"] | ||||
| 3. | 144-15-16120 | [1] | YOKE Komatsu | 2.96 kg. |
| ["SN: 50001-UP"] | ||||
| 4. | 131-10-46230 | [8] | BOLT Komatsu | 0.039 kg. |
| ["SN: 50001-UP"] analogs:["0737201045", "1311056110"] | ||||
| 5. | 01602-01030 | [8] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 50001-UP"] analogs:["0160211030"] | ||||
| 6 | 131-10-56110 | [8] | BOLT Komatsu | 0.039 kg. |
| ["SN: 50001-UP"] analogs:["0737201045", "1311046230"] | ||||
| 7 | 01602-21030 | [8] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 50001-UP"] analogs:["YM22217100000"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
