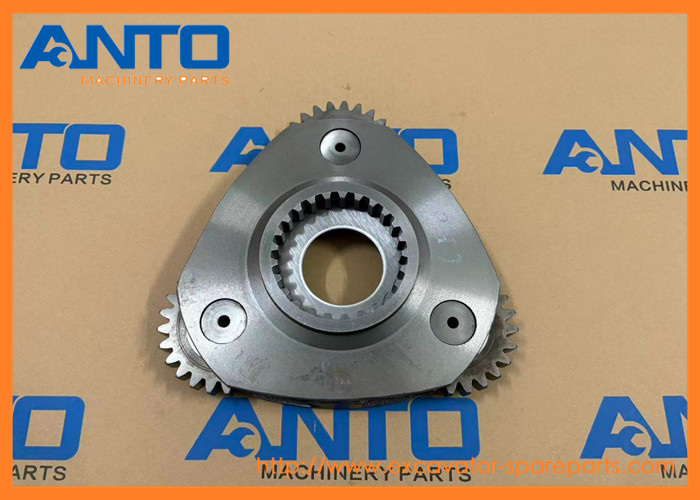

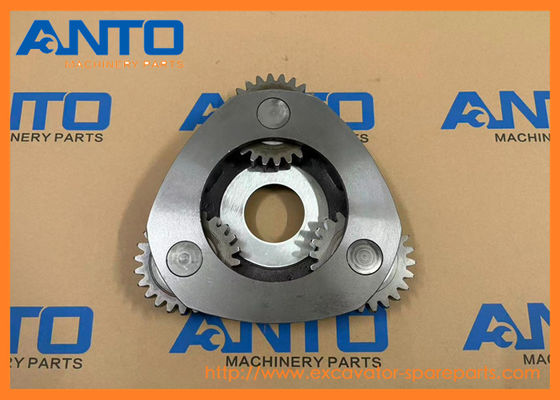

1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2

私はポールからの助けを認めます、彼はprefessional、どんな部品を私が必要とするか丁度知っています。私のCATは問題なく働くことを戻りました。

—— Raphael

最終的なドライブを得、美しい私は考えます。私達は私の機械今再度働くことを行きますそれを日立私達のZX330掘削機で組み立ててもらうことを持っています。本当にありがとう

—— ケビン

速い郵送物は、着かれた部品良質である、私達のエンジンは最高で修理され、完全に力を動かしている。ありがとう、神は賛美する。

—— モハメッド

オンラインです

1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2

1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2
1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2 1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2

大画像 :  1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2

商品の詳細:
起源の場所: 中国
ブランド名: OEM
モデル番号: 1010474
お支払配送条件:
最小注文数量: 1個のPC
価格: 174 USD
パッケージの詳細: 重い部品用の木製の箱、軽い部品用の紙のカートン
受渡し時間: 3〜7営業日
支払条件: T/T、D/P、D/A、Western Union、L/C、MoneyGram
供給の能力: 100-2000
詳細製品概要
カテゴリ: トラベルドライブ部品 部品番号: 1010474
製品名: キャリア 機械番号: EX300 EX300-2
応用: 掘削機 リードタイム: 配達のために1〜3日
パッキング: 標準輸出カートン
ハイライト:

Hitachi excavator spare parts EX300

,

Carrier excavator fittings EX300-2

,

Excavator replacement parts with warranty

  • 1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2



  • Specifiion

Category Travel Drive Parts
Name Carrier
Parts No 1010474
Machine Number EX300 EX300-2
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT
Packing As request or standard packing





  • Key functions

1.Planetary Gear Mounting: Secures planetary gears in precise alignment, ensuring efficient torque transfer between the sun gear and output flange. Misalignment (from a damaged Carrier) causes gear tooth chipping and uneven wear.



2.Torque Transmission: Acts as the "middleman" in the swing drive’s power flow, converting the planetary gears’ orbital motion into rotational torque for the upper structure.



3.Load Bearing: Supports the combined weight of the upper structure and dynamic loads from swing operations (e.g., digging while rotating), preventing the swing drive from collapsing or shifting.



4.Component Protection: Shields internal gears and bearings from external debris (e.g., dirt, rocks) and guides lubricating oil to critical contact points, extending the swing drive’s service life.





  • Compatible models

EXCAVATORS EX300 EX300-2 Hitachi





  • More other carrier applied to HITACHI heavey machine
1014809 CARRIER
270C LC JD, CX700HD, CX900, CX900-2, CX900HD, EX270-5, EX280H-5, EX300-2, EX300-3, EX300-3C, EX310H-3C, SCX700HD, SCX900, SCX900HD, SCX900HD-C, ZX270, ZX270-HHE, ZX280LC-AMS, ZX280LC-HCME, ZX300W

1010468 CARRIER
EX270, EX300, EX300-2

1014808 CARRIER
270C LC JD, CX700HD, CX900, CX900-2, CX900HD, EX270-5, EX280H-5, EX300-2, EX300-3, EX300-3C, EX310H-3C, SCX700HD, SCX900, SCX900HD, SCX900HD-C, ZX270, ZX270-HHE, ZX280LC-AMS, ZX280LC-HCME, ZX300W

1010475 CARRIER
EX300, EX300-2

2023371 CARRIER
EX270, EX300

2024993 CARRIER
EX270, EX300

2033936 CARRIER
EX270, EX300

0952102 CARRIER (1)
SCX700-2, SCX800-2, SCX800HD-2

563G0-60121 CARRIER
ZW220, ZW220-DO

56190-71811 CARRIER ASSY
LX70-7, ZW100, ZW100-DO, ZW100-G

2031036 CARRIER
EX60-2, EX60-3, EX60LCK-3, EX60LCT-3, EX60T-2, EX60WD-2, EX75UR, EX75UR-3, EX75URLC-3

2016633 CARRIER
UH103

1035047 CARRIER
ZX670LC-5B, ZX670LC-5G, ZX670LCH-5B, ZX670LCH-5G, ZX670LCR-5G

1027160 CARRIER
ZX200, ZX225US, ZX225US-E, ZX225US-HCME, ZX225USR, ZX225USR-E, ZX225USRK, ZX230, ZX230-HHE, ZX240H, ZX240K, ZX240LC-HHE, ZX250-HCME, ZX450

1019147 CARRIER
CHR70, EX200-3, EX200-3C, EX200-3E, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200K-3, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX2...

1026081 CARRIER
EX135UR-5, EX135US-5, EX135USR, EX135USRK, EX140US-5

1008731 CARRIER
UH103, UH123

0887201 CARRIER
UCX300, ZX210W, ZX210W-AMS, ZX300W





  • Directory listing
Pos. Part No Qty Parts name Comments
0 9069422 [1] MOTOR;OIL Y 9082057
0 9082057 [1] MOTOR;OIL
00-52. 9069550 [2] TRAVEL DEVICE ASS'Y Y 9096486
00-59. 9096486 [2] TRAVEL DEVICE ASS'Y
00A. 9071903 [1] VALVE;BRAKE Y 9082178
00A. 9082178 [1] VALVE;BRAKE
2 1010465 [1] HOUSING
3 4066695 [1] SEAL;GROUP
4 4192975 [2] BRG.;ROL.
5 1010466 [1] DRUM
6 1010467 [1] SPROCKET
7 A590920 [16] WASHER;SPRING
8 J932060 [16] BOLT
10 3036256 [1] NUT
11 4192974 [1] PLATE;LOCK
12 J901225 [2] BOLT
14 1010468 [1] CARRIER
15 3036257 [3] GEAR;PLANETARY
16 4192976 [6] BRG.;NEEDLE
17 4201913 [6] PLATE;THRUST Y 4219595
17 4219595 [6] PLATE;THRUST
18 4192978 [3] PIN
19 4192021 [3] PIN;SPRING
20 3036258 [1] GEAR;SUN
23 1010473 [1] GEAR;RING
24 A590916 [26] WASHER;SPRING
25 J931645 [24] BOLT
27 1010475 [1] CARRIER
28 4192979 [2] SPACER
29 3036264 [3] GEAR;PLANETARY
30 4190117 [3] BRG.;NEEDLE
31 4192982 [6] PLATE;THRUST
32 4144558 [3] PIN
33 4144525 [3] PIN;SPRING
34 3036266 [1] GEAR;SUN
35 1010474 [1] CARRIER
37 3036265 [3] GEAR;PLANETARY
38 4108021 [3] BRG.;NEEDLE
39 4192983 [6] PLATE;THRUST
40 4192977 [3] PIN
41 4192020 [3] PIN;SPRING
42 2023188 [1] SHAFT;PROP.
43 4204756 [1] CAP
44 2024646 [1] COVER P 2028461
44 2028461 [1] COVER P 2031912
44 2028461 [1] COVER P 4278011
44 2028461 [1] COVER P 4278168
44 2028461 [1] COVER P 930451
44 2031912 [1] COVER
44 2031913 [1] COVER
45 A590912 [12] WASHER;SPRING
47 4245797 [3] PLUG
47 94-2013 [2] PLUG
47 94-2013 [3] PLUG Y 4245797
49 J931685 [2] BOLT
50 4193063 [1] O-RING
52 J011230 [12] BOLT;SEMS
52 M221228 [12] BOLT I J011230
54 M492564 [2] SCREW;DRIVE
55 3053559 [1] NAME-PLATE
57 4277474 [1] PIN;STOPPER
57 4278011 [1] PIN;STOPPER
58 4278168 [1] BRG.;BALL
59 930451 [1] RING;RETAINING
60 J932080 [34] BOLT
61 A590920 [34] WASHER;SPRING

1010474 Carrier HITACHI Excavator Spare Parts Fitting For EX300 EX300-2 0







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
