| カテゴリ: | トラベルモーター | 部品番号: | XKAY-00965 |
|---|---|---|---|
| 製品名: | シャフトケーシング | 機械番号: | R110-7 R140LC-7 R210LC7 R215LC7 |
| 応用: | 掘削機 | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | HYUNDAI excavator travel motor shaft,R110-7 travel motor casing,R140LC-7 excavator motor parts |
||

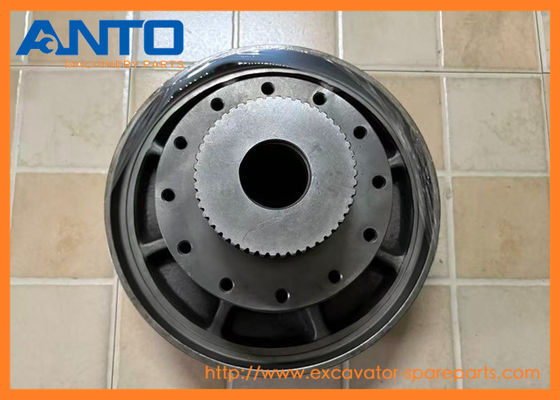

XKAY-00965 Shaft Casing HYUNDAI Excavator Travel Motor Parts Fit For R110-7 R140LC-7 R210LC7
Specifiion
| Category | Travel Motor Parts |
| Name | Shaft Casing |
| Parts No | XKAY-00965 |
| Machine Number | R110-7 R140LC-7 R210LC7 R215LC7 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Critical Component Shielding: Protects expensive, high-precision parts (e.g., drive shafts, bearings) from damage, reducing maintenance costs and downtime.
2.Lubrication System Integrity: Retains lubricating oil and prevents contamination, ensuring smooth operation of rotating components and extending their service life.
3.Structural Stability: Reinforces the power transmission system’s connection to the machine frame, maintaining alignment during heavy loads or vibration.
4.Safety Enhancement: Prevents exposed rotating parts from posing hazards to operators or bystanders, complying with industrial safety standards.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD220LC9 Hyundai
| 39Q6-11280 CASING A-VALVE |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| 39Q6-41110 CASING |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| XKAQ-00962 CASING |
| HX160L, HX180L, R160LC7, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC7, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R21... |
| 39Q4-11110 CASING |
| HW140, HX140L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| XKAQ-00987 CASING |
| R140LC-7, RD110-7 |
| XKAY-01837 CASING-SHAFT |
| R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| 135308A CASING-VALVE |
| R170W3, R180LC3, R200NLC3, R200W3, R210LC3H, R210LC7, R320LC3 |
| 113357B CASING(F) |
| R200W3, R210LC3H, R210LC7 |
| 39Q6-11281 CASING A-VALVE |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| 39Q6-12171 CASING |
| HX220L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, ... |
| XKAQ-00659 CASING-SHAFT |
| R210LC7A |
| 39Q6-12172 CASING |
| HW210, HX160L, HX220L, HX220NL, HX235L, R160LC9, R160LC9A, R160LC9S, R160W9A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| XKAQ-00250 CASING |
| R140LC-7, R140W7 |
| XJBN-01046 CASING-PUMP |
| HW140, HX140L, HX160L, HX180L, R110-7A, R1200-9, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7A, R140W9, R140W9A, R140W9S, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7A, R170W9 |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4139D |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | |
| 1 | XKAY-00965 | [1] | CASING-SHAFT | |
| 2 | XKAY-00443 | [10] | PLUG | |
| K3. | XKAY-00444 | [1] | SEAL-OIL | |
| A. | XKAY-00445 | [2] | PISTON KIT-SWASH | INCL 4,5 |
| N4. | XKAY-00446 | [1] | PISTON-SWASH | |
| N5. | XKAY-00447 | [1] | RING-PISTON | |
| 6 | XKAY-00448 | [1] | SHAFT | |
| 7 | XKAY-00449 | [1] | BEARING | |
| 8 | XKAY-00450 | [2] | BALL-STEEL | |
| 9 | XKAY-01320 | [1] | SWASH PLATE | |
| B. | XKAY-00452 | [1] | ROTARY KIT | INCL B-A,B,C |
| B-A. | XKAY-00453 | [1] | KIT-CYLINDER BLOCK | INCL 10-15,70 |
| N10. | XKAY-00824 | [1] | CYLINDER BLOCK | |
| N11. | JA1L4006 | [1] | SPRING SEAT | |
| N12. | JA1L4007 | [1] | SPRING | |
| N13. | JA1L4008 | [1] | END PLATE | |
| N14. | SR62CH | [1] | SNAP RING | |
| N15. | JA1L4009 | [3] | PIN | |
| B-B. | JA3E5010 | [1] | RETAINER KIT | INCL 16,17 |
| N16. | JA1L4010 | [1] | BALLGUIDE | |
| N17. | JA1L4011 | [1] | SET PLATE | |
| B-C. | JA3E5011 | [1] | PISTON KIT | INCL 18 |
| N18. | JA1L4012 | [9] | PISTON ASS'Y | |
| 19 | JA1L4013 | [3] | FRICTION PLATE | |
| 20 | JA1L4014 | [3] | PLATE | |
| 21 | JA1L4015 | [1] | PARKING PISTON | |
| K22. | AO263A | [1] | O-RING | |
| K23. | JA1L4016 | [1] | BACK UP RING | |
| K24. | AO266A | [1] | Deleted... | |
| K25. | JA1L4017 | [1] | BACK UP RING | |
| 26 | JA1L4018 | [1] | ORIFICE | |
| K27. | PO007B | [3] | Deleted... | |
| K28. | AO268B | [1] | Deleted... | |
| 65 | JA1L4043 | [4] | PIN | |
| 69 | BB6207 | [1] | BEARING | |
| 70 | JA1L4047A | [1] | Deleted... | |
| K. | JA3E5006 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
