商品の詳細:
お支払配送条件:
|
| カテゴリ: | 駐車ブレーキ | 部品番号: | 279-9444 2799444 |
|---|---|---|---|
| 製品名: | ブレーキ内膜キット | 機械番号: | 725 725C 730 730C 735 735B 740 740B |
| アプリケーション: | 関節式トラック | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | C13 C18 excavator brake lining kit,3176C excavator brake parts,730C excavator spare parts with warranty |
||

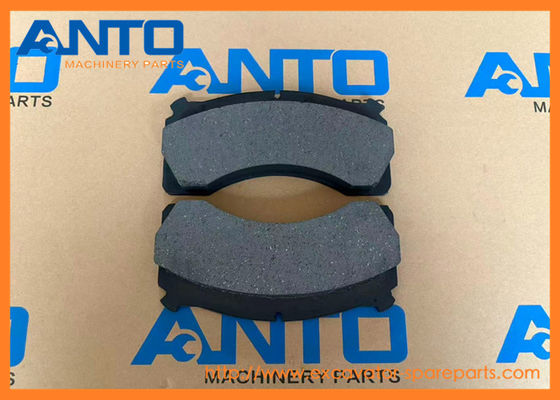

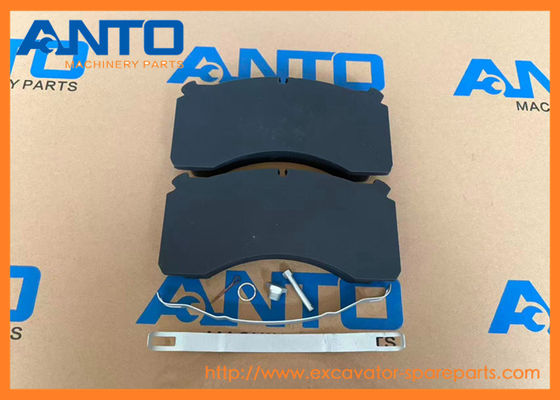

279-9444 2799444 Brake Lining Kit Excavator Spare Parts Fit For C13 C18 3176C 725C 730C
Specifiion
| Category | Parking Brake |
| Name | Brake Lining Kit |
| Parts No | 279-9444 2799444 |
| Machine Number | 725 725C 730 730C 735 735B 740 740B |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Stopping Power: Provides reliable friction to slow or stop massive vehicles (e.g., 777F trucks weighing over 100 tons when loaded), even under extreme conditions like steep grades or heavy payloads.
2.Heat Resistance: Withstands the intense heat generated during heavy braking (up to 600°C), preventing brake fade and ensuring consistent performance throughout long work cycles.
3.Wear Resistance: The durable composite material resists abrasion, extending service life and reducing maintenance frequency – critical for minimizing downtime in mining or construction operations.
ARTICULATED TRUCK 725 725C 730 730C 735 735B 740 740B
EJECTOR TRUCK 730 730C 740 740B C.at.erpillar.
| 2006282 KIT-SEAL |
| 120M, 12M, 140M, 14M, 160M, 16M, 24M, 583T, 587R, 587T, 725, 730, 797, 797B, 928H, 938H, 950H, 962H, 966H, 972H, 994F, CB-44B, CB-54B, D10T, D11T, IT28G, IT38H, IT62H |
| 4E5550 KIT-SEAL |
| 725, 730, 814F, 815F, 816F, 918F, 924F, 938F, 950F, 950F II, 960F, 966F II, 970F, IT18F, IT24F, IT28F, IT38F |
| 1421743 KIT-SEAL |
| 621H, 621K, 623H, 623K, 623K LRC, 627H, 627K, 627K LRC, 725C, 730C, 814F, 815F, 816F, 924F, 938F, 950F II, 960F, 966F, 966F II, 970F, IT24F, IT28F, IT38F, R1300, R1300G, R1300G II |
| 1410889 KIT-SEAL |
| 2470C, 2570C, 2670C, 2864C, 330B L, 553C, 563C, 573C, 584, 586C, 621H, 621K, 623H, 623K, 623K LRC, 627H, 627K, 627K LRC, 725, 730, 735, 740, 824K, 825K, 826K, 834K, 836K, 902, 906, 908, 988K, AD30, AD... |
| 2015121 KIT-SHAFT |
| 621H, 725, 725C, 730, 730C, 735, 735B, 740, 740B, 770, 772, 773F, 775F, 777F, D250E II, D300E II, D350E II, D400E II |
| 9V3225 KIT-PISTON |
| 24H, 24M, 69D, 735, 740, 769C, 769D, 771C, 771D, 772B, 773B, 773D, 773E, 775B, 775D, 775E, 776C, 776D, 777, 777D, 784B, 784C, 785, 785B, 785C, 789, 789B, 789C, 793B, 793C, 797, 824C, 980C, 980F, 980F ... |
| 1456905 KIT-SEAL |
| 69D, 725C, 730C, 735, 735B, 740, 740B, 769C, 769D, 771C, 771D, 772B, 773B, 773D, 775B, 775D, 776C, 776D, 777D, 797, 797B, D250E II, D300E II, D350E II, D400E II |
| 2799441 KIT-SHAFT |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 1857674 KIT-SEAL |
| 725, 730 |
| 4160092 KIT-HYD CYLINDER SEAL |
| 725, 730, 735, 740 |
| 2040273 KIT-REPAIR |
| 735, 735B, 740, 740B, 770, 772 |
| 2179894 KIT-SEAL |
| 735, 735B, 740, 740B |
| 2799442 KIT-BAR |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 2799441 KIT-SHAFT |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 2799440 KIT-PIN |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 2799439 KIT-SLEEVE |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 2799438 KIT-ADJUSTER |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 2673540 KIT-LEVER |
| 725, 725C, 730, 730C, 735, 735B, 740, 740B |
| 2126262 KIT-SEAL |
| 725, 730 |
| 2274012 KIT-SEAL |
| 725, 725C, 730, 730C |
| 2040275 KIT-REPAIR |
| 725, 730, 735, 740 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 206-0408 | [1] | ACTUATOR AS-PARKING BRAKE | |
| 154-8042 | [1] | ACTUATOR (PARKING BRAKE) | ||
| 206-0407 | [1] | BOOT | ||
| 2 | 172-3931 W | [1] | PIN | |
| 3 | 172-3932 | [2] | SPACER | |
| 4 | 3B-4610 W | [1] | PIN-COTTER | |
| 5 | 8T-4223 | [2] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 6 | 8T-4244 M | [2] | NUT (M12X1.75-THD) | |
| 7 | 346-0331 | [1] | END-YOKE ROD | |
| 8 | 8C-8992 PM | [6] | BOLT-LOCKING (M12X1.75X30-MM) | |
| 9 | 8T-5091 UVM | [2] | BOLT (M8X1.25X20-MM) | |
| 10 | 8T-6869 UVWM | [1] | BOLT (M8X1.25X60-MM) | |
| 11 | 5C-7261 UVWM | [1] | NUT (M8X1.25-THD) | |
| 12 | 172-3934 J | [2] | SPRING | |
| 13 | 6C-8608 JTUV | [1] | PIN | |
| 14 | 3B-4607 JUV | [1] | PIN-COTTER | |
| 15 | 172-3935 JPTU | [1] | PLUG | |
| 16 | 4W-9026 JPTU | [1] | GASKET | |
| 17 | 6V-1506 U | [1] | FITTING-GREASE | |
| AVAILABLE REPAIR KIT(S): | ||||
| 279-9438 P | [1] | KIT-ADJUSTER | ||
| (ALSO INCLUDES GEARS, BOX, RINGS, SPRING & SCREW) | ||||
| 279-9439 | [1] | KIT-SLEEVE | ||
| (INCLUDES BOLTS, PLATE, PINS, SEALS, PISTONS, SLEEVE ADJUSTERS, BLOCK, BEARING, RINGS, GEARS & CAP) | ||||
| 279-9440 T | [1] | KIT-PIN | ||
| (ALSO INCLUDES BOLTS, PINS, SEALS, COTTER, CAPS & BUSHINGS) | ||||
| 279-9441 U | KIT-SHAFT | |||
| (ALSO INCLUDES SHIELD, PLATE, BEARINGS, SEALS, WASHER, SHAFT & GASKETS) | ||||
| 279-9442 V | [1] | KIT-BAR | ||
| (ALSO INCLUDES GASKET) | ||||
| 279-9444 J | [1] | KIT-BRAKE LINING | ||
| (ALSO INCLUDES BRAKE SHOE AS) | ||||
| 279-9674 | [1] | KIT-SEAL | ||
| (INCLUDES SEALS, BOLTS & CAP) | ||||
| 345-8544 | [1] | KIT-BRAKE SADDLE | ||
| (INCLUDES SADDLE, CAPS & BOLTS) | ||||
| 342-9202 | [1] | KIT-BEARING | ||
| (INCLUDES BEARINGS) | ||||
| 267-3540 W | [1] | KIT-LEVER | ||
| (ALSO INCLUDES BEARING) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
| P | KIT MARKED P SERVICES PART(S) MARKED P | |||
| T | KIT MARKED T SERVICES PART(S) MARKED T | |||
| U | KIT MARKED U SERVICES PART(S) MARKED U | |||
| V | KIT MARKED V SERVICES PART(S) MARKED V | |||
| W | KIT MARKED W SERVICES PART(S) MARKED W |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
