商品の詳細:
お支払配送条件:
|
| カテゴリ: | isuzuスペアパーツ | 部品番号: | 8-98147945-0 02/802428 |
|---|---|---|---|
| 製品名: | キャップバルブシール | エンジン番号: | 4JJ1 4JK1 |
| アプリケーション: | 掘削機 | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | ISUZU excavator cap valve seal,Excavator spare parts for 4JJ1 4JK1,ISUZU valve seal with warranty |
||

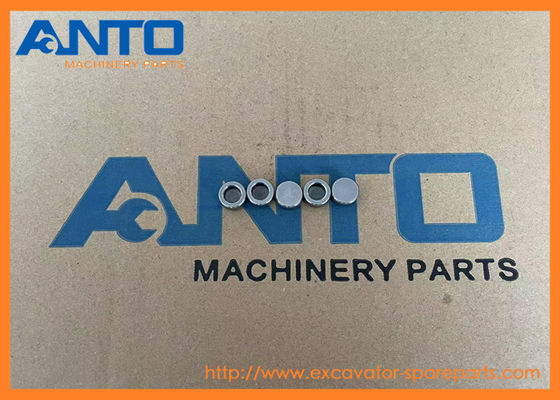

8-98147945-0 02/802428 Cap Valve Seal ISUZU Excavator Spare Parts Fitting For 4JJ1 4JK1
Specifiion
| Category | ISUZU Spare Parts |
| Name | Cap Valve Seal |
| Parts No | 8-98147945-0 02/802428 |
| Engine Number | 4JJ1 4JK1 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Installed between the valve cap and valve body (or injector housing) via compression fit |
| 2. Compression creates a leak-tight barrier that traps fluids inside the valve assembly | |
| 3. Blocks external contaminants from entering, preventing valve wear or malfunction | |
| Core Functions | 1.Prevent fluid leakage (fuel, oil, hydraulic fluid) from valve cap interfaces |
| 2.Block dust, debris, and moisture to protect internal valve components | |
| 3.Maintain seal integrity under engine vibration and temperature changes | |
| 4.Extend service life of valves, injectors, and related systems |
CP220-3 PZX135USK-3F VR516FS ZX110-3 ZX110-3-AMS ZX110-3-HCME ZX110M-3 ZX110M-3-HCME ZX120-3 ZX130-3-AMS ZX130-3-HCME ZX130K-3 ZX135US-3 ZX135US-3-HCME ZX135US-3F-HCME ZX135USK-3 ZX140W-3 ZX140W-3-AMS ZX140W-3DARUMA ZX145W-3 ZX160LC-3 ZX160LC-3-AMS ZX160LC-3-HCME ZX180LC-3 ZX180LC-3-AMS ZX180LC-3-HCME
| 4298608 CAP |
| EX100-2, EX100-3, EX100-3C, EX100-5, EX100-5 JPN, EX100M-2, EX100M-3, EX100M-5, EX100WD-3, EX100WD-3C, EX120-2, EX120-3, EX120-3C, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, E... |
| 4343268 CAP |
| 270C LC JD, CP220-3, CX1000, CX1100, CX350DR, CX400, CX500, CX500DR, CX500S, CX500W, CX500W-C, CX550, CX650PTR, CX700, CX700 JPN, EX100-5, EX100-5 JPN, EX100M-5, EX1100-3, EX120-5, EX120-5 JPN, EX120-... |
| 4361638 CAP |
| 270C LC JD, CHR70, CP220-3, CS125-3, EG110R, EG40R, EG40R-C, EG65R-3, EG70R, EG70R-3, EX100-3, EX100-5, EX100-5 JPN, EX100M-3, EX100M-5, EX100WD-3, EX100WD-3C, EX120-3, EX120-3C, EX120-5, EX120-5 JPN,... |
| 4396809 CAP |
| 270C LC JD, CHR70, CP220-3, EG65R-3, EX100-5, EX100-5 JPN, EX100M-5, EX100WD-3, EX120-3C, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX125WD-5, EX130H-5, EX130H-5 J... |
| 4272375 CAP |
| CC135-3, CC135-3A, CC135C-3, CC135C-3A, CC150-3, CC150-3A, CC150C-3, CC150C-3A, CP220-3, CS125-3, EG110R, EG30, EG70R, EX12, EX12-2, EX15, EX15-2, EX17U, EX17UNA, EX18-2, EX20U-3, EX20UR, EX20UR-2, EX... |
| 8941332075 CAP; OIL FILLER |
| 870G LC, CP220-3, DX40-C, DX40M-C, DX40MM-C, DX45-C, DX45M-C, DX45MM-C, EG30, EX12, EX15, EX20UR, EX20UR-2, EX27U, EX27UNA, EX30, EX30U, EX30UR, EX30UR-2, EX35, EX35U, EX35UNA, EX40, EX40U, EX40UR, EX... |
| 4698075 CAP;RUBBER |
| VR512, VR512-2, VR516FS, ZR950JC |
| 4664579 CAP |
| ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3, ZX145W-3-AMS, ZX170W-3, ZX170W-3-AMS, ZX170W-3DARUMA, ZX190W-3, ZX190W-3-AMS, ZX190W-3DARUMA, ZX210W-3, ZX210W-3-AMS, ZX210W-3DARUMA, ZX210W-3HCMC, ZX... |
| 1256106 CAP |
| EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC... |
| 4457732 CAP |
| ZX135US-3, ZX75US-3 |
| Y413941 CAP |
| CP220-3 |
| 4701041 CAP |
| ZX130K-3 |
| 4722033 CAP |
| ZX40U-5A, ZX40UR-3, ZX40UR-3D, ZX40WM-3D, ZX50U-5A, ZX50U-5N, ZX55UR-3, ZX55UR-3D |
| Pos. | Part No | Qty | Parts name | Comments |
| 2 | 8980031293 | [1] | CAMSHAFT; INL | |
| 3 | 8980031303 | [1] | CAMSHAFT; EXH | |
| 4 | 8980169730 | [8] | VALVE; INL | |
| 5 | 8980169741 | [8] | VALVE; EXH | |
| 053(A). | 8980250711 | [4] | SHAFT; ROCKER ARM | INLET JBK |
| 053(B). | 8980250741 | [4] | SHAFT; ROCKER ARM | EXH JBK |
| 053(C). | 8973648092 | [4] | SHAFT; ROCKER ARM | INLET OTICS |
| 053(D). | 8973648112 | [4] | SHAFT; ROCKER ARM | EXH OTICS |
| 056(A). | 8980254960 | [16] | RING; SNAP,ROCKER ARM | JBK |
| 056(B). | 8981094700 | [16] | RING; SNAP,ROCKER ARM | OTICS |
| 65 | 8942395010 | [32] | COLLAR; SPLIT | |
| 66 | 8980298701 | [16] | CAP; VLV STEM END | A |
| 66 | 8981479450 | [16] | CAP; VLV STEM END | |
| 68 | 8980388810 | [16] | SPRING; VLV | |
| 071(A). | 8971445840 | [16] | SEAT; SPR | LOWER |
| 071(B). | 8980170670 | [16] | SEAT; SPR | UPPER |
| 72 | 8973286470 | [16] | SEAL; VLV GUIDE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 078(A). | 8980250593 | [16] | ARM; ROCKER | INLET & EXH JBK |
| 078(B). | 8980295375 | [16] | ARM; ROCKER | INLET & EXH OTICS |
| 81 | 8980254970 | [16] | SCREW; ADJ. ROCKER ARM | JBK |
| 81 | 8980298930 | [16] | SCREW; ADJ. ROCKER ARM | OTICS |
| 83 | 9098445740 | [16] | NUT; ADJ. SCREW,LK | JBK |
| 087(A). | 583308250 | [8] | BOLT; ROCKER SHAFT | M8X25 HEX SOCKET |
| 087(B). | 583308400 | [8] | BOLT; ROCKER SHAFT | M8X40 HEX SOCKET |
| 107(A). | 8973123152 | [1] | SHAFT; IDLE GEAR | |
| 107(B). | 8973123221 | [1] | SHAFT; IDLE GEAR | |
| 112(A). | 8973815161 | [1] | GEAR; IDLE | Z=80 |
| 112(B). | 8973815203 | [1] | GEAR; IDLE | Z=35 |
| 114(A). | 280610600 | [2] | BOLT; IDLE GEAR | M10X60 FLANGE |
| 114(B). | 281612600 | [1] | BOLT; IDLE GEAR | M12X60 FLANGE |
| 133 | 8973123360 | [1] | GASKET; CHAIN TENSIONER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 136 | 280506160 | [2] | BOLT; TENSIONER | M6X16 FLANGE |
| 162 | 8973123311 | [1] | SPROCKET; IDLE | |
| 162 | 8981931790 | [1] | SPROCKET; IDLE | |
| 166 | 583306160 | [6] | BOLT; SPROCKET TO LAYSHAFT | M6X16 HEX SOCKET |
| 172 | 8979450670 | [1] | CHAIN; TIMING,CM/SHF | |
| 185 | 8979450681 | [1] | TENSIONER; CHAIN | |
| 190 | 911802060 | [2] | NUT; CHAIN TENSIONER | M6 FLANGE |
| 198 | 8979450690 | [1] | GUIDE; TIMING CHAIN | |
| 199 | 8973560611 | [1] | JET; OIL,TIMING CHAIN | |
| 200 | 1090701201 | [2] | BOLT; CHAIN GUIDE,LWR | M8X20 |
| 252(A). | 8980168920 | [1] | FLANGE; IDLE SHAFT | |
| 252(B). | 8980168930 | [1] | FLANGE; IDLE SHAFT | |
| 263 | 8972599730 | [4] | GASKET; CAM END | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 263 | 8981014720 | [4] | GASKET; CAM END | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 275 | 9081605100 | [1] | PIN; IDLE GEAR | OD=5 L=10 |
| 300 | 8979450700 | [1] | LEVER; TENSION,TIMING CHAIN | |
| 329 | 8980175391 | [1] | GEAR; INJ PUMP | Z=44 |
| 346 | 410106180 | [2] | STUD; CHAIN | M6X18 L=27 |
| 347 | 8973123301 | [1] | SPROCKET; I/PUMP | |
| 348 | 8973124232 | [1] | NUT; SPROCKET | M14 FLANGE |
| 349 | 8973123280 | [1] | PIVOT; CHAIN LEVER |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
