商品の詳細:
お支払配送条件:
|
| カテゴリ: | JCBスペアパーツ | 部品番号: | 25/105100 25/974100 |
|---|---|---|---|
| 製品名: | ソレノイドバルブ | 機械番号: | 1400B 1550B 214 215 |
| アプリケーション: | バックホーローダー | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | JCB backhoe loader solenoid valve,3CX 4CX excavator spare parts,JCB 1400B 1550B solenoid valve |
||

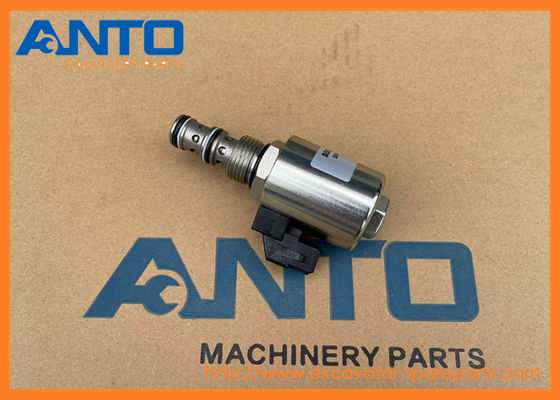

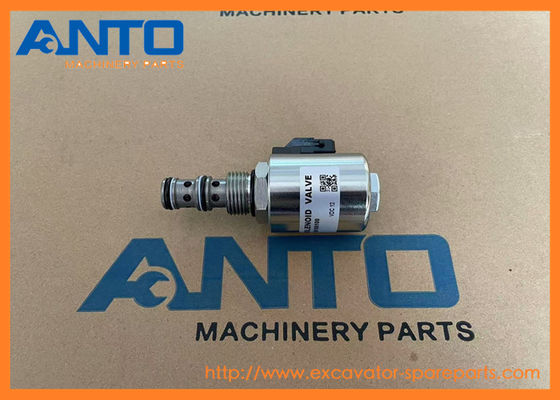

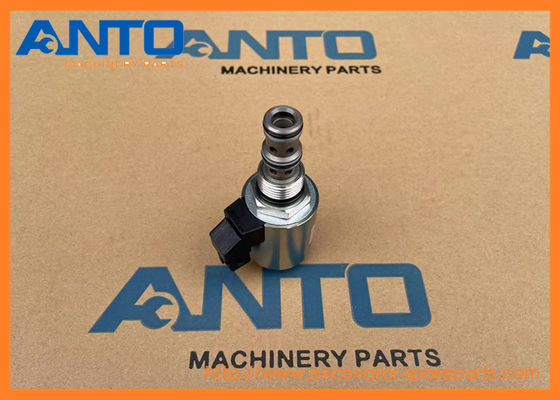

25/105100 25/974100 Solenoid Valve JCB Backhoe Loader Spare Parts For 3CX 4CX 1400B 1550B 214 215
Specifiion
| Category | JCB Spare Parts |
| Name | Solenoid Valve |
| Parts No | 25/105100 25/974100 |
| Machine Number | 1400B 1550B 214 215 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. When energized by the machine’s electrical system, the solenoid coil generates a magnetic field. |
| 2. The magnetic force moves the valve spool, opening or closing fluid passages in the valve body. | |
| 3. This controls the flow of hydraulic oil or fuel to the target component (e.g., cylinder, motor), activating or deactivating the machine function. | |
| 4. When de-energized, the spool returns to its original position (NO/NC) via a spring. | |
| Core Functions | - Controls hydraulic actuator movement (boom lift/lower, bucket curl/dump, machine travel) |
| - Regulates fuel flow in the engine fuel system (e.g., shut-off valve for safe engine stopping) | |
| - Enables precise, on-demand operation of machine functions via the operator’s control panel | |
| - Prevents unintended fluid flow, enhancing machine safety and efficiency |
LOADERS 3CX 4CX 1400B 1550B 214 215 JCB
| 25/220635 Valve Diverter |
| JCB |
| 25/220636 Valve Diverter |
| JCB |
| 25/222858 Valve Trailer Brake |
| JCB |
| 25/221052 Valve check |
| JCB |
| 20/950908 Valve pilot, DFR 1 |
| JCB |
| KSJ2465 Valve Remote Control |
| JCB |
| 335/C1595 Valve Pressure Relief |
| JCB |
| 347/22258 Valve Solenoid |
| JCB |
| 335/C1588 Valve Non Return |
| JCB |
| 332/F6361 Valve Pilot |
| JCB |
| 25/220651 Valve swing brake |
| JCB |
| 446/18400 Valve lubrication |
| JCB |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 813/50055 | [1] | Gasket | |
| 2 | 445/31000 | [1] | Adapter block assembly | |
| 2 | 449/51400 | [1] | Adapter block assembly | |
| 2 | 449/01200 | [1] | Adapter block assembly | |
| 2A. | 445/07304 | [1] | Spool | |
| 3 | 814/00307 | [1] | Spring | |
| 3 | 814/00230 | [1] | Spring NLA see MSS on Plug | |
| 3 | 814/00412 | [1] | Spring | |
| 4 | 445/07303 | [1] | Plug | |
| 4 | 816/80063 | [1] | Plug | |
| 5 | 1321/0308Z | [14] | Bolt | |
| 6 | 1420/0007Z | [16] | Washer (M8) | |
| 7 | 1321/3311Z | [2] | Bolt M8 x 45 | |
| 8 | 25/974100 | [1] | Valve solenoid c/w AMP connectors | |
| 8A. | 25/974002 | [1] | Coil | Vickers |
| 8A. | 25/974001 | [1] | Coil | JFP |
| 9 | 25/103000 | [3] | Valve solenoid | |
| 9A. | 25/103001 | [2] | Coil (ref 02/124661) | Vickers |
| 9A. | 35/900601 | [2] | Coil solenoid, round 63mm x 45mm x 19.41H | JFP |
| 10 | 35/100801 | [1] | Kit-seal solenoid valve | |
| 12 | 1392/3112Z | [12] | Capscrew M5 x 50mm | |
| 13 | 1321/3420Z | [1] | Bolt |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
