商品の詳細:
お支払配送条件:
|
| カテゴリ: | ハード ドア ガスのスプリング | 部品番号: | 421-54-43540 4215443540 |
|---|---|---|---|
| 製品名: | ヒンジ | 機械番号: | WA450 WA470 WA480 |
| アプリケーション: | ホイールローダー | リードタイム: | 配達のために1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Komatsu wheel loader hinge,WA470-6A spare parts hinge,WA480-6 excavator hinge |
||

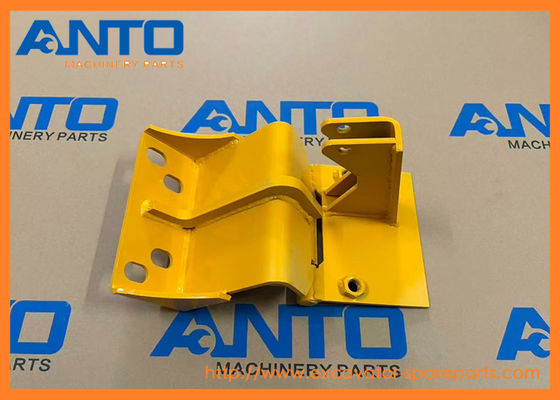

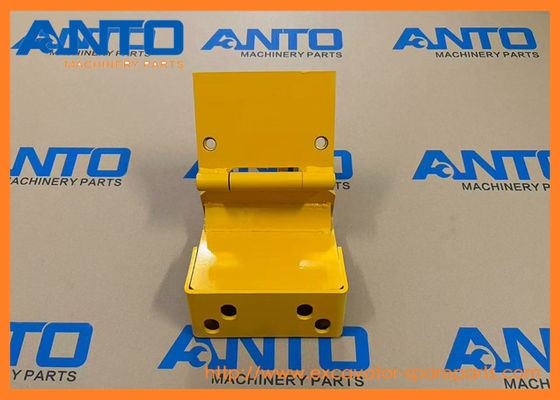

421-54-43540 4215443540 Hinge KOMATSU Wheel Loader Spare Parts For WA470-6A WA480-6
Specifiion
| Category | Hood, Door And Gas Spring |
| Name | Hinge |
| Parts No | 421-54-43540 4215443540 |
| Machine Number | WA450 WA470 WA480 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Fixed leaf is bolted to the equipment’s stationary structure (e.g., cab frame, engine compartment); rotating leaf is fastened to the movable component (e.g., door, hood) |
| 2. The pin inserts through aligned holes in both leaves, enabling the movable component to rotate open/closed | |
| 3. Bushings (if equipped) reduce friction between the pin and leaves, ensuring smooth, quiet movement | |
| 4. Heat-treated materials and corrosion-resistant coating maintain structural integrity under vibration and environmental stress | |
| Core Functions | 1. Enable smooth, controlled rotation of movable components (cab doors, hoods, access panels) for operator entry and maintenance |
| 2. Securely fasten two components while accommodating rotational movement | |
| 3. Withstand vibration and minor impacts to prevent component damage or misalignment | |
| 4. Resist corrosion and wear to ensure long-term reliability in construction environments |
WHEEL LOADERS WA450 WA470 WA480 Komatsu
| 421-04-31280 HINGE |
| AIR, WA380, WA430, WA450, WA470, WA480, WA500, WA600, WD600 |
| 416-09-12220 HINGE |
| GD555, GD655, GD755, HM250, HM400, HYDRAULIC, WA1200, WA150, WA150PZ, WA200, WA380, WA380Z, WA420, WA430, WA470, WA480, WA500, WD600 |
| 421-09-21360 HINGE (WELDED) |
| BATTERY, FRONT, HYDRAULIC, JV100WA, JV100WP, JV130WH, WA100, WA100M, WA120, WA1200, WA150, WA150PZ, WA180, WA180L, WA180PT, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA470, WA480, ... |
| 425-07-31340 HINGE (WELDED) |
| AIR, FRONT, HYDRAULIC, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| 421-06-24180 HINGE |
| AIR, FRONT, HYDRAULIC, WA380, WA430, WA470, WA500 |
| 423-54-44390 HINGE, WELDED |
| AIR, FRONT, WA250, WA320, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| 416-09-12230 HINGE |
| AIR, BATTERY, FRONT, HYDRAULIC, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA470, WA500, WA600 |
| 424-54-14120 HINGE |
| AIR, FRONT, WA1200, WA300, WA320, WA350, WA430, WA470, WA480, WA600, WD600 |
| 423-54-41340 HINGE (WELDED) |
| FRONT, WA150, WA380, WA430, WA470, WA480 |
| 421-54-43530 HINGE,L.H. |
| WA450, WA470, WA480 |
| LUB. POINT 17 HINGE PIN BOTTOM |
| KOMATSU |
| LUB. POINT 18 HINGE PIN TOP |
| KOMATSU |
| FF7819-83220 HINGE (WELDED) |
| SK07 |
| FF7819-83210 HINGE (WELDED) |
| SK07 |
| 385-10216291 HINGE,R.H. |
| 530, 530B, 540, 540B |
| 20Y-54-51330 HINGE |
| BP500, PC130, PC160, PC180, PC200, PC200LL, PC200SC, PC210, PC220, PC230, PC230NHD |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 421-54-43231 | [1] | Door,L.H. Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 2. | 421-54-31740 | [1] | Lock Assembly Komatsu | 0.76 kg. |
| ["SN: 90216-UP"] | ||||
| 3 | 417-54-21650 | [1] | Striker Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 4 | 417-54-21610 | [1] | Spring,L.H. Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 5 | 01641-21016 | [1] | Washer Komatsu | 0.002 kg. |
| ["SN: 90216-UP"] | ||||
| 6 | 421-54-41140 | [1] | Rod Komatsu | 0.21 kg. |
| ["SN: 90216-UP"] | ||||
| 7 | 04050-13020 | [1] | Pin, Cotter Komatsu | 0.002 kg. |
| ["SN: 90216-UP"] | ||||
| 8 | 01641-20608 | [4] | Washer Komatsu | 0.001 kg. |
| ["SN: 90216-UP"] analogs:["0164220608", "0164100608", "0164240608", "6110733520"] | ||||
| 9 | 04050-11612 | [4] | Pin, Cotter Komatsu | 0.001 kg. |
| ["SN: 90216-UP"] analogs:["0405001612", "2344318710"] | ||||
| 10 | 423-54-37680 | [1] | Holder Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 11 | 421-54-43241 | [1] | Door,R.H. Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 14 | 417-54-21660 | [1] | Spring,R.H. Komatsu | 0.001 kg. |
| ["SN: 90216-UP"] | ||||
| 21 | 421-54-43530 | [1] | Hinge,L.H. Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 22 | 421-54-43540 | [1] | Hinge,R.H. Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 23 | 01010-81225 | [8] | Bolt Komatsu | 0.074 kg. |
| ["SN: 90216-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 24 | 01643-31232 | [8] | Washer Komatsu | 0.027 kg. |
| ["SN: 90216-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 25 | 421-54-42391 | [2] | Hinge Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 28 | 423-54-37580 | [4] | Cylinder, Gas, Gas Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 29 | 04205-10832 | [2] | Pin Komatsu China | |
| ["SN: 90216-UP"] analogs:["500327173", "PZF500327173", "0420520832"] | ||||
| 30 | 01640-20816 | [8] | Washer Komatsu | 0.002 kg. |
| ["SN: 90216-UP"] | ||||
| 31 | 04050-12015 | [8] | Pin, Cotter Komatsu | 0.001 kg. |
| ["SN: 90216-UP"] analogs:["0405002015"] | ||||
| 32 | 421-54-41470 | [2] | Rod Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 33 | 04050-13022 | [4] | Pin, Cotter Komatsu | 0.002 kg. |
| ["SN: 90216-UP"] | ||||
| 34 | 01640-21323 | [2] | Washer Komatsu | 0.008 kg. |
| ["SN: 90216-UP"] | ||||
| 35 | 423-54-48490 | [2] | Washer Komatsu China | |
| ["SN: 90216-UP"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
