商品の詳細:
お支払配送条件:
|
| エンジン番号: | 3412E C-15 C11 C13 C15 C18 C32 C7 C9 | 部品番号: | 1W-1695 1w1695 |
|---|---|---|---|
| 製品名: | 燃料移送ポンプ | 機械番号: | 215B 215C 215D 219D 225D 229D 235B |
| 応用: | 掘削機 | リードタイム: | 配達までに1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Excavator fuel transfer pump,3306 excavator spare parts,215D 219D fuel pump |
||

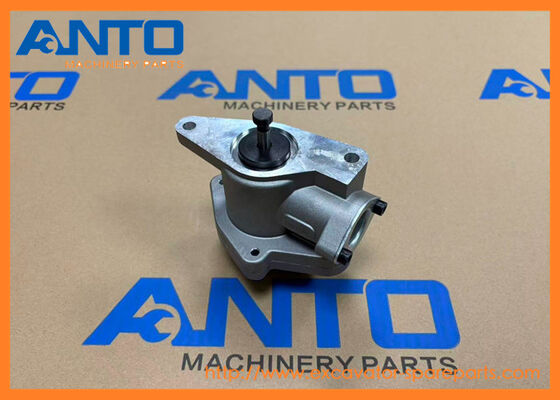

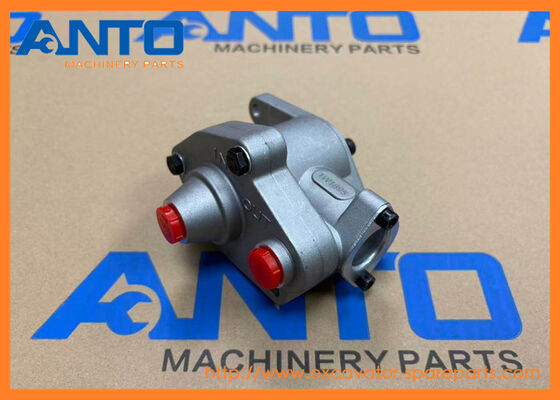

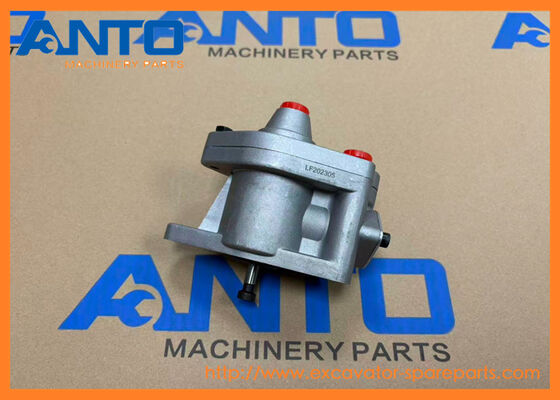

1W-1695 1w1695 Fuel Transfer Pump Excavator Spare Parts Fit For 3306 215D 219D 225D 229D
Specifiion
| Category | Engine Parts；Fuel Filter |
| Name | Fuel Transfer Pump |
| Parts No | 1W-1695 |
| Machine Number | 215B 215C 215D 219D 225 225D 229 229D 235 235B |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Drive & Suction: The pump’s gear set is driven by the engine’s camshaft/accessory drive. As the gears rotate, the space between the gear teeth and pump housing expands on the inlet side, creating a vacuum that draws fuel from the tank through the inlet port and fuel filter. |
| 2. Fuel Transfer: Rotating gears trap fuel in the tooth spaces and carry it to the outlet side of the pump. | |
| 3. Compression & Delivery: On the outlet side, the gear teeth mesh together, reducing the volume of the tooth spaces and forcing fuel out of the outlet port at a consistent pressure to the HPIP. | |
| 4. Pressure Regulation: If system pressure exceeds the relief valve setting (2.5 bar), the valve opens, diverting excess fuel back to the fuel tank to maintain safe operating pressure. | |
| 5. Self-Priming: The tight gear meshing and sealed housing allow the pump to create sufficient vacuum to pull fuel from the tank and purge air from the system without manual priming (unlike manual priming pumps). | |
| Core Functions | 1. Consistent Fuel Delivery: Supplies a steady flow of fuel to the HPIP at optimal pressure – critical for precise fuel injection and engine power output |
| 2. System Pressure Regulation: Built-in relief valve prevents overpressure, protecting fuel lines, filters, and the HPIP from damage | |
| 3. Self-Priming: Eliminates the need for manual priming after maintenance/fuel depletion – reduces downtime in remote mining/construction sites | |
| 4. Contaminant Protection: Works in tandem with CAT fuel filters (1R-0750) to ensure clean fuel reaches the HPIP – extends injector life |
ARTICULATED TRUCK D250B D250E D250E II D25C D25D D300B D300D D300E D300E II D30C D350C D35C
CHALLENGER 65 65C 70C
ENGINE - MACHINE 3304
EXCAVATOR 215 215B 215C 215D 219D 225 225D 229 229D 235 235B 235C 235D 330 330 FM L 330 L 330B 330B L 350 E240 E300 E300B
FELLER BUNCHER FB518
GEN SET ENGINE 3304 3304B 3306 3306B
GENERATOR SET 3304B 3306B
INDUSTRIAL ENGINE 3304 3306 3306B
LANDFILL COMPACTOR 816B 816F
LOAD HAUL DUMP R1300 R1300G
MARINE ENGINE 3304 3304B 3306 3306B
MOTOR GRADER 120G 12G 12H 12H ES 12H NA 130G 140G 140H 140H ES 140H NA 143H 14G 14H NA 160G 160H 160H ES 160H NA 163H NA
PIPELAYER 571G 572G 572R
SOIL COMPACTOR 815B 815F
TRACK LOADER 963 973 973C
TRACK SKIDDER 517 527 D4HTSK III D5HTSK II
TRACK-TYPE TRACTOR D4E D4E SR D4H D4H XL D5B D5E D5H D5H XL D6D D6E D6E SR D6F SR D6G D6G SR D6G2 LGP D6G2 XL D6H D6H II D6H XL D6H XR D6R D7G D7G2 D7H D7R
TRUCK ENGINE 3306 3306B 3306C
VIBRATORY COMPACTOR CB-534 CS-643
WHEEL DOZER 814B 814F
WHEEL LOADER 930 930R 936 936F 950B 950B/950E 966C 966D 966F 966F II 966G 970F 972G G936
WHEEL SCRAPER 615C 621E 627B 627E 627G 637D 637E 637G 639D
WHEEL SKIDDER 515 518 518C 525 528 528B 530B 545
WHEEL TRACTOR 611 615 627B 627E 627F
WHEELED EXCAVATOR W330B C.ater.pillar.
| 0R1003 PUMP GP-WATER |
| D6H, D6H XL, D6H XR, D7G, D7H |
| 1623905 PUMP AS-FUEL PRIMING |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 963B, 973, 973C |
| 8N0490 PUMP ASSEM. |
| 963, 973, 992C, D10, D9H |
| 0R1000 PUMP GP-WATER |
| 615C, 966F, 966F II, 972G |
| 0R0997 PUMP GP-WATER |
| 611, 615C |
| 10R0482 PUMP GP-WATER |
| 621F, 623E, 627F, 824G, 825G, 826G, 980C, 980F, 980G, D8N, D8R, D8R II |
| 3E5470 PUMP AS-WASHER |
| 120H ES, 120H NA, 12H ES, 12H NA, 130G, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H NA, 160H ES, 160H NA, 163H NA, 16H NA, D7G |
| 9T1802 PUMP GP-GEAR |
| 120G, 14G, 16G |
| 2223769 PUMP GP-METERING |
| 120H, 120K, 120K 2, 12H, 12H NA, 12K, 135H, 140H, 140H NA, 140K, 140K 2, 143H, 160H, 160H NA, 160K, 163H |
| 0R1005 PUMP GP-WATER |
| 12H, 140G, 140H, 140H NA, 143H, 160H |
| 0R1004 PUMP GP-WATER |
| 140G, 143H, 160H |
| 8J5846 PUMP GROUP |
| 120G, 12G, 130G |
| 7C1500 PUMP GP-FUEL INJECTION |
| 205B, 213B, 214B, 224B, 3114, 3116, 446, 446B, AP-1000, AP-1050, CB-434, CP-563, CS-531, CS-533, CS-573, CS-583, E110B, E120B, E200B, E240C, EL240B |
| 1727760 PUMP GP-WATER |
| 330, 3304, 3304B, 3306, 3306B, 3306C, 330B L, 350, 517, 527, 545, 611, 615C, 966F, 966F II, CB-534, D4H, D4HTSK III, D6D, D6G2 XL, D6H, D7G, D7H, G3304B, G3306B, R1300, R1300G |
| 9t9912 PUMP GP-PISTON |
| D6H, D6H XL, D6H XR, D6R |
| 2466099 PUMP & MTG GP-PISTON |
| 120M |
| 1664089 PUMP GP-GEAR |
| 908 |
| 7S2983 PUMP GP-TMSN & SCAVENGE |
| 627, 627B, 627E, 627F, 627G, 627H, 627K, 627K LRC, 637, 637B, 637D, 637E, 637G, 639D |
| 5J8605 PUMP GP-VANE |
| 977H, 977K |
| 4P9392 PUMP GP-GOV & FUEL INJ |
| D8N |
| 2053665 PUMP GP-GEAR |
| 924G, 924GZ, 930G, IT28G |
| 3461832 PUMP GP-DIAPHRAGM |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 247, 247B, 247B3, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 267, 267B, 268B, 272C, 272D... |
| 1991064 PUMP GP-PISTON |
| D3G, D4G, D5G |
| 6E3136 PUMP GP-PISTON |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12H, 12K, 135H, 135H NA, 140H, 140K, 140K 2, 160H, 160K |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4F-7957 | [1] | BOLT (1/4-20X0.875-IN) | |
| 2 | 1W-1695 Y | [1] | PUMP GP-FUEL TRANSFER | |
| 3 | 4B-9365 | [1] | BOLT (1/4-20X3-IN) | |
| 4 | 4J-8997 C | [1] | SEAL-O-RING | |
| 5 | 5P-0537 C | [2] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
