商品の詳細:
お支払配送条件:
|
| カテゴリ: | トランスミッションギアとシャフト | 部品番号: | 154-15-42150 1541542150 |
|---|---|---|---|
| 製品名: | 襟 | 機械番号: | D85A D85E D85P |
| 応用: | ブルドーザー | リードタイム: | 配達までに1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | KOMATSU bulldozer collar spare part,D85A bulldozer fitting with warranty,Bulldozer spare parts for D85E |
||

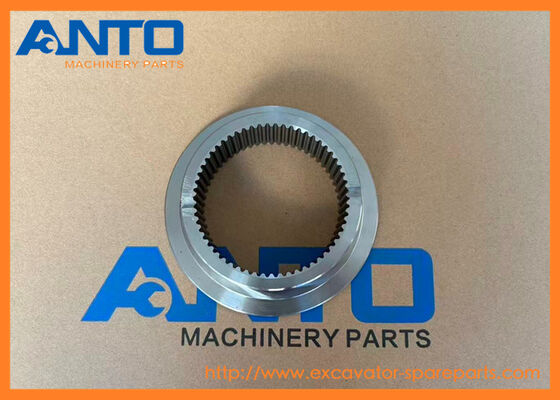

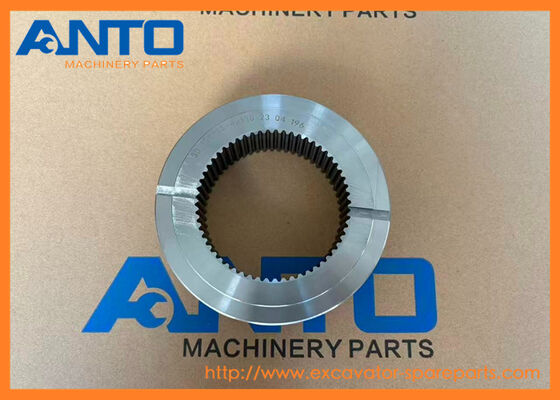

154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P
Specifiion
| Category | Transmission Gear and Shaft |
| Name | Collar |
| Parts No | 154-15-42150 1541542150 |
| Machine Number | D85A D85E D85P |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Solid Collar: Press-fit onto the shaft (interference fit) during assembly – the slight dimensional difference between collar bore and shaft creates a tight bond that resists axial/radial movement. Installed via press machine (no fasteners needed). |
| 2. Split-Set Collar: Positioned on the shaft at the desired location; tightening the clamp bolts compresses the split collar, reducing the bore diameter and clamping the collar tightly to the shaft. The friction between collar and shaft prevents axial sliding, while a keyway (if fitted) blocks radial rotation. | |
| 3. Load Resistance: The collar abuts against a shoulder on the shaft or adjacent component (e.g., gear, bearing), transferring axial loads to the shaft housing and preventing component displacement during operation. | |
| Core Functions | 1. Axial Positioning: Secures shafts, gears, bearings, and cylinder rods in a fixed axial position – prevents end-to-end movement that could damage seals, gears, or bearings |
| 2. Radial Locking: (With keyway) Stops rotational slippage between collar and shaft – ensures torque transfer in drive train components | |
| 3. Load Distribution: Distributes axial loads from moving components (e.g., hydraulic cylinder piston) to the shaft housing – reduces stress on individual components | |
| 4. Easy Maintenance: Split-set design enables quick replacement without disassembling the entire shaft assembly – minimizes equipment downtime |
BULLDOZERS D85A D85E D85P
PIPELAYERS D85C Komatsu
| 700-22-11430 COLLAR |
| 505, 507, BC100, D20A, D20AG, D20P, D20PG, D20PL, D20PLL, D20Q, D20QG, D20S, D21A, D21AG, D21E, D21P, D275A, D375A, D475A, D475ASD, D85MS |
| 707-69-10700 COLLAR |
| D85A, D85E, D85P |
| 175-916-1220 COLLAR |
| D135A, D155A, D355C, D85A, D85E, D85P |
| 156-70-12320 COLLAR |
| D85C |
| 156-76-21550 COLLAR |
| D85C |
| 175-916-1210 COLLAR |
| D135A, D155A, D355C, D85A, D85E, D85P |
| 195-978-2210 COLLAR |
| D150A, D155A, D155S, D355A, D80A, D80E, D80P, D85A, D85E, D85P, D95S |
| 150-15-11670 COLLAR |
| D80A, D80E, D80P, D85C |
| 154-30-25220 COLLAR |
| D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85EX, D85MS, D85P, D85PX, DRAWBAR, |
| 154-15-42171 COLLAR |
| D85A, D85C, D85E, D85P |
| 154-15-42160 COLLAR |
| D85A, D85C, D85E, D85P |
| 154-30-26193 COLLAR |
| D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S |
| 154-30-26183 COLLAR |
| D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S |
| 154-30-25220 COLLAR |
| D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85EX, D85MS, D85P, D85PX, DRAWBAR, |
| 150-15-11731 COLLAR |
| D80A, D80E, D80P |
| 154-30-74291 COLLAR,OUTER |
| D85EX, D85MS, D85PX, DRAWBAR, |
| 154-30-74281 COLLAR,INNER |
| D85EX, D85MS, D85PX, DRAWBAR, |
| 707-88-39640 COLLAR |
| D85EX |
| 154-27-72350 COLLAR |
| D85EX, D85MS, D85PX, DRAWBAR, |
| 154-78-32440 COLLAR |
| D85A, D85E, D85EX, D85MS |
| 175-15-62830 COLLAR |
| D85A, D85C, D85E, D85P |
| Pos. | Part No | Qty | Parts name | Comments |
| 154-15-01082 | [1] | TRANSMISSION ASS'Y Komatsu | 745.01 kg. | |
| ["SN: 36537-UP"] |$2. | ||||
| 154-15-01120 | [1] | TRANSMISSION ASS'Y Komatsu | 0.000 kg. | |
| ["SN: 36537-UP"] |$4. | ||||
| 1 | 154-15-42131 | [1] | SHAFT Komatsu | 11.8 kg. |
| ["SN: 36537-UP"] | ||||
| 2 | 07018-11205 | [1] | RING,SEAL Komatsu | 0.062 kg. |
| ["SN: 36537-UP"] | ||||
| 3 | 06000-06019 | [1] | BEARING Komatsu China | 1.271 kg. |
| ["SN: 36537-UP"] | ||||
| 4 | 04071-00145 | [1] | RING,SNAP Komatsu | 0.13 kg. |
| ["SN: 36537-UP"] analogs:["R0407100145"] | ||||
| 5 | 154-15-42270 | [1] | HUB Komatsu | 8.3 kg. |
| ["SN: 36537-UP"] | ||||
| 6 | 07018-12205 | [1] | RING,SEAL Komatsu China | 0.137 kg. |
| ["SN: 36537-UP"] | ||||
| 7 | 144-15-11290 | [1] | RING,SEAL Komatsu China | 0.056 kg. |
| ["SN: 36537-UP"] | ||||
| 8 | 154-15-42210 | [1] | GEAR Komatsu | 2 kg. |
| ["SN: 36537-UP"] | ||||
| 9 | 154-15-42150 | [1] | COLLAR Komatsu China | |
| ["SN: 36537-UP"] | ||||
| 10 | 06000-06922 | [1] | BEARING Komatsu China | 0.91 kg. |
| ["SN: 36537-UP"] | ||||
| 11 | 154-15-42220 | [1] | GEAR Komatsu | 1.65 kg. |
| ["SN: 36537-UP"] | ||||
| 12 | 04064-09530 | [1] | RING,SNAP Komatsu China | 0.05 kg. |
| ["SN: 36537-UP"] | ||||
| 13 | 234-21-12180 | [1] | NUT Komatsu | 0.63 kg. |
| ["SN: 36537-UP"] | ||||
| 14 | 175-15-42220 | [1] | PIN Komatsu China | |
| ["SN: 36537-UP"] | ||||
| 15 | 234-21-12190 | [1] | PLATE Komatsu China | |
| ["SN: 36537-UP"] | ||||
| 16 | 234-21-12210 | [1] | PLATE (KIT) Komatsu | 0.01 kg. |
| ["SN: 36537-UP"] | ||||
| 17 | 01010-80814 | [2] | BOLT Komatsu | 0.011 kg. |
| ["SN: 36537-UP"] | ||||
| 18 | 154-15-42310 | [1] | CARRIER Komatsu | 17.8 kg. |
| ["SN: 36537-UP"] | ||||
| 19 | 154-15-42410 | [4] | GEAR Komatsu | 0.36 kg. |
| ["SN: 36537-UP"] | ||||
| 20 | 154-15-49410 | [4] | BEARING Komatsu | 0.9 kg. |
| ["SN: 36537-UP"] | ||||
| 21 | 569-15-32560 | [8] | WASHER,THRUST Komatsu China | 0.04 kg. |
| ["SN: 36537-UP"] | ||||
| 22 | 154-15-42510 | [4] | SHAFT Komatsu | 0.37 kg. |
| ["SN: 36537-UP"] | ||||
| 23 | 04260-00635 | [4] | BALL Komatsu | 0.012 kg. |
| ["SN: 36537-UP"] analogs:["805750022", "YM24190080001", "21D0986810"] | ||||
| 24 | 154-15-42930 | [1] | COVER Komatsu | 1.65 kg. |
| ["SN: 36537-UP"] | ||||
| 25 | 04020-00616 | [1] | PIN,DOWEL Komatsu | 0.004 kg. |
| ["SN: 36537-UP"] | ||||
| 26 | 568-15-12950 | [1] | RING,SNAP Komatsu | 0.109 kg. |
| ["SN: 36537-UP"] | ||||
| 27 | 154-15-41270 | [5] | PIN Komatsu China | |
| ["SN: 36537-UP"] | ||||
| 28 | 175-15-42880 | [15] | SPRING Komatsu China | 0.01 kg. |
| ["SN: 36537-UP"] | ||||
| 29 | 154-15-41290 | [10] | PIN Komatsu | 0.05 kg. |
| ["SN: 36537-UP"] | ||||
| 30 | 421-15-12910 | [10] | SPRING Komatsu | 0.015 kg. |
| ["SN: 36537-UP"] | ||||
| 31 | 424-15-12711 | [3] | DISC Komatsu China | 1 kg. |
| ["SN: (5232)-UP"] analogs:["4241512710", "1351522713", "1351522712"] | ||||
| 31 | 424-15-12710 | [3] | DISC Komatsu China | 1 kg. |
| ["SN: 36537-(5231)"] analogs:["4241512711", "1351522713", "1351522712"] | ||||
| 32 | 424-15-12720 | [2] | PLATE Komatsu | 1.5 kg. |
| ["SN: 36537-UP"] analogs:["7128512720"] | ||||
| 33 | 175-15-62730 | [1] | PISTON Komatsu | 9.35 kg. |
| ["SN: 36537-UP"] | ||||
| 34 | 195-15-49210 | [1] | RING,SEAL Komatsu China | 0.028 kg. |
| ["SN: 36537-UP"] | ||||
| 35 | 113-15-29250 | [1] | RING,SEAL Komatsu OEM | 0.012 kg. |
| ["SN: 36537-UP"] | ||||
| 154-15-01220 | [1] | HOUSING ASS'Y Komatsu | 24.21 kg. | |
| ["SN: 36537-UP"] |$42. | ||||
| 37 | 566-15-41320 | [2] | PLUG Komatsu China | |
| ["SN: 36537-UP"] | ||||
| 38 | 195-15-49240 | [1] | RING,SEAL Komatsu China | 0.05 kg. |
| ["SN: 36537-UP"] analogs:["1951539280"] | ||||
| 39 | 04020-01228 | [2] | PIN,DOWEL Komatsu | 0.026 kg. |
| ["SN: 36537-UP"] analogs:["21T3016190"] | ||||
| 41 | 01010-81235 | [15] | BOLT Komatsu | 0.048 kg. |
| ["SN: 36537-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 42 | 01643-31232 | [15] | WASHER Komatsu | 0.027 kg. |
| ["SN: 36537-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 43 | 175-15-62830 | [1] | COLLAR Komatsu | 1.74 kg. |
| ["SN: 36537-UP"] | ||||
| 44 | 125-15-29510 | [1] | RING Komatsu | 0.06 kg. |
| ["SN: 36537-UP"] | ||||
| 154-15-01210 | [1] | CAGE ASS'Y Komatsu | 16.01 kg. | |
| ["SN: 36537-UP"] |$52. | ||||
| 46 | 175-15-11230 | [3] | PLUG Komatsu | 0.01 kg. |
| ["SN: 36537-UP"] | ||||
| 47 | 154-15-49210 | [1] | RING,SEAL (KIT) Komatsu China | 0.02 kg. |
| ["SN: 36537-UP"] | ||||
| 48 | 19M-15-19260 | [2] | RING,SEAL Komatsu China | 0.12 kg. |
| ["SN: 36537-UP"] | ||||
| 49 | 01010-61435 | [6] | BOLT Komatsu China | 0.06 kg. |
| ["SN: 36537-UP"] analogs:["0101051435", "0101031435", "0101081435"] | ||||
| 50 | 01643-31445 | [6] | WASHER Komatsu | 0.019 kg. |
| ["SN: 36537-UP"] analogs:["0164301432"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
