商品の詳細:
お支払配送条件:
|

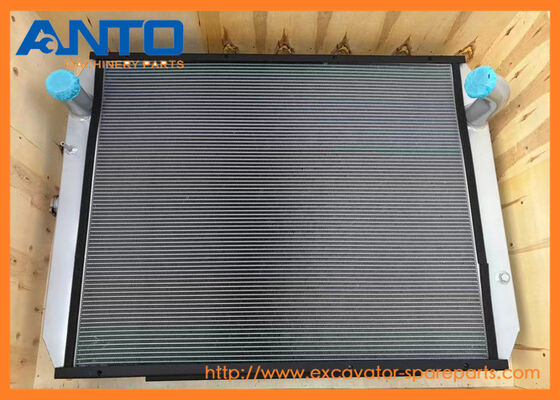

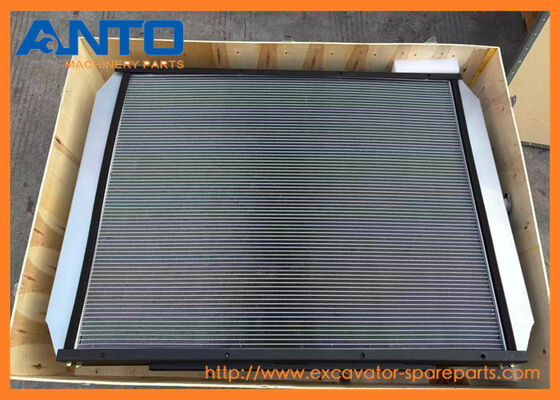

| カテゴリ: | 水槽部品 | 機械型式: | R250LC7A R290LC7A |
|---|---|---|---|
| アプリケーション: | 掘削機 | 製品名: | ラジエーター |
| 部品番号: | 11N8-47160 | パッキング: | 標準輸出カートン |
| ハイライト: | HYUNDAI excavator water tank radiator,R250LC7A radiator spare parts,R290LC7A excavator water tank |
||
| Name | Radiator |
| Parts No | 11N8-47160 |
| Machine Model | R250LC7A R290LC7A |
| Category | Water Tank Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| Working Principle | 1. Hot coolant from the engine cylinder head flows into the radiator’s upper side tank through the inlet neck. |
| 2. Coolant is distributed through the aluminum tubes, where heat is transferred to the adjacent multi-louvered fins. | |
| 3. A hydraulically driven cooling fan pulls ambient air through the core, dissipating heat from the fins into the atmosphere. | |
| 4. Cooled coolant collects in the lower side tank and returns to the engine via the outlet neck to recirculate and maintain optimal engine temperature. | |
| 5. The pressure cap regulates system pressure, keeping coolant in a liquid state even at temperatures above its atmospheric boiling point (100°C/212°F). | |
| Core Functions | 1. Engine Temperature Regulation: Maintains the Cummins QSB6.7 engine within the safe operating range to prevent overheating and reduce component wear |
| 2. Heat Dissipation: Removes excess heat generated by engine combustion and friction, ensuring consistent power output | |
| 3. Coolant Retention: Leak-proof design prevents coolant loss, avoiding engine damage from insufficient cooling | |
| 4. Hydraulic Oil Cooling (Dual-Core Models): Cools high-temperature hydraulic oil from the excavator’s hydraulic system, extending the life of pumps, valves, and cylinders |
| 11Q6-44210 RADIATOR ASSY |
| R210NLC9, R210W-9 |
| 11Q7-40402 RADIATOR TOTAL ASSY |
| R250LC9 |
| 11Q7-40403 RADIATOR TOTAL ASSY |
| R250LC9 |
| 11Q6-40900 RADIATOR TOTAL ASSY |
| R210LC9 |
| 11Q6-40901 RADIATOR TOTAL ASSY |
| R210LC9 |
| 11Q6-40902 RADIATOR TOTAL ASSY |
| R210LC9, R210NLC9 |
| 11Q6-40634 RADIATOR ASSY |
| R210LC9 |
| 11Q6-43103 RADIATOR TOTAL ASSY |
| R210NLC9 |
| 11Q6-43104 RADIATOR TOTAL ASSY |
| R210NLC9 |
| 11Q7-40404 RADIATOR TOTAL ASSY |
| R250LC9 |
| 11Q7-40405 RADIATOR TOTAL ASSY |
| R250LC9, RB260LC9S |
| 11Q7-40406 RADIATOR TOTAL ASSY |
| R250LC9 |
| 11Q6-40634 RADIATOR ASSY |
| R210LC9 |
| 11Q6-40902 RADIATOR TOTAL ASSY |
| R210LC9, R210NLC9 |
| 11Q6-40901 RADIATOR TOTAL ASSY |
| R210LC9 |
| 11Q6-40900 RADIATOR TOTAL ASSY |
| R210LC9 |
| 11N6-43022 RADIATOR |
| R210LC7, R215LC7, RC215C7, RD220-7 |
| 11N6-43023 RADIATOR ASSY |
| R210LC7, R215LC7, RD220-7 |
| 11N6-43800 RADIATOR TOTAL ASSY |
| R210LC7, R215LC7, RC215C7, RD220-7 |
| 11N6-43012 RADIATOR TOTAL ASSY |
| R210LC7 |
| 11EM-40020 RADIATOR ASSY |
| R210LC3H, R210LC3LL |
| 11EM-40011 RADIATOR TOTAL ASSY |
| R210LC3H |
| 11EM-42011 RADIATOR TOTAL ASSY |
| R210LC3, R210LC3LL |
| 11EM-42010 RADIATOR TOTAL ASSY |
| R210LC3 |
| 11Q6-46042 RADIATOR TOTAL ASSY |
| R210LC9BC |
| 11Q6-46043 RADIATOR TOTAL ASSY |
| R210LC9BC |
| 11Q6-46044 RADIATOR TOTAL ASSY |
| R210LC9BC, RD220LC9 |
| 11Q6-46045 RADIATOR TOTAL ASSY |
| R210LC9BC |
| 11Q6-46632 RADIATOR ASSY |
| R210LC9BC |
| 11Q6-46634 RADIATOR ASSY |
| R210LC9BC |
| 11Q6-46635 RADIATOR ASSY |
| R210LC9BC, RD220LC9 |
| 11Q6-41705 RADIATOR TOTAL ASSY |
| R210LC9BH |
| 11Q6-41713 RADIATOR ASSY |
| R210LC9BH |
| 11Q6-43103 RADIATOR TOTAL ASSY |
| R210NLC9 |
| 11Q6-43104 RADIATOR TOTAL ASSY |
| R210NLC9 |
| 11Q6-44205 RADIATOR TOTAL ASSY |
| R210W-9, R210W9MH |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 11N7-43010 | [1] | RADIATOR TOTAL ASSY | |
| 1 | 11N8-47111 | [1] | RADIATOR ASSY | |
| 1-1. | 11N8-47160 | [1] | RADIATOR | |
| 1-2. | 11N8-47150 | [1] | CAP-PRESSURE | |
| 1-3. | 11EK-42210 | [1] | COCK-DARIN | |
| 1-4. | 11EK-42220 | [1] | HOSE-DRAIN | |
| 2 | 11N8-43204 | [1] | OIL COOLER ASSY | |
| 3 | 11N8-47121 | [1] | FRAME ASSY | |
| 4 | 11N7-43020 | [1] | SHROUD | |
| 5 | 11N8-47170 | [1] | FAN GUARD | |
| 6 | 11N8-43242 | [1] | WIRE NET | |
| 7 | S037-102556 | [10] | BOLT-W/WASHER | |
| 8 | S035-082526 | [14] | BOLT-W/WASHER | |
| 9 | S017-121206 | [4] | BOLT-HEX | |
| 10 | S037-121556 | [2] | BOLT-W/WASHER | |
| 11 | S403-12200B | [4] | WASHER-PLAIN | |
| 12 | S091-060156 | [2] | BOLT-WING | |
| 13 | 11N8-43381 | [2] | SPONGE |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
