| カテゴリ: | トラベルモーターと最終駆動 | 部品番号: | 708-1F-12280 708-1F-12281 |
|---|---|---|---|
| 製品名: | オイルシール | 機械番号: | PC100L PC200 PC210 PC220 PC230 PC250 |
| 応用: | 掘削機、ホイールローダー | リードタイム: | 配達までに1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Komatsu excavator oil seal,PC270-8 PC300-8 oil seal,excavator spare parts with warranty |
||

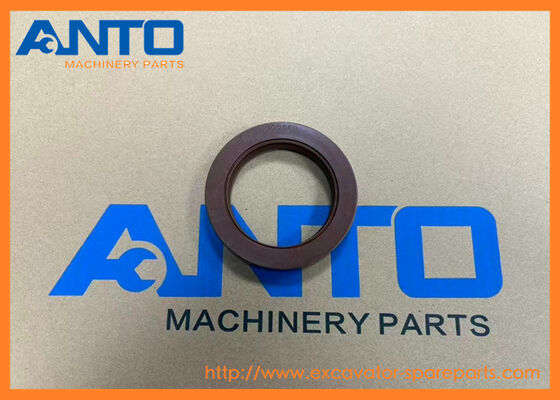

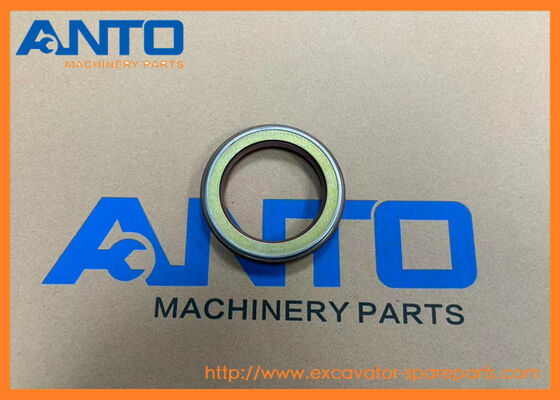

708-1F-12280 708-1F-12281 Oil Seal KOMATSU Excavator Spare Parts For PC270-8 PC300-8
Specifiion
| Category | Travel Motor And Final Drive |
| Name | Oil Seal |
| Parts No | 708-1F-12280 708-1F-12281 |
| Machine Number | PC100L PC200 PC210 PC220 PC220LL PC230 PC250 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Sealing Contact: The NBR lip (coated with Teflon) presses tightly against the rotating shaft, creating a physical barrier that traps lubricating oil/hydraulic fluid inside the component (e.g., hydraulic motor). |
| 2. Spring Compensation: As the lip wears over time, the stainless-steel spring expands slightly, maintaining constant pressure on the shaft to preserve the seal—preventing leakage. | |
| 3. Contaminant Blocking: The outer edge of the seal’s metal case forms a static seal with the housing bore, while the lip blocks external debris from entering the component (avoids abrasive damage to shafts or bearings). | |
| 4. Heat Management: The Teflon coating reduces friction-induced heat, preventing the rubber lip from hardening or degrading at high operating temperatures. | |
| Core Functions | 1. Leak Prevention: Stops oil/hydraulic fluid leakage from rotating shafts – avoids fluid loss (which causes component starvation) and environmental contamination (e.g., oil spills on job sites). |
| 2. Contaminant Protection: Blocks dust, gravel, and moisture from entering precision components (e.g., hydraulic pumps, engine bearings) – prevents premature wear and costly repairs. | |
| 1. Component Longevity: Maintains proper lubrication levels in engines/transmissions – extends the life of shafts, bearings, and gears by reducing metal-to-metal contact. | |
| 4. System Efficiency: Eliminates leakage-related pressure drops in hydraulic systems – ensures excavators/loaders maintain full lifting/digging power. |
BULLDOZERS D155AX D275AX D375A D475A D475ASD
EXCAVATORS PC100L PC200 PC210 PC220 PC220LL PC230 PC250 PC250HD PC270 PC290 PC300 PC300HD PC300SC PC308 PC340 PC350 PC360 PC380
MOBILE CRUSHERS AND RECYCLERS BR550JG BR580JG
WHEEL LOADERS WA900 WA900L Komatsu
| 144-63-94170 SEAL,DUST (KIT) |
| 532, BP500, D150A, D155A, D155AX, D355C, D58E, D60E, D60S, D65A, D65E, D65S, D75A, D75S, D85EX, D85PX, D95S, FD100, FD115, FD135, FD150, FD150E, FD160E, GD705R, HD680, PC130, PC160, WA250, WA320 |
| 07145-00080 SEAL,DUST (KIT) |
| CARRIER, PC130, PC160, PC190, PC220, PC240, PC290, PC400 |
| 6736-21-4221 Seal |
| Engine, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, S6D102E, SA6D114E, SAA4D107E, SAA6D102E, SAA6D107E, SAA6D114E, WA250, WA320, WA380, WA430 |
| 07016-20256 SEAL,DUST |
| D155A, D155AX, D20A, D20AG, D21A, D21AG, D60P, D65E, D65EX, D65P, D65PX, D85E, D85ESS, FB10/13RL, FB10/13RS, FB10/13RW, FB10RL/13RL, FB14, FB14RL, FB15/18RJ, FB15/18RJW, FB15RJ/18RJ, FB15RL, FB15RL/18... |
| 707-56-30510 SEAL |
| BR550JG, BUCKET, BZ210, CD10R, CS210, CS360, D135A, D155A, D155AX, D275A, D275AX, D375A, D475A, D475ASD, D85MS, GC380, GC380F, PC18MR |
| 07012-00075 SEAL,OIL |
| 4D120, 4D130, 518, 520C/CH, BC100, BOOM,, BR200T, D150A, D155A, D155AX, D155S, D155W, D275A, D355A, D355C, D375A, PC78US, PC78UU |
| 07145-00095 SEAL,DUST (KIT) |
| BR380JG, D155S, D20P, D20PL, D21P, D21PL, D275A, D275AX, D355A, D75S, D95S, PC160, PC27MR, PC30MR, PC35MR, PC35MRX, PC650, PC70 |
| 207-25-61160 SEAL |
| AIR, PC220LL, PC250, PC270, PC270LL, PC290, PC300, PC300HD, PC300LL, PC300SC, PC308, PC340, PC350, PC360, PC400, PC450, PRESSURE, RAIN |
| 07145-00085 SEAL,DUST |
| BA100, D135A, D150A, D155A, D155AX, D355C, D50S, D55S, D61E, D61EX, D61PX, D66S, D68ESS, D85MS, D95S, GC380F, GD40HT, GD755, WA420, WA470 |
| 703-09-95620 SEAL |
| CD110R, COOLANT, PC200, PC228, PC228US, PC300, PC300SC, PC340, PC350, PC380, PC400, PC400ST, PC450, PC600, PC650, PC700 |
| TZBI-20-40-11 SEAL,OIL (KIT) |
| PC200, PF5 |
| TZ907S9000-00 SEAL KIT |
| PC200, PF5 |
| 208-62-67441 SEAL |
| PC200, PC210, PC220, PC228, PC228US, PC228UU, PC230, PC400ST |
| 198-63-94170 SEAL,DUST (KIT) |
| 558, AIR, D375A, D455A, D475A, D475ASD, HD205, HD255, PC200, PC290, PC300, PC308, PC360, PC450, PC550 |
| Pos. | Part No | Qty | Parts name | Comments |
| 207-27-00560 | [1] | Final Drive Assembly Komatsu China | ||
| ["SN: 63595-UP"] |$0. | ||||
| 708-8H-00420 | [1] | Motor Assembly Komatsu China | ||
| ["SN: 63595-UP"] |$1. | ||||
| 1 | 708-8H-32120 | [1] | Shaft Komatsu | 2.66 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 2 | 708-8H-32150 | [1] | Bearing Komatsu | 0.57 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 3 | 708-8H-32170 | [1] | Bearing Komatsu | 0.34 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 4 | 708-8H-05050 | [1] | Spacer Kit Komatsu | 0.105 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 5 | 708-1F-12281 | [1] | Seal, Oil Komatsu | 0.1 kg. |
| ["SN: 63595-UP"] analogs:["7081F12280"] | ||||
| 6 | 708-8H-32160 | [1] | Spacer Komatsu | 0.05 kg. |
| ["SN: 63595-UP"] | ||||
| 7 | 04065-07825 | [1] | Ring, Snap Komatsu | 0.022 kg. |
| ["SN: 63595-UP"] | ||||
| 708-8H-04810 | [1] | Cylinder Block Assembly Komatsu | 7.44 kg. | |
| ["SN: 63595-UP", "SCC: C2"] |$16. | ||||
| 10 | 708-18-13230 | [1] | Pin Komatsu | 0.01 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 11 | 708-8H-33360 | [3] | Pin Komatsu | 0.01 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 12 | 708-8H-33141 | [2] | Spacer Komatsu | 0.06 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 13 | 708-8H-33750 | [1] | Spring Komatsu China | |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 14 | 04065-06020 | [1] | Ring, Snap Komatsu | 0.011 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 15 | 708-8H-33512 | [1] | Guide, Retainer Komatsu | 0.23 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 16 | 708-8H-33340 | [1] | Retainer, Shoe Komatsu | 0.44 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 17 | 708-8H-33650 | [9] | Piston Subassembly Komatsu | 0.302 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 18 | 708-8H-33471 | [1] | Cam, Rocker Komatsu | 3.262 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 19 | 04260-02857 | [2] | Ball, Retainer Komatsu | 0.1 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 20 | 708-8H-34190 | [1] | Piston Komatsu China | |
| ["SN: 63595-UP"] analogs:["7088H34143"] | ||||
| 21 | 708-8H-34151 | [1] | Spring Komatsu China | |
| ["SN: 63595-UP"] | ||||
| 22 | X17-8320160 | [1] | Plug Komatsu China | |
| ["SN: 63595-UP"] | ||||
| 23 | 07002-13334 | [1] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 63595-UP"] analogs:["0700203334"] | ||||
| 24 | 708-8H-35130 | [4] | Plate Komatsu | 0.16 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 25 | 708-8H-35180 | [3] | Disc Komatsu | 0.36 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 26 | 708-8H-35141 | [1] | Piston, Brake, Brake Komatsu China | |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 27 | 07000-15175 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 63595-UP", "SCC: C2"] analogs:["0700005175"] | ||||
| 28 | 07001-05175 | [1] | Ring, Back-up Komatsu China | |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 29 | 07000-15195 | [1] | O-ring Komatsu China | 0.038 kg. |
| ["SN: 63595-UP", "SCC: C2"] analogs:["0700005195"] | ||||
| 30 | 07001-05195 | [1] | Ring, Back-up Komatsu | 0.016 kg. |
| ["SN: 63595-UP", "SCC: C2"] | ||||
| 31 | 708-8H-35150 | [1] | Spring Komatsu China | |
| ["SN: 63595-UP", "SCC: C2"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
