| エンジン番号: | 3126B C9 3066 3054T 3064 C7 | 部品番号: | 123-2148 1232148 |
|---|---|---|---|
| 製品名: | トラベル・パイロット・バルブ | 機械番号: | 307 318B 320B 330B 312B 322B 315B 325B |
| アプリケーション: | 掘削機 | リードタイム: | 配達までに1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Travel Pilot Valve excavator spare parts,Excavator spare parts for 3126B C9,307 318B 320B compatible pilot valve |
||

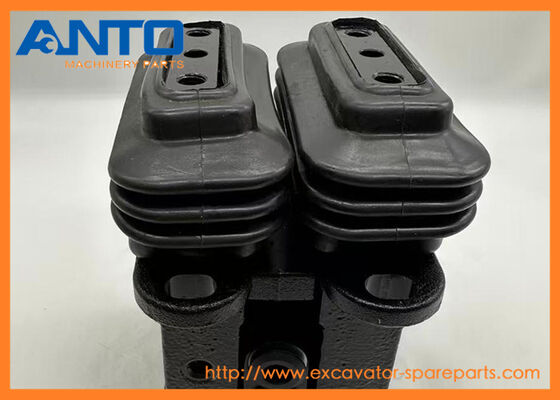

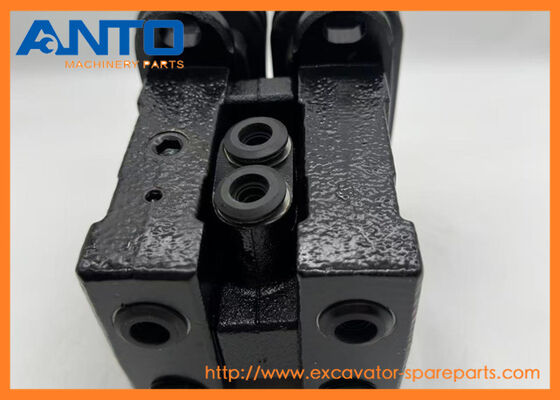

123-2148 1232148 Travel Pilot Valve Excavator Spare Parts Fit For 3126B C9 307 318B 320B
Specifiion
| Engine Number | 3126B C9 3066 3054T 3064 C7 |
| Name | Travel Pilot Valve |
| Parts No | 123-2148 1232148 |
| Machine Number | 307 318B 320B 330B 312B 322B 315B 325B |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1. Signal Conversion: Translates mechanical joystick movement into proportional hydraulic pressure (20–40 bar working pressure range).
2. Direction & Speed Control: Regulates pressure signal intensity to adjust the main travel valve’s spool stroke, controlling the excavator’s travel direction and speed.
3. Safety Protection: Integrates a pressure relief valve to prevent overpressure damage to the pilot system when the joystick is operated abruptly.
EXCAVATOR 307 311B 312B L 315B 315B L 317B LN 318B 320B 320B FM LL 320B L 320B U 321B 322B 322B L 322B LN 325B 325B L 330B 330B L 345B 345B II 345B II MH 345B L
MINI HYD EXCAVATOR 307
MINING EXCAVATOR 5110B
WHEELED EXCAVATOR W330B W345B II C.ate.rpillar.
| 5I7738 VALVE |
| 311, 311B, 311C, 312B, 312C L, 320 L, 320B, 320C, 320C FM, 320N |
| 5I8026 VALVE AS |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM RR, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN |
| 5I8066 VALVE AS-RELIEF |
| 311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 3... |
| 5I7643 VALVE |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B U, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN |
| 1318901 VALVE-DUST |
| 311B, 311C, 311D LRR, 312B, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 320C, 320C FM, 320C L, 320D FM RR, 320D LRR, 320D RR, 320E, 320E L, 320E LN... |
| 0952489 VALVE |
| 311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN, E110, E110B, E120B, E200B, E450 |
| 5I7559 VALVE AS |
| 318C, 319C, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN, 323D SA |
| 7Y4267 VALVE |
| 315D L, 316E L, 318C, 318D L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, ... |
| 5P7090 VALVE-BALL |
| 227, 229D, 322C, 325B L, 518, 528, 528B, 530B, 561D, 589, 615, 615C, 621, 621B, 621R, 623E, 627B, 637E, 651E, 657E, 814, 814B, 815, 815B, 910, 931B, 943, 950, 953, 966C, 966D, 966R, 977K, 977L, 980B, ... |
| 1074397 VALVE AS |
| 16M, 24M, 5110B, 583T, 587T, 769D, 771D, 773D, 773E, 773F, 775D, 775E, 775F, 776D, 777D, 777F, 785, 785B, 785C, 785D, 789, 789B, 789C, 789D, 793C, 793D, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795... |
| 1582336 VALVE-GAS |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 145-0912 I | [1] | HOSE AS | |
| 2 | 126-2001 | [1] | FLANGE-SPECIAL | |
| 3 | 4J-0526 | [1] | SEAL-O-RING | |
| 4 | 8T-4121 | [12] | WASHER-HARD (11X21X2.5-MM THK) | |
| 5 | 149-2605 I | [1] | HOSE AS | |
| 6 | 5P-7468 | [5] | CLIP (SLOT) | |
| 7 | 5P-7469 | [5] | CLIP (TAB) | |
| 8 | 6V-1874 | [2] | GROMMET (31-MM ID) | |
| 9 | 145-0914 I | [1] | HOSE AS | |
| 10 | 8T-4196 M | [12] | BOLT (M10X1.5X35-MM) | |
| 11 | 1P-4578 | [4] | FLANGE-HALF | |
| 12 | 4J-0522 | [3] | SEAL-O-RING | |
| 13 | 126-2172 | [1] | PLATE | |
| 14 | 6V-6707 | [1] | SEAL-O-RING | |
| 15 | 8T-4136 M | [4] | BOLT (M10X1.5X25-MM) | |
| 16 | 131-9750 | [1] | SCREEN AS (HYDRAULIC TANK) | |
| 17 | 137-8716 | [1] | SUPPORT | |
| 18 | 127-1647 | [1] | ELBOW | |
| 19 | 148-8340 | [4] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8639 | [1] | CONNECTOR | ||
| 20 | 148-8360 | [1] | ELBOW AS | |
| 6V-9182 | [1] | ELBOW | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 21 | 148-8357 | [1] | ELBOW AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9008 | [1] | ELBOW | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 22 | 6V-8556 | [2] | NUT (1-3/16-12-THD) | |
| 23 | 148-8352 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9854 | [1] | ELBOW (SWIVEL) | ||
| 24 | 148-8364 | [1] | ELBOW AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | ELBOW | ||
| 25 | 6V-9169 | [2] | NUT (13/16-16-THD) | |
| 26 | 139-1596 | [1] | PLATE | |
| 27 | 8T-0348 M | [1] | BOLT-SOCKET HEAD (M16X2X50-MM) | |
| 28 | 3E-4356 | [1] | WASHER-HARD (17.5X30X6-MM THK) | |
| 29 | 7X-2553 M | [2] | BOLT (M16X2X40-MM) | |
| 30 | 9X-8257 | [2] | WASHER (17.5X30X3.5-MM THK) | |
| 31 | 148-8444 | [1] | TEE AS-SWIVEL | |
| 6V-8398 | [2] | SEAL-O-RING | ||
| 6V-9837 | [1] | TEE-SWIVEL | ||
| 32 | 148-8392 | [1] | ELBOW AS | |
| 6V-9746 | [1] | SEAL-O-RING | ||
| 6V-9853 | [1] | ELBOW | ||
| 33 | 3K-0360 | [1] | SEAL-O-RING | |
| 6V-9746 | [1] | SEAL-O-RING | ||
| 6V-9874 | [1] | CONNECTOR (STRAIGHT) | ||
| 34 | 148-8455 | [1] | UNION AS | |
| 6V-8997 | [1] | UNION | ||
| 6V-9746 | [2] | SEAL-O-RING | ||
| 35 | 141-8203 | [1] | FLANGE | |
| 36 | 8T-4956 M | [6] | BOLT (M12X1.75X35-MM) | |
| 37 | 8T-4223 | [26] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 38 | 8T-4244 M | [8] | NUT (M12X1.75-THD) | |
| 39 | 4Z-5913 Y | [1] | VALVE GP-CONTROL (WORK TOOL) | |
| 40 | 4T-2958 I | [1] | HOSE AS | |
| 41 | 152-9086 I | [2] | HOSE AS | |
| 42 | 107-1418 I | [2] | HOSE AS | |
| 43 | 165-4933 | [1] | ELBOW AS | |
| 6V-8990 | [1] | ELBOW | ||
| 6V-9746 | [2] | SEAL-O-RING | ||
| 44 | 164-6863 | [1] | ELBOW AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 8C-6920 | [1] | ELBOW | ||
| 45 | 153-6244 | [1] | ELBOW AS | |
| 2M-9780 | [1] | SEAL-O-RING | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 8T-5389 | [1] | ELBOW | ||
| 46 | 087-4480 I | [1] | HOSE AS | |
| 47 | 145-4980 I | [2] | HOSE AS | |
| 48 | 145-4979 I | [1] | HOSE AS | |
| 49 | 179-3625 Y | [1] | PUMP GP-GEAR | |
| 50 | 129-7995 Y | [1] | DRIVE GP-AUXILIARY PUMP | |
| 51 | 103-0618 | [1] | BLOCK | |
| 52 | 148-8387 | [1] | ELBOW AS | |
| 6V-8400 | [1] | SEAL-O-RING | ||
| 6V-9855 | [1] | ELBOW | ||
| 53 | 6V-8400 | [1] | SEAL-O-RING | |
| 54 | 8T-5041 M | [5] | BOLT (M12X1.75X120-MM) | |
| 55 | 4J-0524 | [1] | SEAL-O-RING | |
| 56 | 6V-5696 M | [2] | BOLT (M12X1.75X80-MM) | |
| 57 | 127-1089 | [1] | MANIFOLD | |
| 58 | 5K-9090 | [3] | SEAL-O-RING | |
| 59 | 7X-2534 M | [8] | BOLT (M6X1X50-MM) | |
| 60 | 148-8380 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8988 | [1] | ELBOW | ||
| 61 | 148-8418 | [2] | REDUCER AS | |
| (EACH INCLUDES) | ||||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8942 | [1] | REDUCER-O-RING | ||
| 62 | 8U-1881 Y | [1] | PUMP GP-GEAR | |
| 63 | 9Y-4634 | [1] | GASKET | |
| 64 | 7C-1782 | [1] | GEAR-HYDRAULIC PUMP DRIVE (50-TEETH) | |
| 65 | 7C-1289 | [1] | ADAPTER | |
| 66 | 127-1090 | [1] | MANIFOLD | |
| 67 | 4J-5140 | [1] | SEAL-O-RING | |
| 68 | 149-2602 I | [1] | HOSE AS | |
| 69 | 2P-1293 | [2] | LOCKNUT (1-3/16-12-THD) | |
| 70 | 164-5581 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 6V-9511 | [1] | PLUG (1-3/16-12-THD) | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 74 | 8T-2525 | [4] | GROMMET | |
| 76 | 7K-1181 | [1] | STRAP-CABLE | |
| 78 | 1V-7753 | [1] | SPACER (0.546X0.841X1.75-IN THK) | |
| 79 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 80 | 145-4984 | [1] | SHEET AS | |
| 81 | 087-4587 | [1] | GROMMET | |
| 82 | 8T-6868 M | [1] | BOLT (M12X1.75X80-MM) | |
| 83 | 3D-8197 | [1] | SPACER (0.5X0.84X2.5-IN THK) | |
| 84 | 5P-1076 | [2] | WASHER-HARD (13.5X30X4-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
