商品の詳細:
お支払配送条件:
|
| エンジン番号: | 3116 3176 3306 | 部品番号: | 136-1206 1361206 |
|---|---|---|---|
| 製品名: | ジョイスティックハンドル制御 | 機械番号: | 312B L 315B 320B FM LL 320B L 322B L |
| アプリケーション: | 掘削機 | リードタイム: | 配達までに1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Excavator joystick handle control,3116 excavator spare parts,315B joystick replacement part |
||

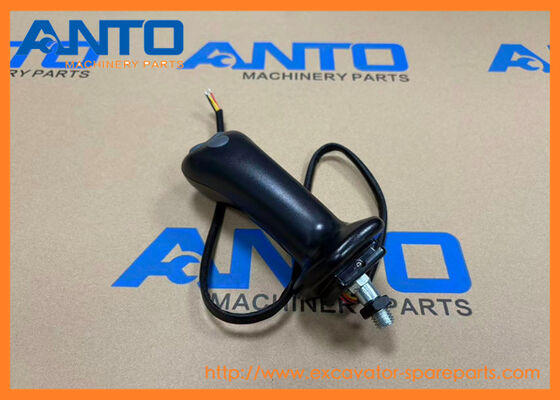

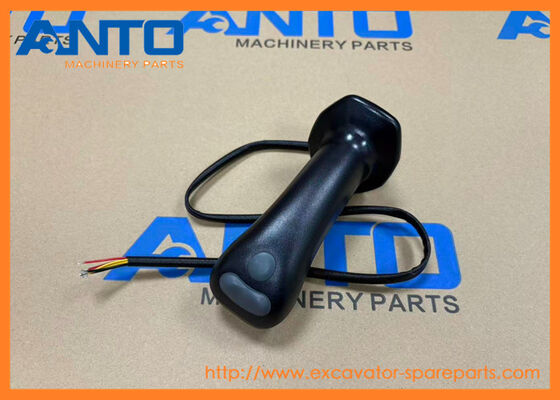

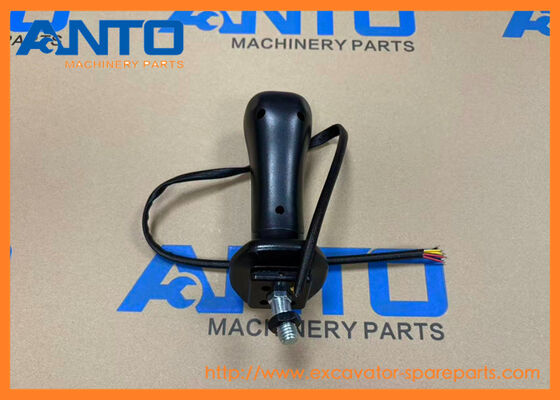

136-1206 1361206 Joystick Handle Control Excavator Spare Parts Fit For 3116 3176 312B L 315B
Specifiion
| Category | Pilot Valve |
| Name | Joystick Handle Control |
| Parts No | 136-1206 1361206 |
| Machine Number | 312B L 315B 320B FM LL 320B L 322B L 325B L 330B L |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1. Signal Conversion: Converts mechanical lever displacement into proportional hydraulic pressure signals (0–4 MPa) or electrical voltage signals (0–5 V) for system control.
2. Multi-Action Operation: Supports simultaneous control of 2–3 actuators (e.g., boom lifting + bucket tilting) for compound work efficiency.
3. Safety Protection: Integrated with a neutral position lock and emergency stop trigger to prevent accidental operation during startup or maintenance.
EXCAVATOR 312B L 315B 320B FM LL 320B L 322B L 325B L 330B L 345B II 345B L
MINI HYD EXCAVATOR 307B
WHEELED EXCAVATOR M313C M315C M316C M318 M318C M318C MH M320 M322C C.ater.pillar.
| 1385190 CONTROL GP-ENGINE ELECTRONIC |
| 307, 307B, 307C, 308C, 313B, 315B, 315B FM L, 315C, 317B LN, 318B |
| 1567172 CONTROL GP-ENGINE ELECTRONIC |
| 24H, 3408E, 3412E, 5110B, 631D, 631E, 631G, 633E II, 637E, 637G, 651E, 657E, 69D, 769C, 769D, 771D, 773B, 773D, 773E, 775B, 775D, 775E, 834B, 836, 844, 988B, 988F II, 990, 990 II, 992C, AD45, AE40 II,... |
| 1648285 CONTROL GP-ENGINE & HYD PUMP |
| 320B |
| 1453082 CONTROL GP-ENGINE & HYD PUMP |
| 345B, 345B L |
| 2218745 CONTROL GP-MACHINE |
| 345B, 345B L |
| 1434840 CONTROL GP-ENG RATINGS ELEK |
| 365B, 365B L |
| 1852547 CONTROL GP-ELECTRONIC |
| 365B L |
| 2115684 CONTROL GP-MONITOR |
| 365B, 365B L |
| 1777644 CONTROL GP-MACHINE |
| 345B II, 345B II MH, W345B II |
| 2115546 CONTROL GP-MACHINE |
| 345B II, 345B II MH, W345B II |
| 2115539 CONTROL GP-MACHINE |
| 345B II |
| 1573191 CONTROL GP |
| 345B L |
| 7W8944 CONTROL GP-MANUAL START/STOP |
| 3208, 3304, 3306, 3406B, 3408, 3412, 3508, 3512, 3516, G3306, G3406, G3408, G3508, G3512, G3516 |
| 1833159 CONTROL GP-HYDRAULIC HAND |
| 428D, 438D |
| 3186629 CONTROL AR-QUICK COUPLER |
| 938H |
| 9Y2273 CONTROL GP-ENGINE ELECTRONIC |
| 3406B |
| 1219300 CONTROL GP-TRANSMISSION |
| 950G, 950G II, 950H, 962G, 962G II, 962H, 966G, 966G II, 966H, 972G, 972G II, 972H, 986H, 988H, IT62G, IT62G II, IT62H |
| 3469062 CONTROL AR-HYDRAULIC |
| 120M 2, 12M 2, 140M 2, 160M 2 |
| 7U4599 CONTROL GP-BRAKE (K)(REAR) |
| D40D |
| 2970292 CONTROL AR-AUXILIARY |
| 320D, 320D L, 323D L |
| 5T4493 CONTROL GP-ANTISPIN |
| 789, 789B |
| 1771065 CONTROL GP-TRANSMISSION HYD |
| 966G, 972G |
| 1058869 CONTROL GP-ENG RATINGS ELEK |
| 3408B, 3412 |
| 3T4993 CONTROL GP-WINCH |
| D10N, D10R, D8L, D9L, D9N |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 096-1622 | [1] | BUSHING-TERMINAL | |
| 2 | 131-5863 | [2] | SPRING | |
| 3 | 118-4083 | [2] | SEAT | |
| 4 | 095-1586 | [4] | SEAL-O-RING | |
| 5 | 118-4086 | [4] | ROD | |
| 6 | 131-5915 M | [1] | NUT-SPECIAL | |
| 7 | 4I-6365 | [1] | JOINT | |
| 8 | 4I-6366 | [1] | PLATE | |
| 9 | 118-4087 | [4] | SPRING | |
| 10 | 094-0872 | [1] | PLATE | |
| 11 | 099-6136 | [8] | WASHER (5.1X12.5X1-MM THK) | |
| 12 | 118-4085 | [2] | SEAT | |
| 13 | 131-5864 | [2] | SPRING | |
| 14 | 099-6137 | [4] | WASHER (6.1X9X0.2-MM THK) | |
| 15 | 118-4082 | [4] | SPRING (STANDARD) | |
| -OR- | ||||
| 7I-7224 | [4] | SPRING (OPTIONAL) | ||
| (REDUCES OPERATING FORCE BY 10%) | ||||
| 16 | 131-5862 | [1] | BODY AS | |
| 17 | 096-1621 | [1] | SEAL-O-RING | |
| 18 | 087-4969 | [1] | PLATE | |
| 19 | 7Y-0468 | [1] | PIN-SPRING | |
| 20 | 096-4498 | [2] | WASHER-SEALING | |
| 21 | 6V-5192 M | [2] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 22 | 096-1628 | [4] | PLUG | |
| 23 | 094-0876 | [4] | SEAL | |
| 24 | 4I-1764 | [1] | PLATE | |
| 25 | 5B-9304 | [2] | SCREW-DRIVE (NO 2X3/16-IN) | |
| 26 | 121-1563 | [2] | SEAT | |
| 27 | 121-1631 | [2] | SEAT | |
| AVAILABLE REPLACEMENT PART(S): | ||||
| 134-7059 | [2] | KIT-SPOOL (PILOT VALVE) | ||
| (FOR PORTS NO. 2 & 4. PROVIDES CONTROLLABILITY COMPARABLE TO A-SERIES MACHINES) | ||||
| 134-7060 | [2] | KIT-SPOOL (PILOT VALVE) | ||
| (FOR PORTS NO. 1 & 3. PROVIDES CONTROLLABILITY COMPARABLE TO A-SERIES MACHINES) | ||||
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
