商品の詳細:
お支払配送条件:
|
| エンジン型式: | C4.4 C7.1 | 機械型式: | 318D2 L 320D 323D L 323D2 L 324D 326D L |
|---|---|---|---|
| アプリケーション: | 掘削機 | 製品名: | ハンドル |

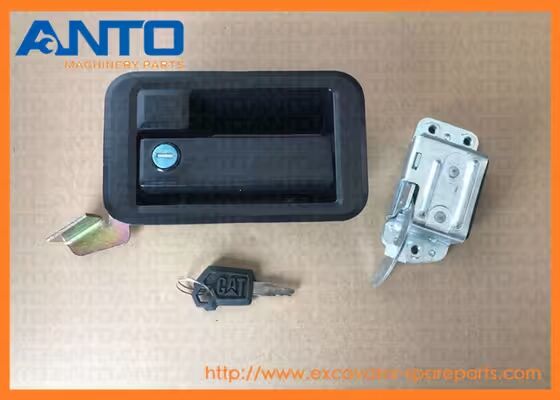

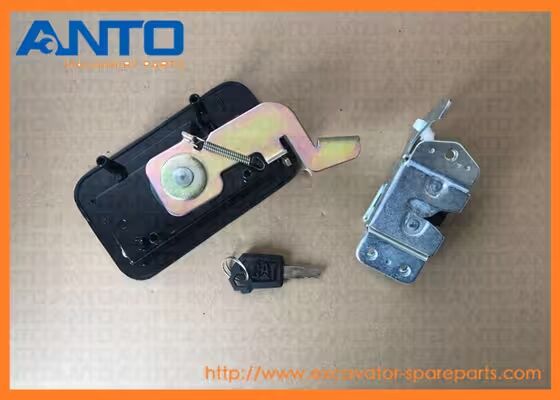

| 部品番号: | 398-7111 3987111 | パッキング: | 標準輸出カートン |
| ハイライト: | Excavator handle spare part,C4.4 C7.1 excavator handle,320D2 323D3 handle replacement |
||
| Name | Handle |
| Parts No | 398-7111 3987111 |
| Machine Model | 312D 312D2 312D2 GC 312D2 L 313D 313D2 313D2 LGP 318D L |
| Category | Door Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| Acts as the main control interface between the operator and the machine. |
| Transmits manual control signals to the main hydraulic valve and controller. |
| Controls all key movements: boom up/down, arm in/out, bucket open/close, swing, and travel. |
| Includes built-in switches for working modes, safety functions, and auxiliary controls. |
| 3717147 HANDLE |
| 312D, 312D2 GC, 313D, 313D2, 313D2 LGP, 315D L, 318D L, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323D L, 323D2 L, 324D, 326D L, 329D, 329D L, 336D, 336D L, 336D2, 340D L, 340... |
| 3727595 HANDLE AS |
| 314D CR, 314D LCR, 320D LRR, 320D RR |
| 3137861 HANDLE |
| 311D LRR, 311F LRR |
| 1603580 HANDLE |
| 320B FM LL, 320C FM, 325B L, 325C, 325C L, 325D MH, 330B L, 330C L, 330C MH, 330D MH, 345B, 345B II, 345B II MH, 345C, 345C MH, 350 L, 365B, 365B II, 365C L MH, 375 L, 385C L MH, M318D MH, M322D MH, M... |
| 2923967 HANDLE AS |
| M313D, M315D, M316D, M318D, M318D MH, M322D, M322D MH, M325D L MH, M325D MH, M330D |
| 2667488 HANDLE AS |
| M313D, M315D, M316D, M318D, M318D MH, M322D, M322D MH, M325D L MH, M325D MH, M330D |
| 3843531 HANDLE |
| 316E L, 318E L |
| 3786586 HANDLE |
| M313D, M315D, M316D, M318D, M318D MH, M322D, M322D MH |
| 3346490 HANDLE |
| 312D, 312D L, 312E, 312E L, 315D L, 316E L, 318E L, 319D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D L, 323D LN, 323D SA, 323E L, 324D, 324D L, 324E, 32... |
| 3346478 HANDLE |
| 312D, 312D L, 312E, 312E L, 315D L, 316E L, 318E L, 319D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D L, 323D LN, 323D SA, 323E L, 324D, 324D L, 324E, 32... |
| 3346537 HANDLE AS |
| 312D, 312D L, 312E, 312E L, 315D L, 316E L, 318E L, 319D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D L, 323D LN, 323D SA, 323E L, 324D, 324D L, 324E |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 151-6703 | [1] | HANDLE-PULL | |
| 2 | 151-6704 | [2] | CAP | |
| 3 | 384-6533 Y | [1] | WINDOW GP-DOOR | |
| 4 | 383-6933 | [1] | GLASS | |
| 5 | 156-6598 | [1] | HOOK | |
| 6 | 398-7107 | [1] | LOCK AS | |
| 6A. | 398-7105 | [1] | CLIP | |
| 398-7105 | [1] | CLIP | ||
| 7 | 156-6643 | [2] | COVER | |
| 8 | 398-7111 | [1] | HANDLE AS | |
| 398-7106 | [1] | CLIP | ||
| 9 | 161-3639 | [1] | HANDLE AS | |
| 10 | 161-3650 | [1] | COVER AS | |
| 11 | 161-3663 | [1] | SEAL AS | |
| 151-9497 | [45] | CLIP | ||
| 12 | 161-3665 | [1] | SEAL | |
| 13 | 164-0515 | [1] | JOINT | |
| 14 | 167-7039 | [1] | GROMMET | |
| 15 | 185-8180 M | [3] | SCREW (M6X1X16-MM) | |
| 16 | 8T-4224 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 17 | 259-7354 | [1] | COVER | |
| 18 | 096-2622 M | [2] | SCREW-MACHINE (M4X0.7X8-MM) | |
| 19 | 096-3884 M | [2] | NUT-SPRING (M8X1.25-THD) | |
| 20 | 101-8899 M | [2] | SCREW AS (M6X1.0X16-MM) | |
| 21 | 101-8900 M | [2] | SCREW AS (M6X1X20-MM) | |
| 22 | 151-9461 | [4] | SPACER | |
| 23 | 178-5573 | [4] | SPACER | |
| 24 | 178-5574 | [3] | SPACER | |
| 25 | 189-2690 | [1] | HANDLE | |
| 26 | 4I-4286 | [1] | KNOB (HANDLE) | |
| 27 | 9X-2042 M | [8] | SCREW-TRUSS HEAD (M6X1X12-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
