商品の詳細:
お支払配送条件:
|
| カテゴリ: | 旅行用モーター部品 | 機械型式: | DX220AF DX225LCB DX230LC DX235LCR |
|---|---|---|---|
| アプリケーション: | 掘削機 | 製品名: | ギヤ |
| 部品番号: | K9007390 | パッキング: | 標準輸出カートン |
| ハイライト: | Excavator travel motor parts,DX220AF travel motor components,DX230LC excavator motor parts |
||

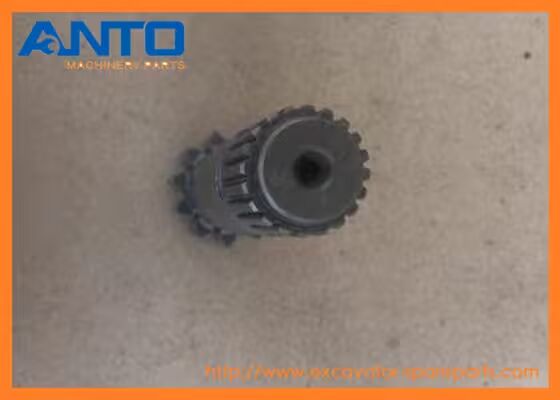

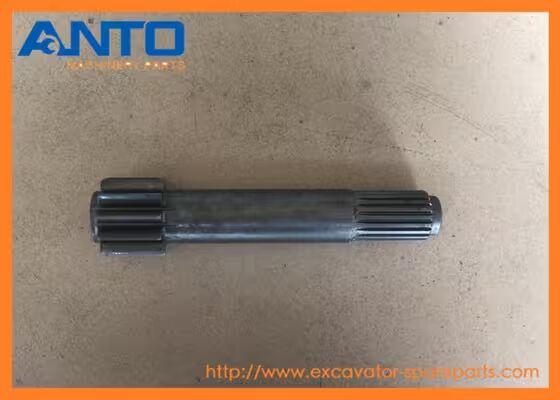

| Name | Gear |
| Parts No | K9007390 |
| Machine Model | DX210 DX220AF DX225LCB DX230LC DX235LCR |
| Category | Travel Motor Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| Transmits engine power to the track drive system (final drive / travel device). |
| Provides proper torque and speed for machine movement. |
| Ensures smooth and stable forward/reverse travel of the excavator. |
| Withstands heavy load, impact, and continuous working conditions. |
| K9007391 GEAR;SUN |
| Doosan |
| 4472 319 166 GEAR;RING |
| Doosan |
| FRP-0965-09 GEAR;S1 |
| Doosan |
| FZD-8272-1-06 GEAR;B1 |
| Doosan |
| FRP-0961-08 GEAR;S1 |
| Doosan |
| 1164031002 GEAR |
| Doosan |
| 1100039132 GEAR |
| Doosan |
| 7514-192 GEAR(2) |
| Doosan |
| 7514-190 GEAR;SUN |
| Doosan |
| 65.02115-0007 GEAR;CRANK SHAFT |
| Doosan |
| 65.38502-0004 GEAR;IDLE P.T.O |
| Doosan |
| Pos. | Part No | Qty | Parts name | Comments |
| -. | K9007404 | [1] | REDUCTION GEAR | 170402-00028 |
| -. | 170402-00028 | [1] | ||
| 101 | K9007383 | [1] | SPINDLE | K9007383A |
| 101 | K9007383A | [1] | ||
| 102 | 1.180-00512 | [1] | SEAL;FLOATING | |
| 103 | *NA00325 | [1] | ||
| 104 | K9007412 | [1] | CARRIER NO 2 ASSY | |
| 105 | K9007384 | [1] | HUB | |
| 105 | 900122-00079 | [1] | ||
| 106 | 1.540-00003 | [1] | PIECE;DISTANCE | |
| 107 | K9007388 | [3] | BEARING;SHAFT | |
| 108 | K9007393 | [4] | GEAR;PLANETARY | |
| 109 | K9007394 | [8] | WASHER;THRUST | |
| 110 | S5740960 | [4] | PIN;SPRING | |
| 111 | K9007402 | [4] | BEARING;NEEDLE | |
| 112 | K9007396 | [4] | BUSH;FLOATING | |
| 113 | K9007392 | [4] | SHAFT | |
| 114 | K9007391 | [1] | GEAR;SUN | |
| 115 | S6500750 | [1] | RING;RETAINING | |
| 116 | K9007411 | [1] | CARRIER NO 1 ASSY | |
| 117 | K9007387 | [3] | GEAR;PLANETARY | |
| 118 | 1.216-00017 | [3] | CAGE,NEEDLE | |
| 121 | K9007390 | [1] | GEAR;DRIVE | |
| 122 | S5740770 | [3] | PIN;SPRING | |
| 123 | K9007385 | [1] | COVER | |
| 123 | 110508-09675 | [1] | ||
| 124 | S2212266 | [16] | BOLT | |
| 125 | K9007403 | [2] | BEARING;ANGULAR BALL | |
| 126 | S8012300 | [1] | O-RING | |
| 128 | 2181-1890D4 | [3] | PLUG | |
| 129 | K9007386 | [1] | RING;SEAL | K9007386A |
| 129 | K9007386A | [1] | ||
| 130 | 1.180-00144 | [1] | O-RING | |
| 131 | K9007389 | [6] | WASHER;THRUST | |
| 132 | K9004304 | [1] | WASHER;THRUST | |
| 133 | 1.412-00157 | [1] | PLATE;THRUST | |
| 134 | *NA00324 | [1] | ||
| 136 | K9007395 | [2] | PLATE;SHIM | K9007395A |
| 136 | K9007395A | [2] | ||
| 137 | 401002-00739 | [1] | ||
| 38 | S8000181 | [3] | O-RING |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
