商品の詳細:
お支払配送条件:
|
| カテゴリ: | 移動ギアボックスの部品 | 機械型式: | EC250D EC250E EC300D EC300E |
|---|---|---|---|
| アプリケーション: | 掘削機 | 製品名: | プラネットキャリアNo.2Assy |
| 部品番号: | VOE14599939 | パッキング: | 標準輸出カートン |
| ハイライト: | Planet Carrier Excavator Travel Gearbox,Excavator Gearbox Parts EC250D EC300D,Travel Gearbox Parts for EC250E EC300E |
||

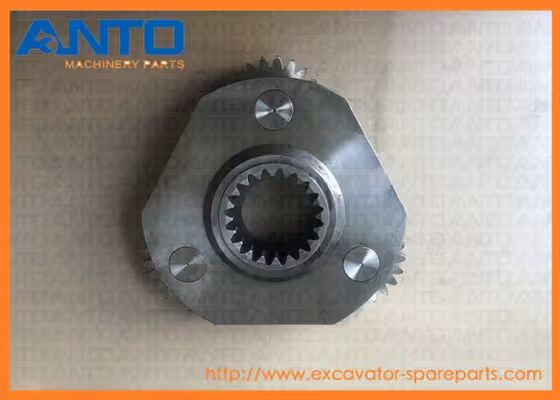

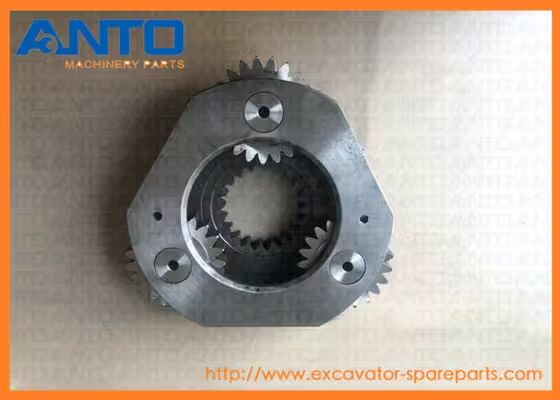

| Name | Planet Carrier No.2 Assy |
| Parts No | VOE14599939 14599939 |
| Machine Model | EC250D EC250E EC300D EC300E |
| Category | Travel Gearbox Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| 1.A planet carrier is a key component inside a planetary gear assembly, which is widely used in the final drive / travel motor / reduction gearbox of heavy equipment. |
| 2.It holds and supports the planet gears so they can rotate around the sun gear and ring gear. |
| 3.Its job is to transmit torque and reduce speed to drive the machine’s tracks or wheels smoothly and powerfully. |
| VOE14603090 Planet carrier |
| EW160D, EW160E, EW180C, EW180D, EW180E, EW205D, EW210D, EW230C, EWR150E |
| VOE15185465 Planet gear |
| EW140C, EW140D |
| VOE14558067 Planet Carrier |
| EW140E, EW145B, EW160C, EW160D, EW180C, EW180D, EW205D, EW210C, EW210D, EW230C |
| VOE14560525 Planet carrier |
| EW140C, EW140D |
| VOE17219487 Planet gear |
| EW160E, EW180C, EW180E, EW205D, EW210D, EWR150E, L45H, L50H |
| VOE14560278 Planet carrier |
| EW140C |
| VOE17443616 Planet gear |
| EW140E, EW145B, EWR150E |
| VOE15185465 Planet gear |
| EW140C, EW140D |
| VOE14603090 Planet carrier |
| EW160D, EW160E, EW180C, EW180D, EW180E, EW205D, EW210D, EW230C, EWR150E |
| VOE1650536 Planet kit |
| A35 |
| VOE11711916 Planet carrier |
| EW140B, L40, L40B, L45, L45B |
| VOE11705028 Planet carrier |
| EW160, EW160B |
| VOE11711960 Planet carrier |
| EW140B, L40, L40B, L45, L45B |
| VOE14558067 Planet Carrier |
| EW140E, EW145B, EW160C, EW160D, EW180C, EW180D, EW205D, EW210C, EW210D, EW230C |
| VOE11705863 Planet carrier |
| EW160, EW160B |
| VOE11713101 Planet gear |
| EW140, EW140B, EW160, EW160B |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14599921 | [1] | Travel gearbox | ||
| 1 | VOE14599922 | [1] | Housing | |
| 2 | VOE14599932 | [1] | Gear | |
| 3 | SA14599923 | [2] | Bearing | |
| 4 | VOE14599927 | [1] | Shim | THICK = 0,6 MM |
| 4 | VOE14599928 | [1] | Shim | THICK = 0,8 MM |
| 4 | VOE14599929 | [1] | Shim | THICK = 1,0 MM |
| 4 | VOE14599930 | [1] | Shim | THICK = 0,7 MM |
| 4 | VOE14599931 | [1] | Shim | THICK = 0,9 MM |
| 4 | VOE14607977 | [1] | Shim | THICK = 1,1 MM |
| 5 | VOE14599926 | [1] | Retainer | |
| 6 | VOE14599933 | [1] | Planet carrier | |
| 7 | 14599934 | [1] | Carrier | |
| 8 | VOE14566415 | [4] | Pin | |
| 9 | VOE14599935 | [4] | Planetary Gear | |
| 10 | VOE14566414 | [8] | Washer | |
| 11 | SA9325-06012 | [4] | Spring pin | |
| 12 | SA1036-00300 | [1] | Ring | |
| 13 | VOE14566412 | [4] | Needle bearing | |
| 14 | VOE983919 | [16] | Hex. socket screw | |
| 15 | VOE14599938 | [1] | Gear | |
| 16 | VOE14599939 | [0001] | Planet carrier | |
| 17 | VOE14599944 | [3] | Pin | |
| 18 | 14599940 | [1] | Carrier | |
| 19 | VOE14599941 | [3] | Planetary Gear | |
| 20 | VOE14599943 | [6] | Washer | |
| 21 | SA9325-06012 | [3] | Spring pin | |
| 22 | VOE14599942 | [3] | Needle Bearing | |
| 23 | VOE14566433 | [1] | Thrust washer | |
| 24 | VOE14599945 | [1] | Gear | |
| 25 | VOE14599946 | [1] | Planet carrier | |
| 26 | 14599947 | [1] | Carrier | |
| 27 | VOE14599948 | [3] | Planetary Gear | |
| 28 | VOE14599950 | [6] | Washer | |
| 29 | VOE14599951 | [3] | Pin | |
| 30 | VOE951955 | [3] | Spring pin | |
| 31 | VOE14599949 | [3] | Needle Bearing | |
| 32 | VOE14569232 | [1] | Ring | |
| 33 | VOE14566417 | [1] | Ring | |
| 34 | VOE14599952 | [1] | Gear | |
| 35 | VOE9541-01038 | [1] | Snap Ring | |
| 36 | VOE14599953 | [1] | Cover | |
| 37 | VOE982211 | [18] | Hexagon screw | |
| 38 | SA9213-20000 | [18] | Spring washer | |
| 39 | VOE14883847 | [2] | Plug | |
| 40 | VOE990557 | [2] | O-ring | |
| 41 | VOE9324-21617 | [4] | Pin | |
| 42 | VOE14599925 | [1] | Seal |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
