商品の詳細:
お支払配送条件:
|
| カテゴリ: | 空調・冷却・暖房ライン | 機械型式: | EC140D EC220D EC330B EC330C EC340D |
|---|---|---|---|
| アプリケーション: | 掘削機 | 製品名: | コンデンサー |
| 部品番号: | VOE14591537 14591537 | パッキング: | 標準輸出カートン |
| ハイライト: | Excavator AC condenser EC140D EC220D,Excavator air conditioner parts EC330B,Condenser for excavator AC system |
||

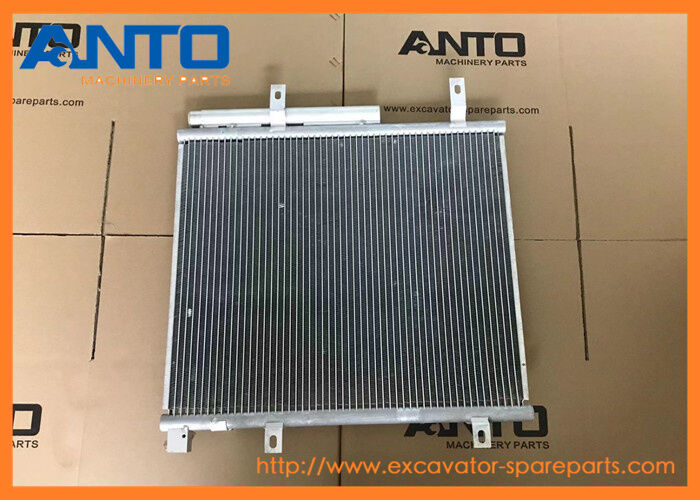

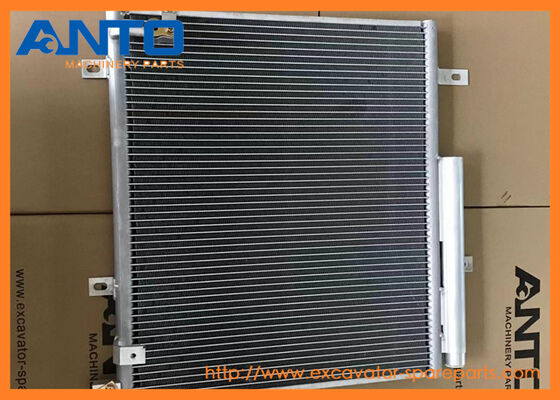

| Name | Condenser |
| Parts No | VOE14591537 14591537 |
| Machine Model | EC140D EC220D EC330B EC330C EC340D EC360B EC360C EC380D |
| Category | Air Conditioning Line, Cooling and Heater |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| It receives high-temperature, high-pressure gaseous refrigerant from the A/C compressor. |
| Using ambient air flow (often assisted by a cooling fan), it cools the gas, causing it to condense into a high-pressure liquid. |
| This liquid refrigerant then flows to the expansion valve and evaporator to produce cool air for the operator's cab. |
EC Series: EC120D, EC140C, EC140D, EC140E, EC200D, EC200E, EC210D, EC220D, EC330B, EC330C, EC340D, EC360B, EC360C, EC380D
EW Series: EW140E, EW145B, EW205D
| VOE16054516 Condenser |
| L120GZ, L60GZ, L90GZ |
| VOE16049297 Condenser |
| L105 |
| VOE17445145 Condenser |
| MC110C-MCT145C |
| VOE14659971 Condenser |
| EC55D, EC60E, EC80D, ECR58D, ECR88D, EW60E |
| VOE20515136 Condenser |
| L150E, L180E, L220E |
| VOE14599910 Condenser |
| EC120D, EC140C, EC140D, EC140E, EC200D, EC210D, EC220D, EC330B, EC380D, ECR145E, ECR235E, EW140E, EW145B, EW205D |
| TEL15428446 Condenser |
| .Heavy |
| TEL15396575 Condenser |
| .Heavy |
| VOE14720504 Condenser |
| Heavy |
| VOE14595786 Condenser |
| .Heavy |
| VOE14558843 Condenser |
| Heavy |
| VOE12798304 Condenser |
| SD110B |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14531363 | [1] | Condenser | S/N -110141- |
| VOE14529050 | [2] | O-ring | ||
| VOE14591537 | [1] | Condenser | S/N 110142- | |
| VOE14612048 | [1] | Filter | ||
| VOE14591545 | [1] | Switch | ||
| VOE914515 | [1] | Retaining ring | ||
| 2 | VOE14509377 | [1] | Receiver drier | S/N -110141 |
| VOE14591545 | [1] | Switch | ||
| 3 | VOE14532996 | [1] | Condenser | S/N -110141 |
| 4 | VOE14532997 | [1] | Hose | S/N -110141 |
| 5 | VOE11128923 | [1] | Belt | |
| 6 | VOE14515524 | [7] | Clip | |
| 7 | VOE14508067 | [1] | Hose | |
| 8 | VOE11412631 | [1] | Compressor | S/N -110110 |
| VOE14578498 | [1] | Clutch | ||
| VOE15082727 | [1] | Compressor | S/N 110111- | |
| VOE14650712 | [1] | Clutch | ||
| 9 | VOE14518967 | [1] | Grommet | |
| 10 | VOE14529064 | [1] | Grommet | |
| 11 | VOE14529258 | [1] | Bracket | |
| 12 | VOE14531203 | [1] | Hose | |
| 13 | VOE14531204 | [1] | Hose | S/N -110141 |
| VOE14608469 | [1] | Hose | S/N 110142- | |
| 14 | VOE14531205 | [1] | Hose | |
| 15 | VOE14880627 | [1] | Clip | |
| 16 | SA9011-20818 | [4] | Hexagon screw | |
| 17 | VOE945407 | [4] | Flange nut | |
| 18 | VOE946173 | [2] | Flange screw | |
| 19 | VOE946441 | [4] | Flange screw | |
| 20 | VOE946471 | [0 8] | Flange screw | |
| 21 | VOE120001 | [4] | Plain washer | |
| 22 | VOE14505515 | [1] | Sensor |
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
