| カテゴリ: | 掘削機の最終駆動装置 | 機械型式: | SH200 |
|---|---|---|---|
| 各部の名称: | SH200ドライブハブ | 材料: | 鍛造、スチール |
| 保証: | 3〜6か月 | パッケージ: | 標準輸出カートン |
| ハイライト: | Sumitomo SH200 final drive hub,excavator final drive gear housing,Sumitomo excavator final drive parts |
||

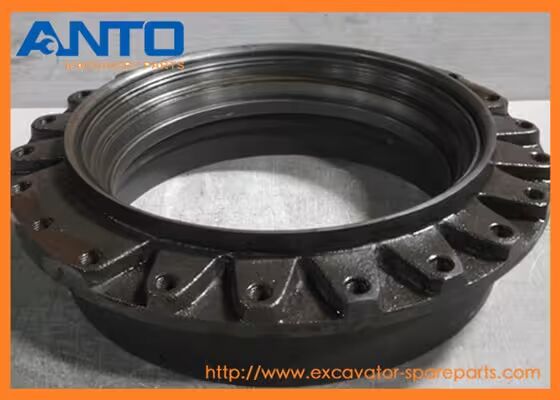

160094A1 and 160144A1 are a matched set of Final Drive components for Case, Link-Belt, and Sumitomo heavy machinery (e.g., SH200 excavators). They work together in the travel drive gearbox to deliver torque to the undercarriage.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
| PARTS NAME | SH200 Final drive HUB |
| EQUIPMENT | SH200 Excavator |
| Category | Excavator final drive |
| ITEM CONDITION | New |
| Appliion | Replacement |
| MATERIAL | Steel |
| PROCESSING | Casting |
| MOQ | 1 pcs |
| J918776 GEAR |
| 2555, PX190, 420, PX215, 420 TIER 3, PX240, 620, 625, 2166, 2188, 2366, 2377, 2388, 2577, 2588, CX330, 6TAA-8304 275HP, 6TAA-8304 305HP, CPX420, 6TAA-9004 350HP, CPX610, CPX620, STEIGER 280, STEIGER 3... |
| J905427 GEAR |
| 5140, 688BCK, PX190, 5150, 1666, PX215, 420 TIER 3, CX240, PX240, 5230, 1680, 5240, 5250, 855D, 1688, 1800, 2144, 2166, 688C, 2188, 1822, 2344, 750K, 2366, W14B, 1844, 2377, W14C, 2388, 2022, 2044, 25... |
| J918777 GEAR |
| 2555, 7130, PX190, 420, MX210, 721B, 821B, MX180, 721C, 821C, 2166, 2188, MX220, PX215, 2366, 2377, MX230, SPX4260, 2388, 7140, 7150, MX200, 7220, PX240, 885, 9040B, 7230, 9045B, 7240, 7250, 8910, 892... |
| J931387 GEAR |
| 586E, 580L, 85XT, 2144, 621B, 570LXT, 90XT, 580SL, 585E, 888, 584E, 9030B, 590SL, 9020B, 95XT, 9010B, 590L |
| J931379 GEAR |
| 721C, 821C, 8910, 2166, 8920, 721B, 2188, 9040B, 8930, 821B, 9045B, 8940, MX180, 885, 7240 |
| 160520A1 GEAR |
| CX210LR, 9020B, CX160B, CX160C, CX160D LC, CX210B, CX210C LC, 9030B, CX225SR, CX210N, CX210C LR, CX210D LC LR, CX210BNLC, CX210C NLC, CX210D NLC, CX160, CX235C SR, CX210 |
| 160145A1 GEAR WHEEL |
| 9040B, 9030B |
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 160142A1 | [1] | REDUCER | SUM TRANSMISSION ASSEMBLY - without track drive motor, Includes: Ref. 1 - 6 |
| . . | 160146A1 | [1] | GEAR WHEEL | SUM CARRIER ASSEMBLY A - planetary gear; Incl Ref 1 - 6 |
| 1 | 160094A1 | [1] | GEAR WHEEL | SUM CARRIER A - planetary gears |
| 2 | 160004A1 | [3] | SUN GEAR | SUM GEAR - planetary |
| 3 | 160278A1 | [3] | BEARING, NEEDLE,30mm ID x 40mm OD x 19.8mm W | SUM NEEDLE - bearing |
| 4 | 160029A1 | [3] | LARGE PIN | SUM SHAFT - gear |
| 5 | 160291A1 | [6] | THRUST WASHER | SUM WASHER - thrust |
| 6 | 160109A1 | [2] | PIN, ROLL | SUM PIN - roll, special |
| . . | 160144A1 | [1] | HOLDER | SUM CARRIER ASSEMBLY B - planetary gear, replaces 160144A1, carrier assembly B (replaces 164714A1 ), Includes: Ref. 7 - 12 |
| 7 | 160095A1 | [1] | GEAR WHEEL | SUM CARRIER B - planetary gears |
| 8 | 160005A1 | [4] | SUN GEAR | SUM GEAR - planetary |
| 9 | 160273A1 | [4] | NEEDLE BEARING,35mm ID x 51mm OD x 24.8mm W | SUM BEARING - roller |
| 10 | 160030A1 | [4] | SHAFT | SUM - gear |
| 11 | 160043A1 | [3] | THRUST WASHER | SUM WASHER - thrust |
| 12 | 160098A1 | [4] | PIN, ROLL | SUM PIN - roll, special |
| . . | 160145A1 | [1] | GEAR WHEEL | SUM CARRIER ASSEMBLY C - planetary gear, Includes: Ref. 13 - 20 |
| 13 | 160207A1 | [1] | HOLDER | SUM CARRIER C - planetary gears |
| 14 | 160010A1 | [4] | SUN GEAR | SUM GEAR - planetary |
| 15 | 160326A1 | [68] | ROLLER | SUM NEEDLE - bearing |
| 16 | 160031A1 | [4] | SHAFT | SUM - gear |
| 17 | 160037A1 | [4] | BUSHING | SUM RACE - bearing |
| 18 | 160093A1 | [8] | COLLAR | SUM - needle retaining |
| 19 | 160044A1 | [8] | THRUST WASHER | SUM WASHER - thrust |
| 20 | 160099A1 | [4] | PIN, ROLL | SUM PIN - roll, special |
| 21 | 160007A1 | [1] | PINION | SUM GEAR - drive |
| 22 | 160038A1 | [1] | PLATE, THRUST | SUM PLATE - thrust |
| 23 | 160008A1 | [1] | SUN GEAR | SUM GEAR B - sun |
| 24 | 160009A1 | [1] | SUN GEAR | SUM GEAR C - sun Superseded by part number: 155283A1 |
| 25 | 155643A1 | [1] | RING, SNAP | SUM RING - snap |
| 26 | NSS | [1] | NOT SOLD SEPARAT | CON FLANGE - final drive transmission |
| 27 | 156144A1 | [2] | BEARING, BALL,240mm ID x 310mm OD x 32mm W | SUM BEARING - ball |
| 28 | NSS | [1] | NOT SOLD SEPARAT | CON HOUSING - bearing |
| 29 | 160223A1 | [1] | SHIM KIT | SUM KIT - shim |
| 30 | 160104A1 | [4] | PIN | SUM - dowel |
| 31 | 863-16090 | [4] | HEX SOC SCREW,M16 x 90mm, Cl 12.9 | SUM BOLT - hex socket, 16-2.0 x 90 mm, class 12.9 Superseded by part number: 2465671 |
| 32 | 863-18055 | [16] | HEX SOC SCREW,M18 x 55mm, Cl 12.9 | SUM BOLT - hex socket, 18-2.5 x 55 mm, class 12.9 Superseded by part number: 108R018Z055N |
| 33 | 156338A1 | [4] | PLATE | SUM - lock |
| 34 | 160006A1 | [1] | PINION | SUM GEAR - ring |
| . . | 160575A1 | [1] | SEAL KIT | SUM KIT - seal, replaces 160224A1, seal kit, Includes: Ref. 35 and 36 |
| 35 | 155299A1 | [1] | SEAL | SUM - face Superseded by part number: LE01126 |
| 36 | 155183A1 | [1] | O-RING | SUM - seal |
| 37 | 156200A1 | [16] | BOLT,M14 x 95mm | SUM BOLT - hex socket, 14-2.0 x 95 mm |
| 38 | 155647A1 | [3] | COTTER PIN | SUM PIN - dowel |
| 39 | 160220A1 | [1] | SET OF PARTS | SUM KIT - thrust plate |
| 40 | 160325A1 | [1] | COVER | SUM - final drive transmission |
| 41 | 863-10020 | [16] | HEX SOC SCREW,M10 x 20mm, Cl 12.9 | CAS BOLT - hex socket, 10-1.5 x 20 mm, class 12.9 |
| 42 | 151033A1 | [3] | PLUG | SUM - hex socket, special |
| 43 | 151026A1 | [1] | PLUG | SUM - port |
| 44 | 151022A1 | [1] | PLUG | SUM - hex socket, special |
| 45 | 892-10016 | [4] | LOCK WASHER,M16 | SUM WASHER - lock, 16 mm |
| 46 | 155578A1 | [1] | PIN | SUM - dowel |
| 47 | 160002A1 | [1] | COUPLING | SUM - drive motor Superseded by part number: 155257A1 |
| 48 | 738-1650 | [1] | LOCK PIN,M6 x 50, Slotted | CAS PIN - roll, 6 x 50 mm |
