商品の詳細:
お支払配送条件:
|
| カテゴリ: | ディッパー・アーム・シリンダー | 機械モデル: | EC460B EC460C EC460CHR EC480DHR |
|---|---|---|---|
| 製品名: | シールキット | アプリケーション: | ミニ油圧掘削機 |
| 部品番号: | 14589144 | パッキング: | 標準輸出カートン |
| ハイライト: | Excavator arm cylinder seal kit,EC460B excavator cylinder parts,EC480DHR hydraulic seal kit |
||
| Appliion | Excavator |
| Name | Seal Kit |
| Parts No | 14589144 |
| Machine Model | EC460B EC460C EC460CHR EC480DHR |
| Category | Arm Cylinder |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| 1. Description & Function |

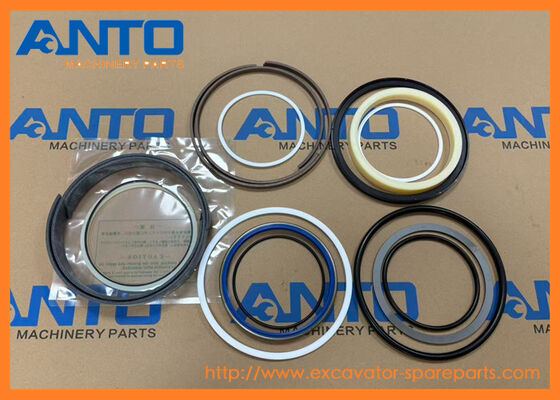

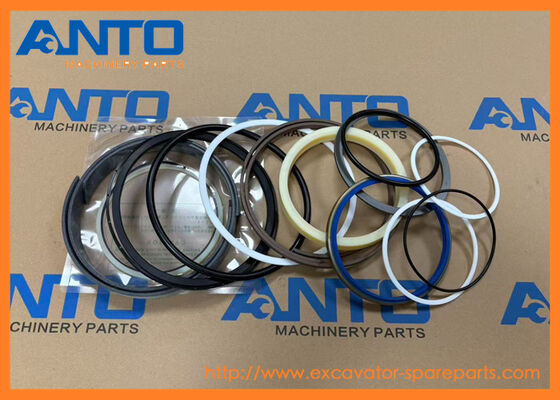

| This is a complete set of sealing components, including oil seals, O-rings, gaskets and wear rings. It prevents hydraulic oil leakage, keeps internal pressure stable and stops dust, water and impurities from entering the hydraulic system. |
| 2. Features |
| Manufactured with high-quality rubber and composite materials. It has excellent oil resistance, high pressure resistance and durability, adapting to harsh construction working conditions. |
EXCAVATORS EC460B EC460C EC460CHR EC480DHR
| VOE20538793 Sealing strip |
| A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250... |
| VOE1675066 Sealing ring |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS,... |
| VOE21123014 Sealing strip |
| A35D, A35E, A35E FS, A40D, EC330B, EC330C, EC360B, EC360C, EC360CHR, EC460B, EC460C, EC460CHR, L150E, L150F, L180E, L180F, L180F HL, L220E, L220F, PL4608, PL4611, T450D |
| VOE21532258 Sealing ring |
| A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250... |
| VOE21293367 Sealing strip |
| A35F/G, A35F/G FS, A35G, A40G, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250G, L250H, PL4809E |
| VOE20430678 Sealing ring |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR |
| VOE14589140 Sealing kit |
| EC330B, EC330C, EC340D, EC360B, EC360C, EC360CHR, EC380D, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14535510 | [1] | Dipper Arm Cylinder | SER NO 11515-12094 SER NO 80001-82626 | |
| VOE14559322 | [1] | Cylinder | SER NO 12095- SER NO 82627- | |
| 1 | VOE14530667 | [1] | Washer | |
| 2 | SA1146-05850 | [1] | Pin | |
| 3 | VOE14535414 | [1] | Lock nut | |
| 4 | SA9612-13050 | [1] | Bearing | |
| 5 | SA1146-08160 | [1] | Seal | |
| 6 | [1] | Head | ||
| 7 | [1] | Tube | ||
| 8 | VOE14515557 | [1] | Bushing | |
| 9 | VOE14560211 | [2] | Seal | |
| 10 | VOE14535511 | [1] | Rod | SER NO 11515-12094 SER NO 80001-82626 |
| VOE14559348 | [1] | Rod | SER NO 12095- SER NO 82627- | |
| 11 | VOE14515557 | [1] | Bushing | |
| 12 | VOE14560211 | [2] | Seal | |
| 13 | [1] | Piston | ||
| 14 | VOE14512074 | [1] | Seal | |
| 15 | SA9565-11900 | [2] | Wear ring | |
| 16 | SA9568-01900 | [2] | Seal | |
| 17 | VOE14507747 | [1] | Cushion | |
| 18 | VOE14524055 | [1] | Cushion | |
| 19 | SA9016-22219 | [14] | Hex. socket screw | |
| 20 | VOE14526459 | [1] | Screw | |
| 21 | VOE990598 | [1] | O-ring | |
| 22 | VOE990656 | [1] | O-ring | |
| 23 | SA9557-13000 | [1] | Retaining ring | |
| 24 | SA9557-12000 | [1] | Retaining ring | |
| 25 | SA9563-21303 | [1] | Seal | |
| 26 | SA9564-21300 | [1] | Seal | |
| 27 | SA9566-41100 | [2] | Back-up ring | |
| 28 | SA9566-31750 | [1] | Back-up ring | |
| 29 | SA9567-21301 | [1] | Back-up ring | |
| VOE14589144 | [1] | Sealing kit |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
