| エンジン番号: | 3126 3126B | 部品番号: | 191-2942 1912942 |
|---|---|---|---|
| 製品名: | ピストンポンプ | 機械番号: | 950G II 962G II |
| 応用: | ホイールローダー | リードタイム: | 配達までに1〜3日 |
| パッキング: | 標準輸出カートン | ||
| ハイライト: | Hydraulic piston pump for 3126 engine,Wheel loader engine parts fitting,950G 962G hydraulic pump replacement |
||

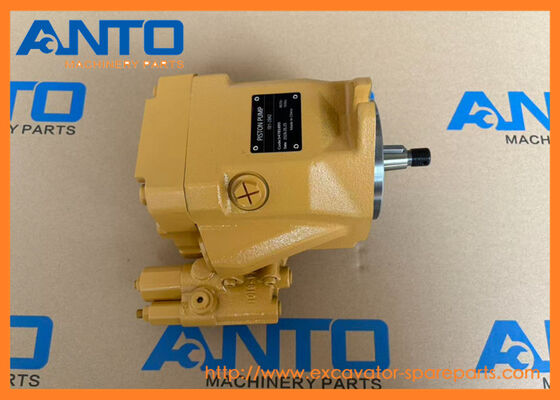

191-2942 1912942 Hydraulic Piston Pump Wheel Loader Engine Parts Fitting For 3126 950G 962G
Specifiion
| Category | Pump & Mtg Gp-Hydraulic Fan |
| Name | Piston Pump |
| Parts No | 191-2942 1912942 |
| Machine Number | 950G II 962G II |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| 1) Convert mechanical rotational power into high-pressure hydraulic power |
| Driven directly by the engine crankshaft, the pump transforms the engine’s rotary mechanical energy into pressurized hydraulic oil flow. This pressurized oil is the sole power source to drive the radiator cooling fan motor of the wheel loader’s engine cooling circuit. |
| 2) Automatically adjust fan speed to control engine temperature (key variable displacement function) |
| This is its most critical functional feature: |
| The pump’s internal swash plate changes displacement volume based on engine coolant temperature signals sent by the ECU. |
| When engine temperature rises: pump increases oil output flow → fan motor spins faster → radiator heat dissipation improves, preventing engine overheating. |
| When engine runs cold at startup: pump reduces flow output to slow the fan, which shortens warm-up time, cuts fuel waste and lowers unnecessary noise. |
| 3) Maintain stable hydraulic pressure for the independent cooling loop |
| It builds and holds a constant high working pressure (max 350 bar / 5076 psi) for the closed fan hydraulic circuit. It eliminates pressure fluctuations caused by engine RPM changes or heavy-load operation, ensuring the cooling fan runs smoothly without stalling or surging. |
INTEGRATED TOOLCARRIER IT62G II
WHEEL LOADER 950G II 962G II
| 1939238 PUMP GP-WATER |
| 120H, 135H, 3126B, 561N, 938G II, 950G II, 953C, 962G II, 963C, D5N, D6N, IT38G II, IT62G II |
| 1396084 PUMP GP-GEAR |
| 938G, 950G, 962G, IT38G, IT62G |
| 2122269 PUMP GP-ENGINE OIL |
| 3126, 3126B, 322C, 325C, 325C FM, 543, 580B, 938G II, 950G II, 962G II, IT38G II |
| 1238388 PUMP GP-WATER |
| 3126, 322C, 322C FM, 938G, 950G, 962G, IT38G, IT62G |
| 3522154 PUMP GP-WATER |
| 3126, 322C, 322C FM, 938G, 950G, 962G, IT38G, IT62G |
| 7C4508 PUMP GP-WATER |
| 205B, 206B, 211B, 212B, 213B, 214B, 224B, 3114, 3116, 3126, 3126B, 3126E, 320 L, 320B, 322, 322 FM L, 322 LN, 322B, 322B L, 322B LN, 325, 325 L, 325 LN, 325B, 325B L, 35, 446, 446B, 446D, 45, 525B, 53... |
| 1192924 PUMP GP-ENGINE OIL |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 30/30, 3116, 3126, 320 L, 320B, 322, 322 FM L, 322 LN, 322B, 322B L, 322B LN, 325, 325 L, 325B, 325B L, 45, 55, 561M, 613C II, 928F, 928G, 938F, 938G, 950F, 950F... |
| 1435609 PUMP GP-WATER |
| 550, 570, 580, 938G, 950G, 962G, IT62G |
| 3522152 PUMP GP-WATER |
| 574, 938G, 950G, 962G, IT38G, IT62G |
| 2304176 PUMP GP-METERING |
| 950G II, 950H, 962G II, 962H, 966G II, 966H, 972G II, 972H, 988H, IT62G II, IT62H |
| 1898777 PUMP GP-ENGINE OIL |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12K, 12M, 135H, 135H NA, 140G, 140K, 140K 2, 140M, 160K, 30/30, 3116, 3126, 3126B, 3126E, 320B, 322B L, 322B LN, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L,... |
| 1593139 PUMP AS-WATER |
| 3116, 3126, 3126B, 3126E, 322C, 322C FM, 325C, 325C FM, 328D LCR, 329D L, 570B, 580B, 962G II, C7, M325C MH |
| 1483485 PUMP GP-ADDITIVE SPRAY |
| CB-335D |
| 2351401 PUMP GP-FUEL INJECTION |
| 365C, 365C L, 365C L MH, 374D L, 583T, 587T, 621B, 621G, 623G, 627F, 627G, 631D, 637D, 657E, 657G, 735, 740, 770, 770G, 777C, 777D, 777F, 777G, 824C, 824H, 825H, 826H, 854K, 980G, 980H, 992K, 993K, AD... |
| 9C1988 PUMP & MOUNTING GP |
| 225, 225D, 229, 231D |
| 2074512 PUMP AS-FUEL TRANSFER |
| 3516C, C27, C32, PM3412, PM3508, PM3512, PM3516 |
| 2976784 PUMP GP-GEAR |
| C11, C13, C27, C32, CX31-C13I, TH35-C11I, TH35-C13I, TH48-E70 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8R-8088 | [1] | SPACER (11.66X15.88X18-MM THK) | |
| 2 | 093-0386 | [2] | WASHER-PLATED (11X25X4.5-MM THK) | |
| 3 | 191-2942 Y | [1] | PUMP GP-PISTON (HYDRAULIC FAN) | |
| 4 | 245-7456 | [1] | ADAPTER | |
| 5 | 191-3678 | [1] | GEAR (50-TEETH) | |
| 6 | 191-3679 | [1] | BRACKET AS | |
| 8T-3490 M | [2] | NUT-WELD (M10X1.5-THD) | ||
| 7 | 2K-4821 | [1] | LOCKNUT (5/8-18-THD) | |
| 8 | 3D-0053 | [1] | BALL BEARING | |
| 9 | 3D-2824 | [1] | SEAL-O-RING | |
| 10 | 6V-8467 | [1] | SEAL-O-RING | |
| 11 | 8T-2883 | [1] | TEE | |
| 12 | 8T-4121 | [4] | WASHER-HARD (11X21X2.5-MM THK) | |
| 13 | 8T-4122 | [1] | WASHER-HARD (17X32X3.5-MM THK) | |
| 14 | 8T-4139 M | [2] | BOLT (M12X1.75X30-MM) | |
| 15 | 8T-4182 M | [1] | BOLT (M10X1.5X45-MM) | |
| 16 | 8T-4195 M | [2] | BOLT (M10X1.5X30-MM) | |
| 17 | 8T-4223 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 18 | 8T-4648 M | [2] | BOLT (M12X1.75X70-MM) | |
| 19 | 8T-6466 M | [1] | BOLT (M10X1.5X60-MM) | |
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
